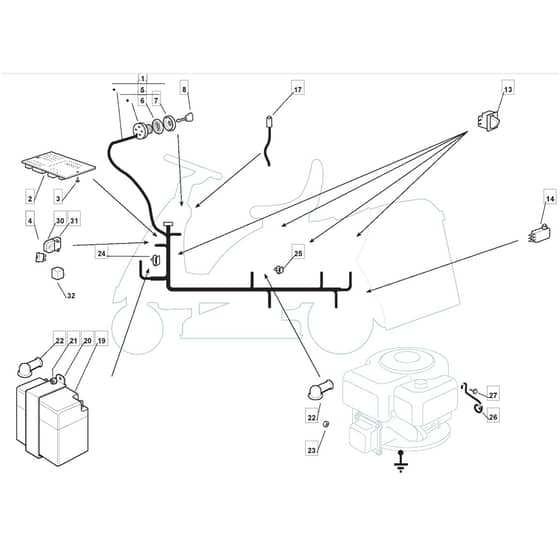

RM28 H - 2009 - 2T1534433/09G - Mountfield Ride On Mower Electrics Diagram

Description

Mountfield RM28 H Parts Diagram

Product Name - RM 28 H

Model Year - 2009

Model Type - F 72 Hydro

Art.N - 2T1534433/09G

Be the first to review this product

0 product questions

	Part No.	Details
1	MO184040126/2 Out of stock	Cables Ass.Y	£171.86 £143.22
2	MO125722415/1 Out of stock	Electronic Card	£111.68 £93.07
3	MO112727810/0 Out of stock	Screw	£1.48 £1.23
4	MO133340040/0 Out of stock	Fuse 10 A	£2.15 £1.79
4	MO133340036/0 Out of stock	Fuse 25 A	£1.61 £1.34
5	MO118450065/1 In stock	Starting Switch	£36.16 £30.13
6	MO118400861/0 Out of stock	Screwed Ring	£5.76 £4.80
7	MO118565351/0 Out of stock	Screwed Ring Protection	£6.70 £5.58
8	MO118210016/1 Out of stock	Starting Key	£12.18 £10.15
13	MO119410622/1 In stock	Microswitch	£6.29 £5.24
14	MO119410605/1 In stock	Microswitch	£37.49 £31.24
17	MO125065014/1 Out of stock	Card Allarm Signal Cable	£12.10 £10.08
19	MO118120068/0-1 In stock	Battery 12V 18Ah	£107.95 £89.96
20	MO327772099/1 Out of stock	Clamp	£4.45 £3.71
21	MO112155000/0 In stock	Nut	£1.48 £1.23
22	MO118564861/2 Out of stock	Protection	£6.43 £5.36
23	MO112361005/0 Out of stock	Nut	£4.02 £3.35
24	MO133320506/0 Out of stock	Fairlead	£1.34 £1.12
25	MO133320504/0 Out of stock	Fairlead	£1.87 £1.56
26	MO127430561/0 Out of stock	Spring	£2.28 £1.90
27	MO112735122/0 Out of stock	Screw	£1.56 £1.30
30	MO133215000/0 Out of stock	Cover	£3.35 £2.79
31	MO133500007/0 Out of stock	Fuse Carrier	£6.96 £5.80
