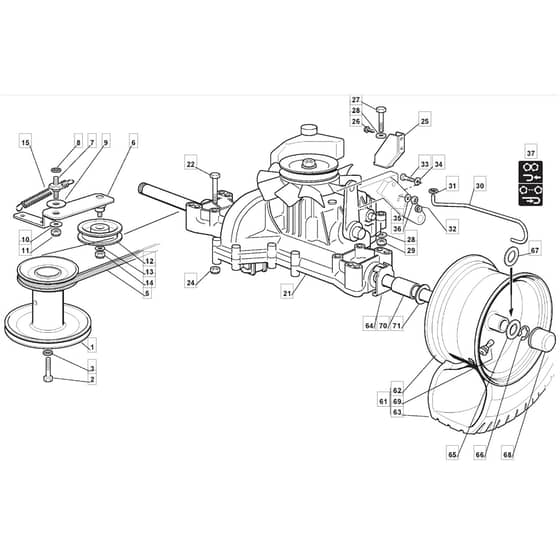

RM28 H - 2009 - 2T1532433/BM9 - Mountfield Ride On Mower Transmission Diagram

Name: RM28 H - 2009 - 2T1532433/BM9 - Mountfield Ride On Mower Transmission Diagram
SKU: rm28_h_2t1532433_bm9_transmission-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

RM28 H - 2009 - 2T1532433/BM9 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield RM28 H Parts Diagram

Product Name - RM 28 H

Model Year - 2009

Model Type - F 72 Hydro

Art.N - 2T1532433/BM9

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127604005/0 Out of stock	Pulley	£88.70 £73.92
2	MO112737310/0 Out of stock	Screw	£2.84 £2.37
3	MO112543000/0 Out of stock	Washer	£1.49 £1.24
5	MO135061404/0 Out of stock	Trapezoidal Belt	£31.40 £26.17
6	MO384317081/0 Out of stock	Lever	£13.48 £11.23
7	MO127510096/0 Out of stock	Fulcrum Pin	£4.60 £3.83
8	MO112540260/0 Out of stock	Washer	£1.49 £1.24
9	MO322672151/0 Out of stock	Antifriction Washer	£1.75 £1.46
10	MO325670011/0 Out of stock	Antifriction Washer	£1.49 £1.24
11	MO112155010/0 Out of stock	Nut	£2.04 £1.70
12	MO125601554/0 In stock	Pulley	£24.71 £20.59
13	MO112523060/0 In stock	Washer	£1.49 £1.24
14	MO112155000/0 In stock	Nut	£1.49 £1.24
15	MO122446402/1 Out of stock	Spring	£4.87 £4.06
21	MO118400965/0 Out of stock	Hydro Transaxle Group Tufftorq	£1,362.24 £1,135.20
22	MO112691800/0 Out of stock	Screw	£1.49 £1.24
24	MO112154210/0 In stock	Nut	£1.63 £1.36
26	MO112735122/0 Out of stock	Screw	£1.49 £1.24
27	MO112691200/0 Out of stock	Screw	£1.63 £1.36
28	MO112521350/0 In stock	Washer	£1.49 £1.24
30	MO127034069/0 Out of stock	Rod	£3.65 £3.04
31	MO112000930/0 In stock	Benzing Ring	£1.49 £1.24
32	MO118564512/0 Out of stock	Fairlead	£1.36 £1.13
33	MO112793301/0 Out of stock	Screw	£1.49 £1.24
61	MO384680067/0 Out of stock	Rear Wheel	£120.95 £100.79
62	MO184044001/0 Out of stock	Rear Wheel Rimm	£73.14 £60.95
63	MO125590020/0 Out of stock	Rear Tyre (Deli)	£66.37 £55.31
64	MO325670025/0 Out of stock	Washer	£3.92 £3.27
65	MO125670005/2 Out of stock	Washer	£3.92 £3.27
66	MO112001010/0 Out of stock	Benzing Ring	£1.75 £1.46
67	MO125670006/0 Out of stock	Washer	£1.49 £1.24
68	MO122110230/0 Out of stock	Hub Cover	£1.49 £1.24
69	MO125950000/0 Out of stock	Valve	£5.15 £4.29
70	MO125160031/0 Out of stock	Spacer	£3.25 £2.71
