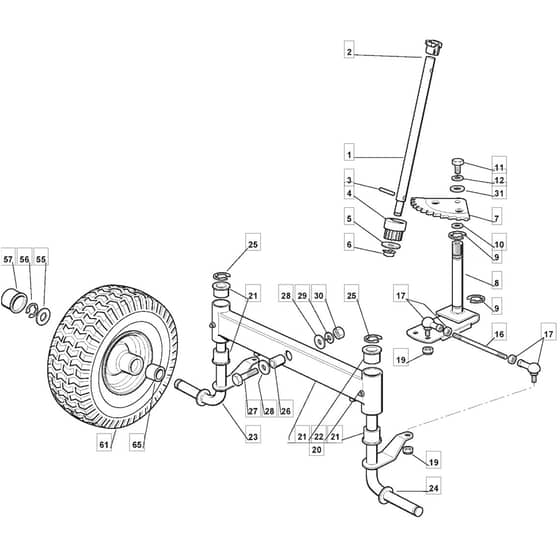

RM28 H - 2009 - 2T1532433/BM9 - Mountfield Ride On Mower Steering Diagram

RM28 H - 2009 - 2T1532433/BM9 - Mountfield Ride On Mower Steering Diagram
RM28 H - 2009 - 2T1532433/BM9 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield RM28 H Parts Diagram

Product Name - RM 28 H

Model Year - 2009

Model Type - F 72 Hydro

Art.N - 2T1532433/BM9

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Steering Column MO127520050/0
Steering Column
 Out of stock
£25.60 £21.33

  2 Bushing MO325038004/0
Bushing
 Out of stock
£2.30 £1.92

  3 Dowel Pin MO112622650/0
Dowel Pin
 Out of stock
£1.63 £1.36

  4 Pinion MO127570050/0
Pinion
 Out of stock
£10.70 £8.92

  5 Washer MO112521370/0
Washer
 Out of stock
£1.49 £1.24

  6 Plate MO112436030/0
Plate
 Out of stock
£1.75 £1.46

  7 Steering Sector MO384735551/0
Steering Sector
 Out of stock
£26.54 £22.12

  8 Shaft MO384000501/0
Shaft
 Out of stock
£33.86 £28.22

  10 Washer MO112520031/0
Washer
 Out of stock
£1.49 £1.24

  11 Screw MO112793102/0
Screw
 In stock
£1.49 £1.24

  12 Grower MO112583500/0
Grower
 Out of stock
£1.49 £1.24

  16 Tie Rod MO384840051/0
Tie Rod
 Out of stock
£32.51 £27.09

  19 Nut MO112156602/0
Nut
 In stock
£1.36 £1.13

  20 Complete Forecarriege Equalizer Ass.Y MO184034057/0
Complete Forecarriege Equalizer Ass.Y
 Out of stock
£104.29 £86.91

  21 Bushing MO125034002/1
Bushing
 Out of stock
£3.65 £3.04

  22 Grease Dispenser MO112379511/0
Grease Dispenser
 Out of stock
£1.49 £1.24

  23 Right Stub Axle MO384230401/1
Right Stub Axle
 Out of stock
£48.76 £40.63

  24 Left Stub Axle MO384230403/1
Left Stub Axle
 Out of stock
£48.76 £40.63

  25 Benzing Ring MO112001000/0
Benzing Ring
 Out of stock
£1.75 £1.46

  26 Spacer MO125160016/1
Spacer
 Out of stock
£5.96 £4.97

  27 Screw MO112692695/0
Screw
 Out of stock
£1.49 £1.24

  28 Washer MO112523100/0
Washer
 Out of stock
£1.90 £1.58

  29 Grower MO112587100/0
Grower
 Out of stock
£1.49 £1.24

  30 Nut MO112295300/0
Nut
 Out of stock
£1.49 £1.24

  31 Washer MO112521350/0
Washer
 Out of stock
£1.49 £1.24

  55 Washer MO125670005/2
Washer
 Out of stock
£3.92 £3.27

  57 Hub Cover MO122110230/0
Hub Cover
 In stock
£1.49 £1.24


Description

Mountfield RM28 H Parts Diagram

Product Name - RM 28 H

Model Year - 2009

Model Type - F 72 Hydro

Art.N - 2T1532433/BM9
