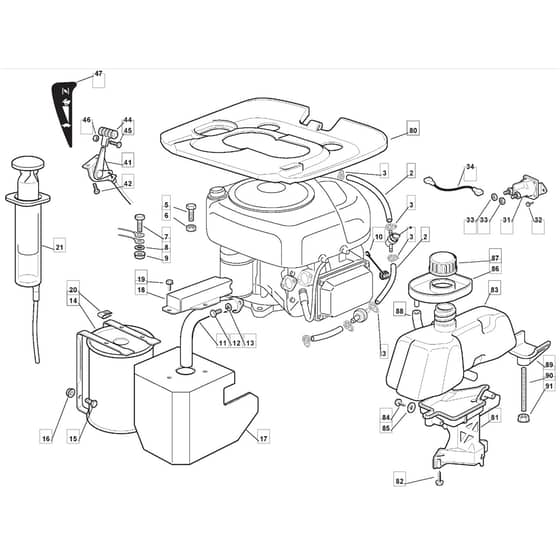

RM28 H - 2009 - 2T1532433/BM9 - Mountfield Ride On Mower B&S Engine Diagram

Name: RM28 H - 2009 - 2T1532433/BM9 - Mountfield Ride On Mower B&S Engine Diagram
SKU: rm28_h_2t1532433_bm9_b_s_engine-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

RM28 H - 2009 - 2T1532433/BM9 - Mountfield Ride On Mower B&S Engine Diagram

Description

Mountfield RM28 H Parts Diagram

Product Name - RM 28 H

Model Year - 2009

Model Type - F 72 Hydro

Art.N - 2T1532433/BM9

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325869035/1 Out of stock	Connecting Tube	£9.07 £7.56
3	MO118375062/0 Out of stock	Fair Led	£1.75 £1.46
5	MO112691100/0 Out of stock	Screw	£1.49 £1.24
7	MO112691115/0 Out of stock	Screw	£1.49 £1.24
8	MO112540260/0 Out of stock	Washer	£1.49 £1.24
10	MO125430239/1 Out of stock	Spring	£1.90 £1.58
11	MO118738225/0 Out of stock	Exhaust Pipe	£54.18 £45.15
12	MO112737450/0 Out of stock	Screw	£3.65 £3.04
13	MO112583500/0 Out of stock	Grower	£1.49 £1.24
14	MO382750006/2 Out of stock	Muffler From 01-9-2005 To 31-8-2013	£154.40 £128.67
15	MO112793102/0 In stock	Screw	£1.49 £1.24
16	MO112154210/0 In stock	Nut	£1.63 £1.36
17	MO384598081/1 Out of stock	Muffler Protection	£33.86 £28.22
18	MO327600137/0 Out of stock	Protection	£5.28 £4.40
19	MO112729601/1 Out of stock	Screw	£1.48 £1.23
20	MO112437504/0 Out of stock	Plate	£1.63 £1.36
21	MO118718000/0 Out of stock	Oil Emptying Syringe	£15.30 £12.75
31	MO118736113/0 In stock	Starter Relay	£36.56 £30.47
32	MO112735110/0 Out of stock	Screw	£1.49 £1.24
33	MO9743-5121-32 Out of stock	Nut	£1.36 £1.13
34	MO127065050/0 Out of stock	Cable	£6.10 £5.08
41	MO184000250/1 Out of stock	Accelerator	£29.80 £24.83
42	MO125943012/0 Out of stock	Screw	£1.49 £1.24
44	MO125394501/0 Out of stock	Knob	£1.49 £1.24
45	MO112726388/0 Out of stock	Screw	£1.49 £1.24
46	MO112290800/0 Out of stock	Nut	£1.49 £1.24
47	MO114357425/1 Out of stock	Label	£1.39 £1.16
80	MO327110306/2 Out of stock	Engine Cover Black From 01-9-2003	£19.37 £16.14
81	MO327787062/0 Out of stock	Support	£26.75 £22.29
82	MO112735410/0 Out of stock	Screw	£1.49 £1.24
83	MO127733003/1 Out of stock	Fuel Tank	£59.59 £49.66
85	MO112523040/0 In stock	Washer	£1.49 £1.24
86	MO327600061/2 Out of stock	Guard	£3.53 £2.94
87	MO125795000/1 In stock	Cap	£7.45 £6.21
88	MO325869014/1 Out of stock	Fuel Pipe L410	£7.32 £6.10
89	MO327787063/0 Out of stock	Support	£1.36 £1.13
90	MO127510118/0 Out of stock	Pin	£3.38 £2.82
91	MO112293201/0 In stock	Nut	£1.63 £1.36
