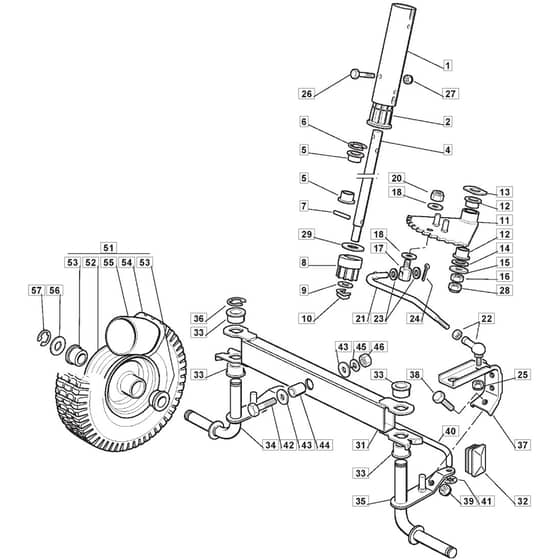

RM25 - 2009 - 2T0114433/09 - Mountfield Ride On Mower Steering Diagram

Name: RM25 - 2009 - 2T0114433/09 - Mountfield Ride On Mower Steering Diagram
SKU: rm25_2t0114433_09_steering-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

RM25 - 2009 - 2T0114433/09 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield RM25 Parts Diagram

Product Name - RM 25

Model Year - 2009

Model Type - EL 63

Art.N - 2T0114433/09

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127340305/1 Out of stock	Columm Extension	£21.02 £17.52
2	MO127047005/1 Out of stock	Bushing	£5.35 £4.46
4	MO127520052/0LC Out of stock	Steering Column	£64.27 £53.56
6	MO112001010/0 Out of stock	Benzing Ring	£1.74 £1.45
7	MO112622650/0 Out of stock	Dowel Pin	£1.61 £1.34
8	MO127570050/0 Out of stock	Pinion	£10.58 £8.82
9	MO112521370/0 Out of stock	Washer	£1.48 £1.23
10	MO112436030/0 In stock	Plate	£1.74 £1.45
11	MO384735553/1 Out of stock	Ring Gear	£31.82 £26.52
14	MO322672152/0 Out of stock	Antifriction Washer	£1.52 £1.27
15	MO112523070/0 Out of stock	Washer	£1.48 £1.23
16	MO112293200/0 In stock	Nut	£1.48 £1.23
17	MO125510056/1 Out of stock	Pin	£5.09 £4.24
20	MO112156602/0 In stock	Nut	£1.34 £1.12
21	MO127034066/2 Out of stock	Steering Control Rod	£44.18 £36.82
22	MO122746601/0 Out of stock	Joint	£18.20 £15.17
23	MO325670008/1 Out of stock	Washer	£1.66 £1.38
24	MO112141418/0 In stock	Cotter Pin	£1.48 £1.23
26	MO112689515/0 Out of stock	Screw	£1.48 £1.23
27	MO112154510/0 In stock	Nut	£1.48 £1.23
29	MO327670054/0 Out of stock	Washer	£12.95 £10.79
32	MO118737852/0 Out of stock	Cap	£1.48 £1.23
33	MO127047004/0 Out of stock	Bushing	£2.47 £2.06
34	MO384230405/0 Out of stock	Right Stub Axle	£48.37 £40.31
35	MO384230407/0 Out of stock	Left Stub Axle	£47.10 £39.25
36	MO112000970/0 Out of stock	Ring (Benzing)	£1.48 £1.23
37	MO327787041/0 Out of stock	Tie Rod	£3.95 £3.29
38	MO112793102/0 In stock	Screw	£1.48 £1.23
39	MO112155000/0 In stock	Nut	£1.48 £1.23
40	MO127840051/0 Out of stock	Tie Rod	£31.32 £26.10
41	MO112604899/0 In stock	Crown Fastener	£1.48 £1.23
42	MO112692695/0 Out of stock	Screw	£1.48 £1.23
43	MO112523100/0 Out of stock	Washer	£1.87 £1.56
44	MO125160016/1 Out of stock	Spacer	£5.89 £4.91
45	MO112587100/0 Out of stock	Grower	£1.48 £1.23
46	MO112295300/0 Out of stock	Nut	£1.48 £1.23
51	MO184680056/1 Out of stock	Front Wheel	£70.02 £58.35
52	MO184044002/0 Out of stock	Front Rim Ass.Y	£36.92 £30.77
53	MO127045070/0 Out of stock	Bushing	£2.94 £2.45
54	MO127590058/0 Out of stock	Tyre 4.10.3.50-4 Kings	£45.83 £38.19
55	MO127590056/0 Out of stock	Inner Tube	£10.10 £8.42
56	MO112521390/0 Out of stock	Washer	£1.74 £1.45
