RM1228 H - 2010 - 2T0210233/MF0 - Mountfield Ride On Mower Controls Diagram

Name: RM1228 H - 2010 - 2T0210233/MF0 - Mountfield Ride On Mower Controls Diagram
SKU: rm1228_h_2t0210233_mf0_controls-group
Price: 0.74 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

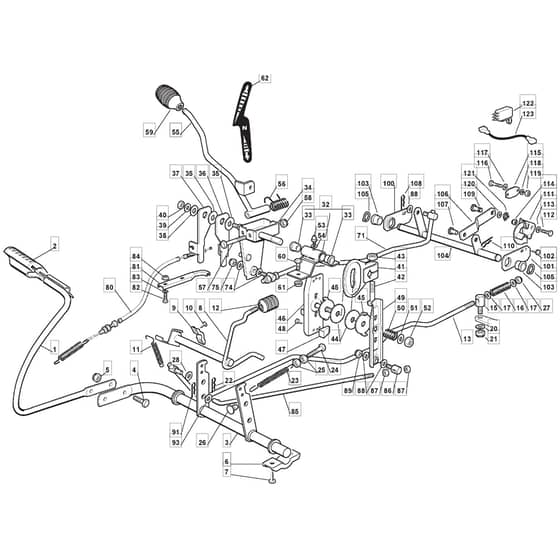

RM1228 H - 2010 - 2T0210233/MF0 - Mountfield Ride On Mower Controls Diagram

Description

Mountfield RM1228 H Parts Diagram

Product Name - RM 1228H

Model Year - 2010

Model Type - F 72 Hydro

Art.N - 2T0210233/MF0

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384503001/0 Out of stock	Pedal	£23.04 £19.20
2	MO125110267/0 Out of stock	Clamp Cover	£3.61 £3.01
3	MO384001015/1 Out of stock	Axle	£44.56 £37.13
4	MO112793301/0 Out of stock	Screw	£1.48 £1.23
6	MO327546015/2 Out of stock	Plate	£1.66 £1.38
7	MO112731350/0 Out of stock	Screw	£1.48 £1.23
8	MO384001011/2 Out of stock	Axle	£12.22 £10.18
9	MO325547049/0 Out of stock	Plate	£3.06 £2.55
10	MO112731601/0 Out of stock	Screw	£1.87 £1.56
11	MO127430552/0 Out of stock	Spring	£1.48 £1.23
12	MO127395050/1 Out of stock	Knob	£2.81 £2.34
13	MO384002088/0 Out of stock	Rod	£34.37 £28.64
15	MO112295200/0 Out of stock	Nut	£1.34 £1.12
16	MO127430588/0 Out of stock	Spring	£6.77 £5.64
17	MO112521360/0 In stock	Washer	£1.48 £1.23
20	MO112523050/0 In stock	Washer	£1.48 £1.23
23	MO125430210/1 Out of stock	Brake Spring	£2.54 £2.12
24	MO122943005/0 Out of stock	Screw	£2.41 £2.01
25	MO112293200/0 In stock	Nut	£1.48 £1.23
26	MO127275000/0 Out of stock	Grommet	£2.94 £2.45
27	MO112156602/0 In stock	Nut	£1.34 £1.12
28	MO325670011/0 Out of stock	Antifriction Washer	£1.66 £1.38
32	MO384773568/0 Out of stock	Stirrup	£36.92 £30.77
33	MO127045080/0 Out of stock	Bushing To 31-8-2012	£4.96 £4.13
34	MO384773561/1 Out of stock	Control Lever Bracket	£42.01 £35.01
35	MO322672151/0 Out of stock	Antifriction Washer	£1.52 £1.27
36	MO327772101/0 Out of stock	Clamp	£2.42 £2.02
37	MO327772103/0 Out of stock	Clamp	£2.04 £1.70
38	MO322672152/0 Out of stock	Antifriction Washer	£1.52 £1.27
39	MO112523060/0 In stock	Washer	£1.48 £1.23
40	MO112155010/0 Out of stock	Nut	£2.00 £1.67
41	MO327734055/0 Out of stock	Sector	£2.93 £2.44
42	MO112794900/0 Out of stock	Screw	£1.61 £1.34
43	MO112155020/0 Out of stock	Nut	£1.61 £1.34
44	MO127158000/0 Out of stock	Plate	£19.96 £16.63
45	MO327670053/0 Out of stock	Washer	£1.66 £1.38
46	MO384773565/0 Out of stock	Clamp	£15.79 £13.16
47	MO127063020/0 Out of stock	Cam	£1.48 £1.23
48	MO112735110/0 Out of stock	Screw	£1.48 £1.23
49	MO384773563/0 Out of stock	Lever	£5.99 £4.99
50	MO127430560/0 Out of stock	Clutch Spring	£14.53 £12.11
51	MO325670008/1 Out of stock	Washer	£1.66 £1.38
53	MO112379511/0 Out of stock	Grease Dispenser	£1.48 £1.23
54	MO112521330/0 Out of stock	Washer To 31-8-2012	£1.48 £1.23
55	MO384317101/0 Out of stock	Lever	£28.01 £23.34
56	MO125430226/0 Out of stock	Spring	£2.15 £1.79
57	MO112692050/0 In stock	Screw	£1.74 £1.45
58	MO112155000/0 In stock	Nut	£1.48 £1.23
59	MO182394508/0 Out of stock	Knob	£7.90 £6.58
61	MO112293201/0 In stock	Nut	£1.61 £1.34
62	MO114357702/1 Out of stock	Label	£2.28 £1.90
71	MO384002092/0 Out of stock	Rod	£33.10 £27.58
80	MO184207101/1 Out of stock	Clutch Lever Wire	£31.82 £26.52
81	MO327772105/0 Out of stock	Stirrup	£1.66 £1.38
82	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
84	MO112292102/0 In stock	Nut	£1.61 £1.34
85	MO127034074/0 Out of stock	Rod	£19.28 £16.07
86	MO125510040/2 Out of stock	Pin	£5.50 £4.58
100	MO327546059/0 Out of stock	Plate	£4.72 £3.93
101	MO327546061/0 Out of stock	Plate	£4.72 £3.93
102	MO112735122/0 Out of stock	Screw To 31-8-2012	£1.56 £1.30
102	MO112735120/0 Out of stock	Screw From 01-9-2012	£1.48 £1.23
103	MO125040614/0 Out of stock	Bushing	£1.48 £1.23
104	MO384001029/0 Out of stock	Axle	£20.11 £16.76
105	MO112608900/0 Out of stock	Seeger	£1.27 £1.06
106	MO327034089/0 Out of stock	Rod	£11.84 £9.87
107	MO127510111/0 Out of stock	Pin	£2.41 £2.01
108	MO124487997/0 Out of stock	Cotter Pin	£1.48 £1.23
109	MO125510085/1 Out of stock	Pin	£1.48 £1.23
111	MO327063023/0 Out of stock	Cam	£4.33 £3.61
112	MO112793102/0 In stock	Screw	£1.48 £1.23
113	MO112521331/0 Out of stock	Washer From 01-9-2013	£1.48 £1.23
113	MO112521350/0 Out of stock	Washer To 31-8-2013	£1.48 £1.23
114	MO112581100/0 Out of stock	Grower To 31-8-2012	£1.27 £1.06
115	MO327546019/0 Out of stock	Neutral Switch Fixing Plate	£1.40 £1.17
116	MO112735602/0 Out of stock	Screw	£1.48 £1.23
117	MO112540020/0 Out of stock	Washer	£1.48 £1.23
119	MO112290791/0 Out of stock	Nut	£1.48 £1.23
121	MO112436050/0 In stock	Plate	£1.74 £1.45
122	MO119410609/1LC In stock	Microswitch	£25.85 £21.54
123	MO125065025/0 Out of stock	Cable	£8.17 £6.81
