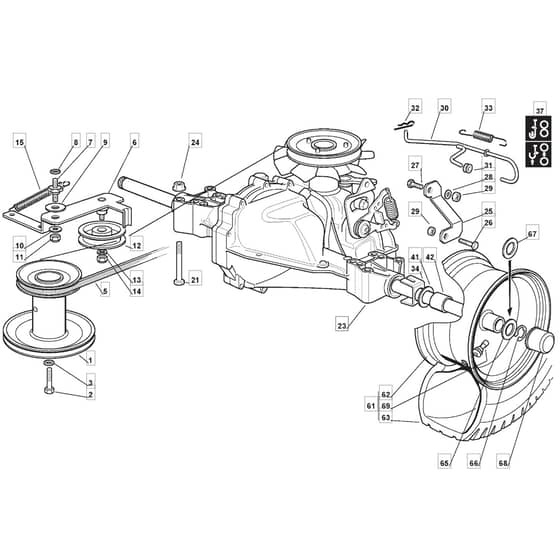

RM1228 H - 2010 - 2T0210233/M10 - Mountfield Ride On Mower Transmission Diagram

Name: RM1228 H - 2010 - 2T0210233/M10 - Mountfield Ride On Mower Transmission Diagram
SKU: rm1228_h_2t0210233_m10_transmission-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

RM1228 H - 2010 - 2T0210233/M10 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield RM1228 H Parts Diagram

Product Name - RM 12.28 H

Model Year - 2010

Model Type - F 72 Hydro

Art.N - 2T0210233/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127604005/0 Out of stock	Pulley	£87.71 £73.09
2	MO112737310/0 Out of stock	Screw	£2.81 £2.34
3	MO112543000/0 Out of stock	Washer	£1.48 £1.23
5	MO135061407/0 Out of stock	Belt	£29.28 £24.40
6	MO384317067/1 Out of stock	Lever	£16.80 £14.00
7	MO127510096/0 Out of stock	Fulcrum Pin	£4.55 £3.79
8	MO112540260/0 Out of stock	Washer	£1.48 £1.23
9	MO322672151/0 Out of stock	Antifriction Washer	£1.52 £1.27
10	MO325670011/0 Out of stock	Antifriction Washer	£1.66 £1.38
11	MO112155010/0 Out of stock	Nut	£2.00 £1.67
12	MO125601554/0 In stock	Pulley	£24.43 £20.36
13	MO112523060/0 In stock	Washer	£1.48 £1.23
14	MO112155000/0 In stock	Nut	£1.48 £1.23
15	MO122446402/1 Out of stock	Spring	£4.82 £4.02
21	MO112691800/0 Out of stock	Screw	£1.48 £1.23
23	MO118400976/2 Out of stock	Transmission (Hydro-Gear T2-Bdbe-2X1A-16X1)	£890.47 £742.06
24	MO112154210/0 In stock	Nut	£1.61 £1.34
25	MO327787075/0 Out of stock	Support	£11.08 £9.23
26	MO112691400/0 Out of stock	Screw	£1.48 £1.23
27	MO112793102/0 In stock	Screw	£1.48 £1.23
28	MO112521350/0 Out of stock	Washer	£1.48 £1.23
30	MO384002087/0 Out of stock	Rod	£30.55 £25.46
31	MO118564512/0 Out of stock	Fairlead	£1.34 £1.12
32	MO124487997/0 Out of stock	Cotter Pin	£1.48 £1.23
33	MO125430213/0 Out of stock	Spring	£1.61 £1.34
37	MO114365167/0 Out of stock	Label	£1.48 £1.23
41	MO125670006/0 Out of stock	Washer	£1.48 £1.23
42	MO127160059/0 Out of stock	Spacer	£5.35 £4.46
61	MO384680067/0 Out of stock	Rear Wheel	£120.95 £100.79
62	MO184044001/0 Out of stock	Rear Wheel Rimm	£71.29 £59.41
63	MO125590020/0 Out of stock	Rear Tyre (Deli)	£65.62 £54.68
65	MO125670005/2 Out of stock	Washer	£3.89 £3.24
66	MO112001010/0 Out of stock	Benzing Ring	£1.74 £1.45
68	MO122110230/0 In stock	Hub Cover	£1.48 £1.23
69	MO125950000/0 Out of stock	Valve	£5.09 £4.24
