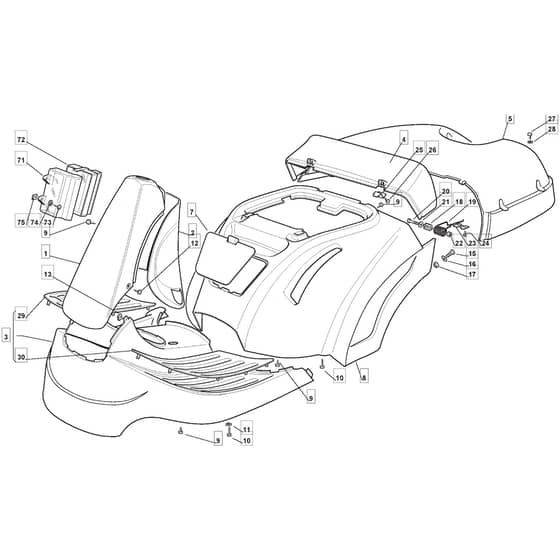

RM1228 - 2010 - 2T0110233/M10 - Mountfield Ride On Mower Body Diagram

Name: RM1228 - 2010 - 2T0110233/M10 - Mountfield Ride On Mower Body Diagram
SKU: rm1228_2t0110233_m10_body-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

RM1228 - 2010 - 2T0110233/M10 - Mountfield Ride On Mower Body Diagram

Description

Mountfield RM1228 Parts Diagram

Product Name - RM 12.28

Model Year - 2010

Model Type - F 72

Art.N - 2T0110233/M10

Be the first to review this product

0 product questions

	Part No.	Details
2	MO327600091/1 Out of stock	Rear Steering Column Protection	£24.19 £20.16
4	MO327110302/3 Out of stock	Red Fixed Grass-Catcher Cover	£43.28 £36.07
5	MO327110303/2 Out of stock	Grass-Catcher Cover	£71.29 £59.41
7	MO327109501/2 Out of stock	Front Cover	£11.08 £9.23
8	MO384110100/4 Out of stock	Red Wheels Cover From 01-9-2003	£165.50 £137.92
10	MO112735410/0 Out of stock	Screw	£1.48 £1.23
11	MO112523040/0 In stock	Washer	£1.48 £1.23
12	MO112735598/0 Out of stock	Screw From 01-9-2014	£1.87 £1.56
12	MO112727790/0 Out of stock	Screw To 31-8-2014	£1.66 £1.38
13	MO112437503/0 Out of stock	Plate	£1.87 £1.56
15	MO112791200/1 Out of stock	Screw	£1.34 £1.12
18	MO127047003/0 Out of stock	Bushing	£1.61 £1.34
19	MO127430551/1 Out of stock	Spring	£2.68 £2.23
20	MO112691200/0 Out of stock	Screw	£1.61 £1.34
21	MO112523070/0 Out of stock	Washer	£1.48 £1.23
22	MO112155000/0 In stock	Nut	£1.48 £1.23
23	MO327546001/0 Out of stock	Plate	£1.40 £1.17
24	MO112735402/0 In stock	Screw To 31-8-2014	£1.48 £1.23
24	MO112735406/0 Out of stock	Screw From 01-9-2014	£1.48 £1.23
25	MO327546003/0 Out of stock	Plate	£1.66 £1.38
27	MO112729601/1 Out of stock	Screw	£1.48 £1.23
28	MO112521331/0 Out of stock	Washer	£1.48 £1.23
29	MO127110304/0 Out of stock	Right Footboard Cover	£9.37 £7.81
30	MO127110305/1 Out of stock	Left Footboard Cover	£9.37 £7.81
71	MO125600020/0 Out of stock	Upper Guard	£11.78 £9.82
72	MO125600021/1 Out of stock	Lower Guard	£12.72 £10.60
73	MO112728460/0 Out of stock	Screw	£1.48 £1.23
74	MO112521320/0 Out of stock	Washer	£1.48 £1.23
75	MO112437502/0 Out of stock	Plate	£1.48 £1.23
