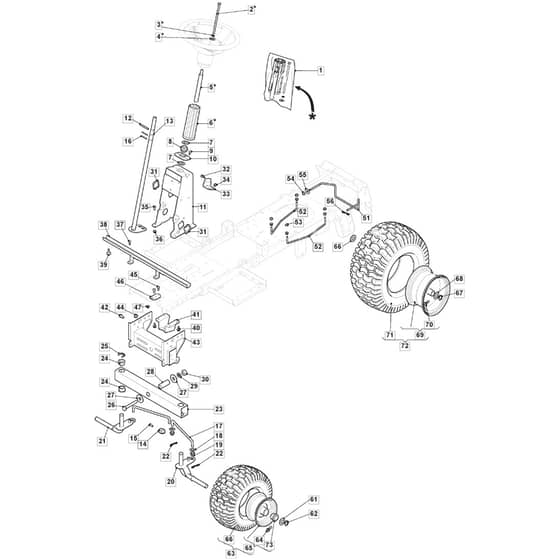

R27M - 2019 - 2T0050286/CAS - Mountfield Ride On Mower Steering Diagram

R27M - 2019 - 2T0050286/CAS - Mountfield Ride On Mower Steering Diagram
R27M - 2019 - 2T0050286/CAS - Mountfield Ride On Mower Steering Diagram

Description

Mountfield R27M Parts Diagram

Product Name - R27 M

Model Year - 2019

Model Type - MJ 66 E

Art.N - 2T0050286/CAS

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  3 Washer MO112540260/0
Washer
 Out of stock
£1.49 £1.24

  4 Washer MO112523070/0
Washer
 Out of stock
£1.49 £1.24

  6 Steering Wheel Support MO384180219/0
Steering Wheel Support
 Out of stock
£73.14 £60.95

  7 Washer MO125670023/0
Washer
 Out of stock
£1.75 £1.46

  8 Joint MO122746617/0
Joint
 Out of stock
£2.30 £1.92

  9 Screw MO112735122/0
Screw
 Out of stock
£1.49 £1.24

  10 Joint Support MO327787091/0
Joint Support
 Out of stock
£4.33 £3.61

  11 Front Bracket Support MO384773575/0
Front Bracket Support
 Out of stock
£36.67 £30.56

  12 Spring Pin 6X50 MO112620300/0
Spring Pin 6X50
 In stock
£1.75 £1.46

  13 Steering Column MO384520051/0
Steering Column
 Out of stock
£43.33 £36.11

  14 Bushing MO327045074/0
Bushing
 Out of stock
£2.58 £2.15

  15 Screw MO125943004/0
Screw
 Out of stock
£1.75 £1.46

  16 Elastic Pin MO112620210/0
Elastic Pin
 In stock
£1.49 £1.24

  17 Rod MO127034091/0
Rod
 In stock
£8.20 £6.83

  18 Washer MO112521350/0
Washer
 Out of stock
£1.49 £1.24

  19 Bushing MO327045072/0
Bushing
 In stock
£2.30 £1.92

  20 Left Stub Axle for wheels 11 MO384230411/0
Left Stub Axle for wheels 11"-13".13"-15"
 Out of stock
£52.42 £43.68

  21 Right Stub Axle for wheels 11 MO384230409/0
Right Stub Axle for wheels 11"-13".13"-15"
 Out of stock
£52.42 £43.68

  22 Cotter Pin MO124487995/0
Cotter Pin
 Out of stock
£1.49 £1.24

  23 Tube MO327869061/0
Tube
 Out of stock
£29.80 £24.83

  24 Bushing MO127047019/0
Bushing
 Out of stock
£3.65 £3.04

  26 Screw MO112794950/0
Screw
 Out of stock
£3.79 £3.16

  27 Washer MO112523080/0
Washer
 In stock
£1.49 £1.24

  28 Spacer MO127160062/0
Spacer
 Out of stock
£6.91 £5.76

  29 Washer MO112585100/0
Washer
 Out of stock
£1.49 £1.24

  30 Nut MO112295200/0
Nut
 Out of stock
£1.36 £1.13

  33 Front Bracket MO327772199/0
Front Bracket
 Out of stock
£4.74 £3.95

  38 Footboard Support MO384783061/0
Footboard Support
 Out of stock
£25.60 £21.33

  39 Grommet MO127275000/0
Grommet
 Out of stock
£2.98 £2.48

  40 Screw MO112735122/1
Screw
 Out of stock
£1.49 £1.24

  41 Bracket From 01-9-2013 MO327772165/1
Bracket From 01-9-2013
 Out of stock
£7.86 £6.55

  42 Screw MO112792611/0
Screw
 Out of stock
£1.49 £1.24

  44 Nut MO112293201/0
Nut
 In stock
£1.63 £1.36

  45 Screw MO112791200/1
Screw
 Out of stock
£1.34 £1.12

  46 Bracket MO327772209/0
Bracket
 Out of stock
£3.92 £3.27

  51 Belt Guide MO127294009/0
Belt Guide
 Out of stock
£17.41 £14.51

  52 Belt Guide MO127294010/1
Belt Guide
 Out of stock
£19.37 £16.14

  53 Nut MO112292102/0
Nut
 In stock
£1.63 £1.36

  54 Nut MO112154510/0
Nut
 In stock
£1.49 £1.24

  55 Washer MO112521330/0
Washer
 Out of stock
£1.49 £1.24

  56 Cotter Pin MO124487997/0
Cotter Pin
 Out of stock
£1.49 £1.24

  61 Washer MO112521390/0
Washer
 Out of stock
£1.75 £1.46

  62 Ring (Benzing) MO112000970/0
Ring (Benzing)
 Out of stock
£1.49 £1.24

  63 Front Wheel 13 MO384680074/0
Front Wheel 13"
 Out of stock
£90.74 £75.62

  65 Front Wheel Rimm 13 MO184044015/0
Front Wheel Rimm 13"
 Out of stock
£51.47 £42.89

  66 Tyre 13X5.00-6 P512 Wanda 13 MO125590018/0
Tyre 13X5.00-6 P512 Wanda 13"
 Out of stock
£44.44 £37.03

  67 Benzing Ring MO112001010/0
Benzing Ring
 Out of stock
£1.75 £1.46

  68 Washer MO125670005/2
Washer
 Out of stock
£3.92 £3.27

  69 Rimm MO184044013/0
Rimm
 Out of stock
£50.54 £42.12

  70 Valve MO125950000/0
Valve
 Out of stock
£5.15 £4.29

  71 Tyre 15X5.50-6 P512 Wanda 15 MO127590068/0
Tyre 15X5.50-6 P512 Wanda 15"
 Out of stock
£55.52 £46.27

  72 Rear Wheel 15 MO384680076/0
Rear Wheel 15"
 Out of stock
£110.46 £92.05

  73 Bearing MO127122250/0
Bearing
 Out of stock
£10.09 £8.41


Description

Mountfield R27M Parts Diagram

Product Name - R27 M

Model Year - 2019

Model Type - MJ 66 E

Art.N - 2T0050286/CAS
