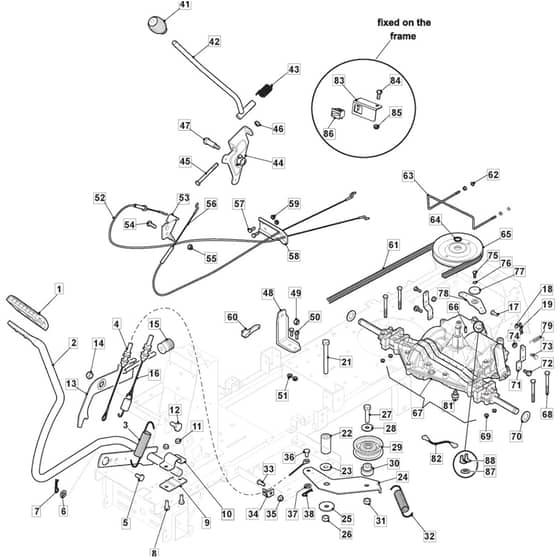

R27M - 2016-2017 - 2T0070486/SF - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield R27M Parts Diagram

Product Name - R27 M

Model Year - 2016-2017

Model Type - MJ 66 E

Art.N - 2T0070486/SF

Engine Model - 5750 E.S. 224cc

Be the first to review this product

0 product questions

	Part No.	Details
2	MO384503013/0 Out of stock	Pedal	£49.66 £41.38
4	MO384004607/1 Out of stock	Tightener Cable	£21.38 £17.82
9	MO325785350/0 Out of stock	Support	£1.66 £1.38
10	MO325547231/1 Out of stock	Plate	£4.20 £3.50
11	MO112154510/0 In stock	Nut	£1.48 £1.23
12	MO122524970/3 Out of stock	Pin	£1.61 £1.34
13	MO384002097/0 Out of stock	Brake Control Rod	£13.75 £11.46
15	MO127395050/1 Out of stock	Knob	£2.81 £2.34
16	MO384004603/1 Out of stock	Cable. Thread Engine Brake	£24.19 £20.16
18	MO325670011/0 Out of stock	Antifriction Washer	£1.66 £1.38
21	MO112691900/0 Out of stock	Screw	£1.74 £1.45
22	MO127160065/0 Out of stock	Spacer	£6.16 £5.13
23	MO122041980/0 Out of stock	Bushing	£1.48 £1.23
24	MO384307003/0 Out of stock	Tightener Lever	£13.50 £11.25
25	MO112523070/0 Out of stock	Washer	£1.48 £1.23
27	MO112691115/0 Out of stock	Screw	£1.48 £1.23
28	MO112523060/0 In stock	Washer	£1.48 £1.23
29	MO127604015/0 In stock	Pulley	£13.19 £10.99
30	MO127160064/0 Out of stock	Spacer	£4.82 £4.02
32	MO127430594/0 Out of stock	Spring	£5.35 £4.46
34	MO322806619/0 Out of stock	Support	£4.45 £3.71
36	MO127510120/1-1 Out of stock	Pin	£4.15 £3.46
37	MO112521350/0 In stock	Washer	£1.48 £1.23
38	MO124487997/0 Out of stock	Cotter Pin	£1.48 £1.23
41	MO125394510/0 Out of stock	Knob	£4.02 £3.35
42	MO384317097/0 Out of stock	Lever. Speed Drive Control	£31.82 £26.52
43	MO125430226/0 Out of stock	Spring	£2.15 £1.79
44	MO384773579/0 Out of stock	Bracket	£16.80 £14.00
45	MO112692050/0 In stock	Screw	£1.74 £1.45
46	MO112155000/0 In stock	Nut	£1.48 £1.23
47	MO127510122/1 Out of stock	Bracket	£5.63 £4.69
48	MO327772197/0 Out of stock	Bracket	£5.72 £4.77
52	MO384004602/0 Out of stock	Wire	£18.84 £15.70
53	MO327772195/0 Out of stock	Front Bracket	£5.22 £4.35
56	MO384004609/0 Out of stock	Wire	£18.84 £15.70
57	MO112791200/1 Out of stock	Screw	£1.34 £1.12
58	MO327787093/0 Out of stock	Support	£5.60 £4.67
59	MO112292102/0 Out of stock	Nut	£1.61 £1.34
60	MO327110509/0 Out of stock	Inspection Door	£3.95 £3.29
61	MO135061430/0 In stock	Belt	£38.83 £32.36
63	MO127294011/0 Out of stock	Belt Guide	£14.59 £12.16
64	MO112608950/0 Out of stock	Seeger	£1.48 £1.23
65	MO182601509/0 Out of stock	Pulley	£72.56 £60.47
66	MO112139430/0 Out of stock	Key	£1.87 £1.56
67	MO118400981/1 Out of stock	Transmission Unit (Peerless Mst-204-581A)	£602.57 £502.14
68	MO112691800/0 Out of stock	Screw	£1.48 £1.23
69	MO112154210/0 In stock	Nut	£1.61 £1.34
70	MO125670005/2 Out of stock	Washer	£3.89 £3.24
71	MO327772189/0 Out of stock	Bracket	£3.95 £3.29
72	MO112735150/0 Out of stock	Screw	£1.61 £1.34
73	MO112792611/0 Out of stock	Screw	£1.48 £1.23
74	MO112293201/0 In stock	Nut	£1.61 £1.34
75	MO112735520/0 Out of stock	Screw	£1.48 £1.23
76	MO112540040/0 Out of stock	Washer	£1.34 £1.12
77	MO322680009/0 Out of stock	Washer	£1.52 £1.27
78	MO327543055/0 Out of stock	Plate	£5.47 £4.56
79	MO127430597/0 Out of stock	Spring	£4.96 £4.13
81	MO119410608/1 Out of stock	Neutral Switch (Mech.)	£58.73 £48.94
82	MO127065069/0 Out of stock	Wire	£6.83 £5.69
83	MO327787109/0 Out of stock	Support	£7.90 £6.58
84	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
86	MO119410623/0 Out of stock	Microswitch	£7.24 £6.03
87	MO112540221/0 Out of stock	Washer	£4.42 £3.68
88	MO133800001/0 Out of stock	Faston Terminal No more supplied with the transmission	£1.34 £1.12
