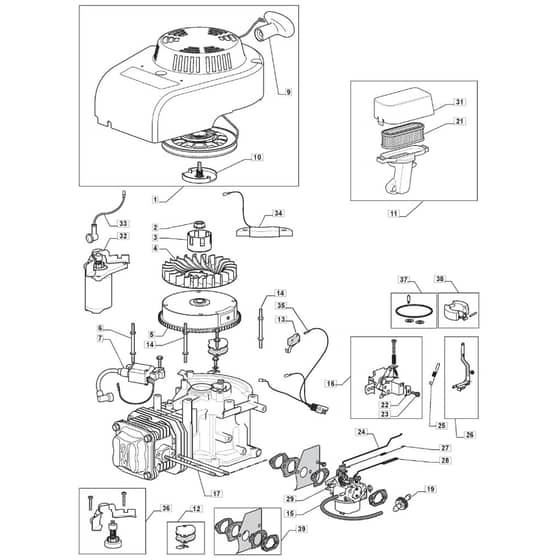

R25M - 2009 - 2T0114436/BQ - Mountfield Ride On Mower WBE0704 Engine Diagram

Description

Mountfield R25M Parts Diagram

Product Name - R25 M

Model Year - 2009

Model Type - EL 63

Art.N - 2T0114436/BQ

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550277/1 Out of stock	Starter Assy	£87.60 £73.00
2	MO118550336/0 Out of stock	Nut	£5.44 £4.53
3	MO118550335/0 Out of stock	Starter Cup	£20.32 £16.93
4	MO118550254/0 Out of stock	Flywheel Fan	£18.85 £15.71
5	MO118550418/0 Out of stock	Flywheel Ass.Y	£123.17 £102.64
6	MO118550301/0 Out of stock	Stud Bolt	£5.98 £4.98
7	MO118550417/0 Out of stock	Electronic Coil	£39.35 £32.79
9	MO118550274/0 Out of stock	Starter Handle	£13.97 £11.64
10	MO118550275/1 Out of stock	Starter Pawl Set	£11.05 £9.21
11	MO118550423/1 Out of stock	Air Cleaner Assy	£33.02 £27.52
13	MO118550399/0 Out of stock	Micro	£19.18 £15.98
14	MO118550302/0 Out of stock	Stud Bolt	£7.51 £6.26
15	MO118550428/0 Out of stock	Fuel Pipe	£6.54 £5.45
16	MO118550398/0 Out of stock	Remote Control Assy	£26.66 £22.22
19	MO118550427/0 In stock	Fuel Filter	£4.94 £4.12
21	MO118550421/0 In stock	Air Filter	£18.41 £15.34
23	MO118550338/0 Out of stock	Screw	£6.35 £5.29
25	MO118550261/0 Out of stock	Spring	£2.54 £2.12
27	MO118550263/0 Out of stock	Spring	£2.54 £2.12
28	MO118550265/0 Out of stock	Choke Control Rod	£3.18 £2.65
29	MO118550252/0 Out of stock	Carburetor	£63.49 £52.91
31	MO118550422/1 Out of stock	Air Cleaner Cover	£19.18 £15.98
32	MO118550401/1 Out of stock	Start Motor Assy	£139.68 £116.40
33	MO118550395/0 Out of stock	Switch Wires	£31.76 £26.47
34	MO118550420/0 Out of stock	Coil Assy. Charge	£40.63 £33.86
35	MO118550419/0 Out of stock	Switch Wires	£31.76 £26.47
36	MO118550402/0 Out of stock	Kit Repair	£38.09 £31.74
37	MO118550388/0 Out of stock	Kit Repair. Carburettor	£13.22 £11.02
38	MO118550389/0 In stock	Kit Repair	£8.71 £7.26
39	MO118550249/0 Out of stock	Carburettor Gasket Set	£16.63 £13.86
