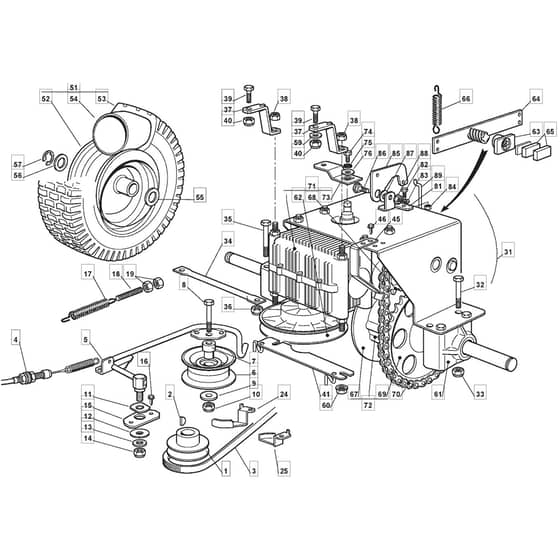

R25M - 2009 - 2T0114436/BQ - Mountfield Ride On Mower Transmission Diagram

Name: R25M - 2009 - 2T0114436/BQ - Mountfield Ride On Mower Transmission Diagram
SKU: r25m_2t0114436_bq_transmission-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

R25M - 2009 - 2T0114436/BQ - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield R25M Parts Diagram

Product Name - R25 M

Model Year - 2009

Model Type - EL 63

Art.N - 2T0114436/BQ

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127604006/2	Pulley	Out of stock	£57.29 £47.74
2	MO112139100/0	Key	In stock	£1.39 £1.16
3	MO135061406/0	Belt	In stock	£39.35 £32.79
4	MO384207103/2	Cable	Out of stock	£16.00 £13.33
5	MO384317077/0	Lever	Out of stock	£24.19 £20.16
6	MO127604007/0	Guide Pulley	Out of stock	£45.71 £38.09
7	MO127047007/0	Bushing	Out of stock	£2.42 £2.02
8	MO112691200/0	Screw	Out of stock	£1.54 £1.28
11	MO327670054/0	Washer	Out of stock	£12.35 £10.29
13	MO112523060/0	Washer To 31-8-2003	In stock	£1.39 £1.16
16	MO112735120/0	Screw To 31-8-2003	Out of stock	£1.39 £1.16
16	MO112735122/0	Screw	Out of stock	£1.39 £1.16
17	MO125430219/1	Spring	Out of stock	£3.31 £2.76
18	MO125840005/0	Tie Rod	Out of stock	£2.66 £2.22
19	MO112293200/0	Nut	In stock	£1.39 £1.16
24	MO327546041/0	Right Plate	Out of stock	£5.09 £4.24
25	MO327546043/0	Left Plate	Out of stock	£4.20 £3.50
31	MO318400970/1	Transmission Unit	Out of stock	£852.96 £710.80
32	MO112692050/0	Screw	In stock	£1.66 £1.38
35	MO125943001/0	Screw	Out of stock	£1.39 £1.16
39	MO112793701/0	Screw	Out of stock	£1.39 £1.16
39	MO112792611/0	Screw To 31-8-2003	Out of stock	£1.39 £1.16
40	MO112155000/0	Nut To 31-8-2003	In stock	£1.39 £1.16
45	MO384394830/0	Overinjected Chain Tightener	Out of stock	£28.39 £23.66
46	MO112735104/0	Screw	Out of stock	£1.39 £1.16
51	MO384680075/0	Rear Wheel	Out of stock	£86.34 £71.95
52	MO184044013/0	Rimm	Out of stock	£50.54 £42.12
53	MO127590059/0	Tyre 13X5.00-6 Kings	Out of stock	£48.25 £40.21
54	MO127590057/0	Inner Tube	Out of stock	£14.86 £12.38
55	MO112520010/0	Washer To 31-8-2003	Out of stock	£2.03 £1.69
55	MO112521410/0	Washer	Out of stock	£1.66 £1.38
56	MO125670005/2	Washer	Out of stock	£3.68 £3.07
57	MO112001010/0	Benzing Ring	Out of stock	£1.66 £1.38
59	MO112523070/0	Washer	Out of stock	£1.39 £1.16
60	MO112293201/0	Nut	In stock	£1.54 £1.28
62	MO119700050/0	Pulley	In stock	£19.80 £16.50
65	MO119700052/0	Pad	Out of stock	£39.40 £32.83
66	MO119700048/0	Spring	Out of stock	£3.17 £2.64
67	MO119700054/0	Brake Disc	Out of stock	£34.18 £28.48
68	MO119700049/0	Pinion	Out of stock	£10.16 £8.47
69	MO119700055/0	Ring Gear	Out of stock	£19.43 £16.19
70	MO119700047/0	Chain	Out of stock	£54.60 £45.50
72	MO118400971/1	Differential	Out of stock	£311.09 £259.24
74	MO112791011/0	Screw	Out of stock	£1.28 £1.07
75	MO112540040/0	Washer	Out of stock	£1.28 £1.07
76	MO322680009/0	Washer	Out of stock	£1.66 £1.38
82	MO112791200/1	Screw	Out of stock	£1.34 £1.12
83	MO112523040/0	Washer	In stock	£1.39 £1.16
84	MO112292102/0	Nut	In stock	£1.54 £1.28
86	MO122524970/2	Fulcrum Pin	Out of stock	£1.72 £1.43
87	MO325670011/0	Antifriction Washer	Out of stock	£1.39 £1.16
88	MO112154210/0	Nut	In stock	£1.54 £1.28
