R25M - 2008 - 299971536/BQ - Mountfield Ride On Mower Controls Diagram

Description

Mountfield R25M Parts Diagram

Product Name - R25 M

Model Year - 2008

Model Type - EL 63

Art.N - 299971536/BQ

Be the first to review this product

0 product questions

	Part No.	Details
1	MO327500051/1 Out of stock	Pedal	£7.03 £5.86
2	MO327670054/0 Out of stock	Washer	£13.16 £10.97
3	MO112521350/0 In stock	Washer	£1.49 £1.24
5	MO384503005/0 Out of stock	Pedal Upper	£13.34 £11.12
6	MO112791200/1 Out of stock	Screw	£1.34 £1.12
7	MO125110269/0 Out of stock	Clamp Cover	£3.53 £2.94
8	MO384207105/0 Out of stock	Cable	£18.96 £15.80
10	MO127395050/1 Out of stock	Knob	£2.84 £2.37
12	MO112154210/0 In stock	Nut	£1.63 £1.36
13	MO127430564/0 Out of stock	Sring	£1.90 £1.58
14	MO112292102/0 In stock	Nut	£1.63 £1.36

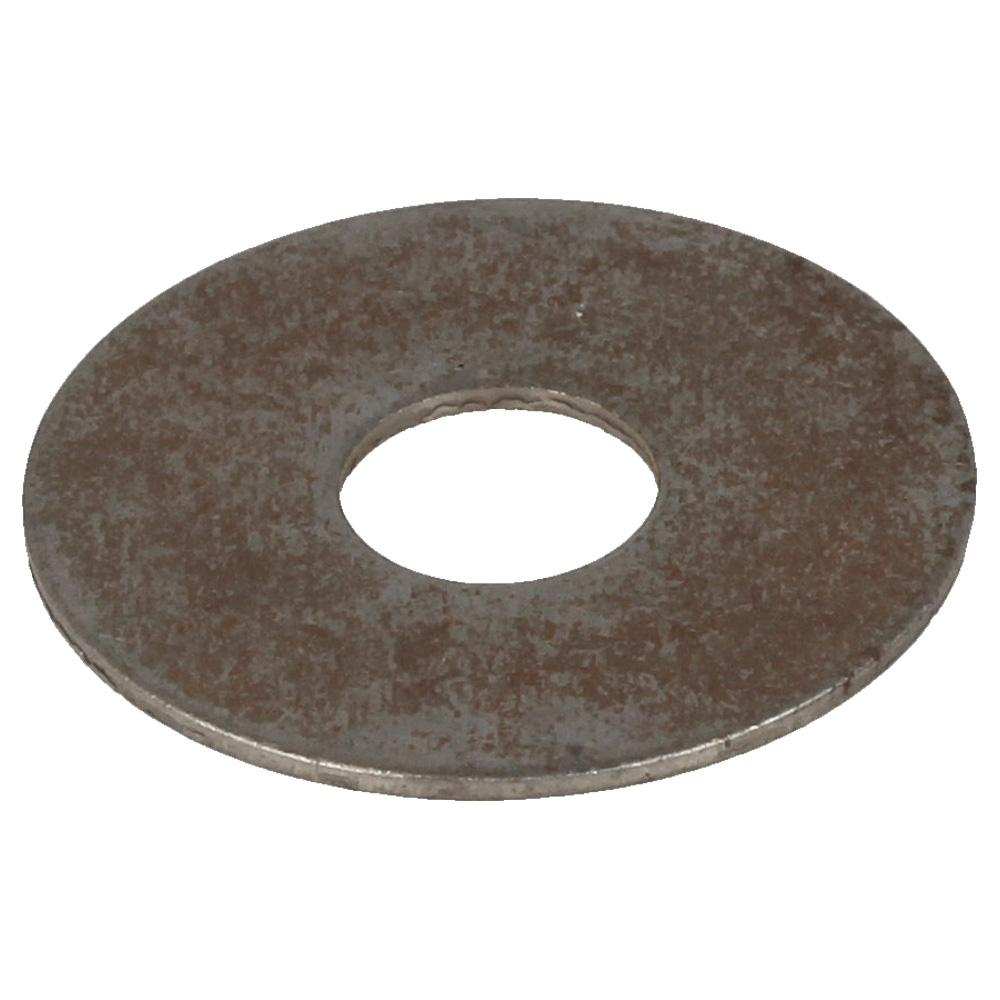

15	MO327670055/0 Out of stock	Antifriction Washer	£1.90 £1.58
16	MO112523060/0 In stock	Washer	£1.49 £1.24
31	MO384001021/0 Out of stock	Axle	£24.79 £20.66
32	MO327546015/2 Out of stock	Plate	£1.49 £1.24
33	MO112729600/0 Out of stock	Screw From 01-9-2004	£1.49 £1.24
33	MO112729601/1 Out of stock	Screw	£1.48 £1.23
36	MO112674700/0 Out of stock	Screw	£1.49 £1.24
37	MO112154510/0 Out of stock	Nut	£1.49 £1.24
38	MO125394510/0 Out of stock	Knob	£4.07 £3.39
40	MO122746601/0 Out of stock	Joint	£18.42 £15.35
41	MO112155000/0 In stock	Nut	£1.49 £1.24
42	MO124487997/0 Out of stock	Cotter Pin	£1.49 £1.24
43	MO325670011/0 Out of stock	Anti-Friction Washer 8.2 X 19 X 0.8	£1.49 £1.24
