R25M - 2008 - 299971536/BQ - Mountfield Ride On Mower Clutch Diagram

Name: R25M - 2008 - 299971536/BQ - Mountfield Ride On Mower Clutch Diagram
SKU: r25m_299971536_bq_clutch-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

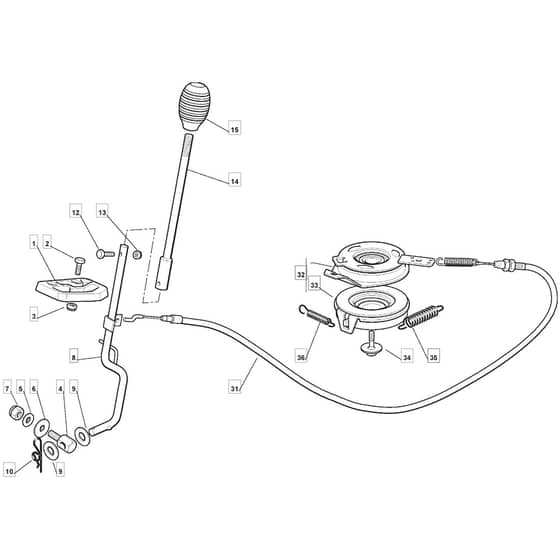

R25M - 2008 - 299971536/BQ - Mountfield Ride On Mower Clutch Diagram

Description

Mountfield R25M Parts Diagram

Product Name - R25 M

Model Year - 2008

Model Type - EL 63

Art.N - 299971536/BQ

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127487001/0 Out of stock	Plastic Guide For Pto Lever	£7.55 £6.29
2	MO112791200/1 Out of stock	Screw	£1.34 £1.12
3	MO112154510/0 In stock	Nut	£1.49 £1.24
4	MO127510107/0 Out of stock	Fulcrum Pin	£5.28 £4.40
5	MO325670011/0 Out of stock	Antifriction Washer	£1.49 £1.24
6	MO322672152/0 Out of stock	Antifriction Washer	£1.75 £1.46
7	MO112155000/0 In stock	Nut	£1.49 £1.24
9	MO321660100/0 Out of stock	Washer	£1.90 £1.58
10	MO124487998/0 In stock	Cotter Pin	£1.48 £1.23
12	MO112789020/0 Out of stock	Screw	£1.54 £1.28
13	MO112154330/0 Out of stock	Nut	£1.49 £1.24
14	MO184317079/0 Out of stock	Gearshift	£18.01 £15.01
15	MO125394510/0 Out of stock	Knob	£4.07 £3.39
31	MO384207104/1 Out of stock	Blades Engagement Wire	£29.80 £24.83
32	MO118399065/1 Out of stock	Mechanical Clutch Ass.Y	£250.57 £208.81
33	MO118399066/1 Out of stock	Clutch Lower Part El 63	£201.82 £168.18
34	MO112735460/0 Out of stock	Screw	£8.93 £7.44
35	MO127430579/0 Out of stock	Clutch Spring From 01-9-2002	£12.37 £10.31
35	MO127430571/0 Out of stock	Spring To 31-8-2002	£4.48 £3.73
36	MO122450110/0 In stock	Roller Spring	£7.18 £5.98
