QUIET 514 PD - 2008 - 291572043/UM8 - Mountfield Rotary Mower Transmission Diagram

QUIET 514 PD - 2008 - 291572043/UM8 - Mountfield Rotary Mower Transmission Diagram
QUIET 514 PD - 2008 - 291572043/UM8 - Mountfield Rotary Mower Transmission Diagram

Description

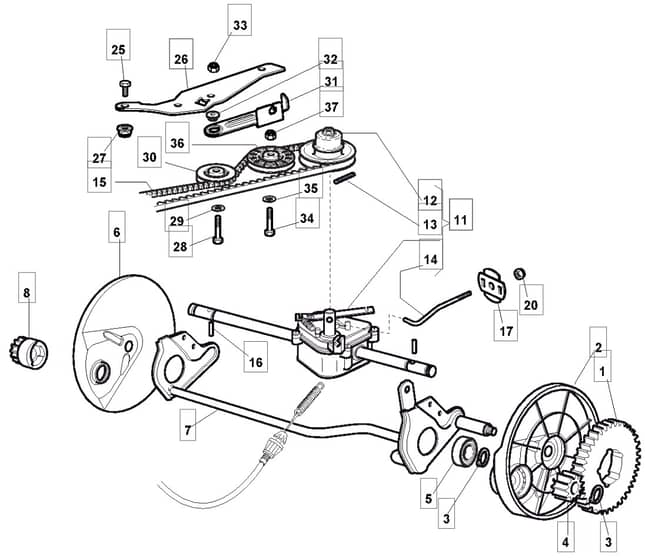

Mountfield QUIET 514 PD Parts Diagram

Product Name - QUIET 514 PD

Model Year - 2008

Model Type - CAL 534 TR 4S SIL

Art.N - 291572043/UM8

Ref. Img. Part No. Details
  1 Ring Gear
Ring Gear
MO122120105/2 Out of stock
Ring Gear
£8.96 £7.47

  2 Left Wheel Protection
Left Wheel Protection
MO122600093/0 Out of stock
Left Wheel Protection
£3.04 £2.53

  3 Seeger
Seeger
MO112608600/0 In stock
Seeger
£1.39 £1.16

  4 Left Pinion
Left Pinion
MO122570120/1 In stock
Left Pinion
£6.66 £5.55

  5 Bearing
Bearing
MO119216035/0 In stock
Bearing
£3.17 £2.64

  6 Right Wheel Protection
Right Wheel Protection
MO122600092/0 Out of stock
Right Wheel Protection
£3.04 £2.53

  7 Rear Wheel Axle
Rear Wheel Axle
MO381000147/0 In stock
Rear Wheel Axle
Was £26.74 £22.28 Special Price £17.23 £14.36

  8 Right Pinion
Right Pinion
MO322570138/0 In stock
Right Pinion
£6.66 £5.55

  11 Gear Box From 01-9-2010
Gear Box From 01-9-2010
MO181003102/1 Out of stock
Gear Box From 01-9-2010
£139.68 £116.40

  11 Gear Box
Gear Box
MO181003096/3 Out of stock
Gear Box
£133.32 £111.10

  12 Pulley From 01-9-2008 To 31-8-2013
Pulley From 01-9-2008 To 31-8-2013
MO122601925/0 Out of stock
Pulley From 01-9-2008 To 31-8-2013
£59.66 £49.72

  12 Belt Pulley To 31-8-2008
Belt Pulley To 31-8-2008
MO122601916/0 Out of stock
Belt Pulley To 31-8-2008
£61.33 £51.11

  13 Elastic Pin
Elastic Pin
MO112645700/0 Out of stock
Elastic Pin
£1.39 £1.16

  14 Adjustment Rod
Adjustment Rod
MO122033285/0 Out of stock
Adjustment Rod
£6.23 £5.19

  15 Belt
Belt
MO135064010/0 In stock
Belt
£13.26 £11.05

  16 Pin
Pin
MO122753000/0 In stock
Pin
£1.39 £1.16

  17 Washer
Washer
MO322675113/0 Out of stock
Washer
£1.78 £1.48

  25 Screw
Screw
MO112791011/0 Out of stock
Screw
£1.28 £1.07

  26 Support From 01-9-2009
Support From 01-9-2009
MO322806625/2 Out of stock
Support From 01-9-2009
£4.94 £4.12

  27 Nut
Nut
MO112292102/0 In stock
Nut
£1.54 £1.28

  28 Screw
Screw
MO112689500/0 Out of stock
Screw
£1.39 £1.16

  30 Pulley
Pulley
MO122601915/0 In stock
Pulley
£19.31 £16.09

  31 Pulley Support
Pulley Support
MO322806623/0 Out of stock
Pulley Support
£3.80 £3.17

  32 Washer
Washer
MO122671656/0 Out of stock
Washer
£6.60 £5.50

  34 Screw
Screw
MO112674700/0 Out of stock
Screw
£1.39 £1.16

  35 Washer
Washer
MO112523050/0 In stock
Washer
£1.39 £1.16

  36 Pulley
Pulley
MO122601914/0 In stock
Pulley
£19.43 £16.19

  37 Low Self-Locking Nut M6 Uni7474 Acc.6S
Low Self-Locking Nut M6 Uni7474 Acc.6S
MO112154510/0 In stock
Low Self-Locking Nut M6 Uni7474 Acc.6S
£1.39 £1.16
