Description

Qualcast Concorde 32 Cordless

Article number: F016300603

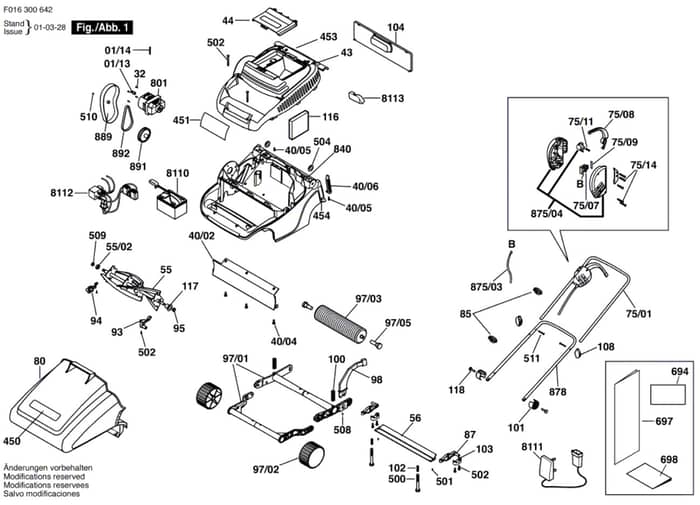

Main Assembly - Parts Diagram

Ref. Img. Part No. Details
  80 Grass Catcher
Grass Catcher
BQF016L62934 Out of stock
Grass Catcher
£39.70 £33.08

  85 Cable Holder
Cable Holder
ALF016L11580 Out of stock
Cable Holder
£1.72 £1.43

  87 Knife Holder
Knife Holder
BQF016L62272 Out of stock
Knife Holder
£3.08 £2.57

  93 Connection Terminal L/H
Connection Terminal L/H
BQF016L62278 Out of stock
Connection Terminal L/H
£1.15 £0.96

  94 Connection Terminal R/H
Connection Terminal R/H
BQF016L62279 Out of stock
Connection Terminal R/H
£1.15 £0.96

  95 Bearing Bush
Bearing Bush
BQF016T40513 Out of stock
Bearing Bush
£7.97 £6.64

  98 Handle
Handle
BQF016L62292 Out of stock
Handle
£4.39 £3.66

  103 Terminal Block
Terminal Block
BQF016L62283 Out of stock
Terminal Block
£1.15 £0.96

  114 Coiled Spring Pin
Coiled Spring Pin
ALF016T44492 In stock
Coiled Spring Pin
£3.50 £2.92

  117 Bearing Ring
Bearing Ring
BQF016L62488 Out of stock
Bearing Ring
£1.15 £0.96

  501 Screw M5x8 Csk Hd.
Screw M5x8 Csk Hd.
ALF016L36542 In stock
Screw M5x8 Csk Hd.
£0.64 £0.53

  504 Collar 12mm T40
Collar 12mm T40
ALF016T49100 In stock
Collar 12mm T40
£2.58 £2.15

  508 Self-Tapping Screw
Self-Tapping Screw
BQF016L37433 Out of stock
Self-Tapping Screw
£1.15 £0.96

  509 Nut
Nut
BQF016L62388 Out of stock
Nut
£1.72 £1.43

  510 Self-Tapping Screw 4x19mm
Self-Tapping Screw 4x19mm
ALF016T49429 In stock
Self-Tapping Screw 4x19mm
£2.20 £1.83

  511 Bolt M6x50
Bolt M6x50
BQF016L59277 Out of stock
Bolt M6x50
£2.24 £1.87

  840 Chassis
Chassis
BQF016102755 Out of stock
Chassis
£34.76 £28.97

  878 Handle
Handle
BQF016102330 Out of stock
Handle
£15.20 £12.67

  889 Band Cover
Band Cover
BQF016102356 Out of stock
Band Cover
£4.39 £3.66

  892 Drive Belt
Drive Belt
2775 In stock
Drive Belt
£4.80 £4.00

  4002 Baffle Plate
Baffle Plate
BQF016L62866 Out of stock
Baffle Plate
£6.28 £5.23

  5502 Deep Groove Ball Bearing 6200-2Z Din 625
Deep Groove Ball Bearing 6200-2Z Din 625
BQ1900905232 Out of stock
Deep Groove Ball Bearing 6200-2Z Din 625
£26.48 £22.07

  7509 Spring Lever
Spring Lever
ALF016T49845 In stock
Spring Lever
£4.68 £3.90

  7511 Compression Spring
Compression Spring
ALF016T49226 In stock
Compression Spring
£3.96 £3.30

  8112 Battery Cable
Battery Cable
BQF016102758 Out of stock
Battery Cable
£33.92 £28.27

  9702 Wheel
Wheel
BQF016L62270 Out of stock
Wheel
£3.08 £2.57

  9705 Flanged Shaft
Flanged Shaft
BQF016L63341 Out of stock
Flanged Shaft
£3.32 £2.77


Description

Qualcast Concorde 32 Cordless

Article number: F016300603

Main Assembly - Parts Diagram
