Qualcast Classic Petrol 43S - F016306042 - Main Assembly

Name: Qualcast Classic Petrol 43S - F016306042 - Main Assembly
SKU: classic_petrol_43s_f016306042_main_assy-group
Price: 0.96 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Qualcast Classic Petrol 43S - F016306042 - Main Assembly

Description

Qualcast Classic Petrol 43S

Article number: F016306042

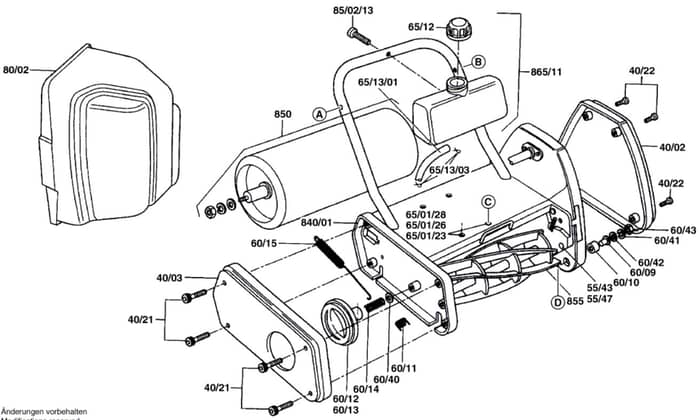

Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
850	ALF016103215 Out of stock	Roller 17"	£218.64 £182.20
4002	ALF016A75899 In stock	Protective Cover L/H	£47.76 £39.80
4003	ALF016A75088 In stock	Side Cover R/H	£21.86 £18.22
4021	ALF016A58228 In stock	Screw M6	£2.46 £2.05
5543	ALF016A58229 In stock	Screw M6	£2.46 £2.05
5547	ALF016L35389 Out of stock	Lock Washer	£1.40 £1.17
6009	ALF016A57748 Out of stock	Pin L/H	£2.74 £2.28
6010	ALF016A57676 Out of stock	Cap	£2.74 £2.28
6011	ALF016A57820 Out of stock	Spring	£3.26 £2.72
6012	ALF016A58656 In stock	Button	£14.18 £11.82
6013	BQF016A58188 Out of stock	Insert	£2.56 £2.13
6014	ALF016T49226 In stock	Spring	£3.96 £3.30
6015	ALF016A57995 In stock	Spring	£10.08 £8.40
6041	ALF016L35307 In stock	Spring Washer 5/16 Sw Se	£1.58 £1.32
6042	ALF016L35411 Out of stock	Washer 8.5mm	£1.18 £0.98
6043	ALF016L35457 In stock	Nut M8	£2.46 £2.05
8002	ALF016103791 Out of stock	Collection Container	£59.74 £49.78
650123	ALF016L11218 Out of stock	Lock Nut M8	£1.40 £1.17
650128	ALF016L10198 Out of stock	Washer	£2.60 £2.17
651303	BQF016A57982 Out of stock	Pipe Clamp	£1.15 £0.96
850213	ALF016L36835 In stock	Screw	£1.15 £0.96
