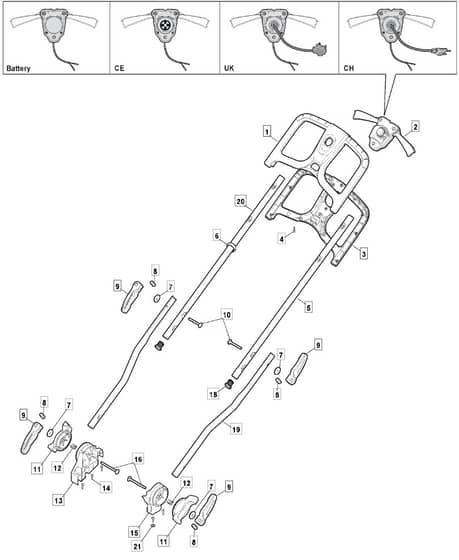

PRINCESS 38 Li - 2012-2013 - 294385063/M12 - Mountfield Rotary Mower Handle Diagram

Name: PRINCESS 38 Li - 2012-2013 - 294385063/M12 - Mountfield Rotary Mower Handle Diagram
SKU: princess_38_li_294385063_m12_handle-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PRINCESS 38 Li - 2012-2013 - 294385063/M12 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield PRINCESS 38 Li Parts Diagram

Model Year - 2012-2013

Model Type - EL 380 Li

Art.N - 294385063/M12

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322291070/0 Out of stock	Upper Half Handgrip Switch	£21.06 £17.55
3	MO322291071/0 Out of stock	Lower Half Handgrip Switch	£20.58 £17.15
4	MO112728713/0 Out of stock	Screw	£1.36 £1.13
5	MO381007515/0 Out of stock	Handle Lower Part To 31-8-2015	£8.65 £7.21
6	MO122192000/1 Out of stock	Clamp	£1.75 £1.46
7	MO112523050/0 In stock	Washer	£1.49 £1.24
8	MO122524352/0 Out of stock	Pin	£3.38 £2.82
9	MO322319520/0 Out of stock	Fixing Lever Handle To 31-8-2014	£2.17 £1.81
9	MO322319526/1 Out of stock	Fixing Lever Handle	£2.30 £1.92
10	MO122943016/0 In stock	Screw	£1.49 £1.24
11	MO322246100/0 Out of stock	Handle Joint To 31-8-2014	£4.48 £3.73
11	MO322246102/0 Out of stock	Handle Joint From 01-9-2014	£3.92 £3.27
12	MO122430210/0 Out of stock	Bearing	£1.63 £1.36
13	MO322745055/0 Out of stock	Right Joint	£7.03 £5.86
14	MO112728714/0 Out of stock	Screw	£1.48 £1.23
15	MO322745051/0 Out of stock	Left Joint To 31-8-2014	£7.03 £5.86
15	MO322745056/0 Out of stock	Left Joint From 01-9-2014	£7.03 £5.86
16	MO122943017/0 Out of stock	Screw	£1.63 £1.36
18	MO118566112/0 Out of stock	Polyethylene Push Road D.20Inch	£1.49 £1.24
19	MO381007513/0 Out of stock	Lower Handle. Black	£10.56 £8.80
20	MO381007514/1 Out of stock	Upper Handle	£10.70 £8.92
21	MO112521320/0 Out of stock	Washer M5 5.3 X 10 X 1	£1.49 £1.24
