PR 2510 - 2014-2015 - 228010023/MBR - Mountfield Chainsaw Housing Diagram

Name: PR 2510 - 2014-2015 - 228010023/MBR - Mountfield Chainsaw Housing Diagram
SKU: pr_2510_228010023_mbr_housing-group
Price: 1.06 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

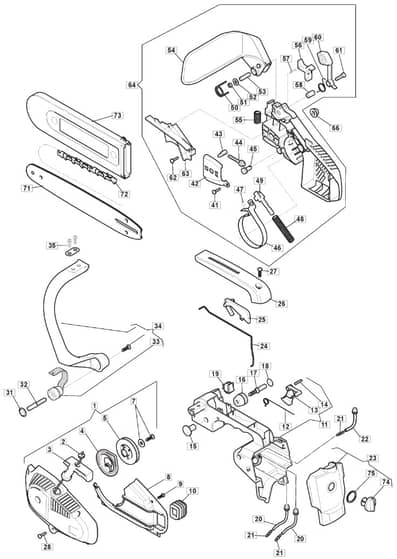

PR 2510 - 2014-2015 - 228010023/MBR - Mountfield Chainsaw Housing Diagram

Description

Mountfield PR 2510 Parts Diagram

Model Year - 2014-2015

Model Type - CJ 300

Art.N - 228010023/MBR

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118801169/0 Out of stock	Starter Assy Red	£23.30 £19.42
2	MO123234005/0 Out of stock	Starter Cord	£1.34 £1.12
3	MO123300013/0 Out of stock	Starter Handle	£1.48 £1.23
4	MO123430594/0 Out of stock	Starter Spring	£3.61 £3.01
5	MO123604011/0 Out of stock	Starter Pulley	£3.22 £2.68
10	MO123275026/0 Out of stock	Grommet	£3.08 £2.57
11	MO183300023/0 Out of stock	Handle Assy	£29.28 £24.40
12	MO123430599/0 Out of stock	Spring	£2.54 £2.12
13	MO123315095/0 Out of stock	Throttle Lever. Yellow	£1.74 £1.45
14	MO123510098/0 Out of stock	Elastic Pin	£1.61 £1.34
15	MO123790021/0 Out of stock	Cap. Black	£1.34 £1.12
19	MO118800202/0 Out of stock	Switch	£1.74 £1.45
20	MO123867021/0 Out of stock	Pipe	£1.48 £1.23
21	MO123650005/0 In stock	Pipe Connection	£1.27 £1.06
22	MO123867022/0 Out of stock	Pipe Mix	£1.61 £1.34
23	MO183090013/0 Out of stock	Rear Cover	£4.58 £3.82
24	MO123835002/0 Out of stock	Throttle Rod	£2.81 £2.34
25	MO123315096/0 Out of stock	Safety Lever. Yellow	£1.61 £1.34
26	MO123109579/0 Out of stock	Handle. Upper Part	£3.22 £2.68
28	MO123878008/0 Out of stock	Screw	£1.34 £1.12
31	MO123790022/0 Out of stock	Cap. Black	£1.27 £1.06
32	MO123878093/0 Out of stock	Screw	£1.61 £1.34
33	MO123275027/0 Out of stock	Shock Absorber	£2.54 £2.12
34	MO183105000/0 Out of stock	Handle	£10.31 £8.59
42	MO123311010/0 Out of stock	Bar Plate	£3.35 £2.79
43	MO123796008/0 Out of stock	Nut	£1.48 £1.23
44	MO123878092/0 Out of stock	Screw	£2.15 £1.79
45	MO123510097/0 Out of stock	Pin	£2.54 £2.12
46	MO123448005/0 Out of stock	Brake Band	£3.74 £3.12
47	MO123665004/0 Out of stock	Needle	£1.27 £1.06
48	MO123430598/0 Out of stock	Brake Spring	£3.08 £2.57
49	MO123315094/0 Out of stock	Lever	£2.28 £1.90
50	MO123430595/0 Out of stock	Spring	£1.61 £1.34
51	MO112154330/0 Out of stock	Nut	£1.48 £1.23
52	MO123657013/0 Out of stock	Washer	£1.27 £1.06
53	MO123044219/0 Out of stock	Bushing	£1.27 £1.06
54	MO123455009/0 Out of stock	Hand Guard	£3.22 £2.68
56	MO183315052/0 Out of stock	Chain Brake Lever	£3.18 £2.65
57	MO123665003/0 Out of stock	Needle	£1.27 £1.06
58	MO123044220/0 Out of stock	Bushing	£1.34 £1.12
59	MO123430572/0 Out of stock	Spring	£2.41 £2.01
60	MO123080002/0 Out of stock	Balance Weigth	£2.68 £2.23
61	MO123878090/0 Out of stock	Screw	£1.34 £1.12
62	MO123878088/0 Out of stock	Screw	£1.34 £1.12
63	MO123109578/0 Out of stock	Brake Spring Cover	£1.34 £1.12
64	MO118802734/0 Out of stock	Brake Assy. Red	£36.16 £30.13
66	MO123120010/0 Out of stock	Nut	£1.48 £1.23
71	MO123900360/0 Out of stock	Guide Bar 10"-3.8"-0.050" 10". 3.8"	£32.14 £26.78
72	6056 In stock	Chain 10Inch 10". 3.8"	£8.17 £6.81
73	MO323085000/0 Out of stock	Chain Cover	£19.99 £16.66
74	MO118804967/0 Out of stock	Knob	£6.70 £5.58
75	MO123657012/0 Out of stock	Washer	£1.27 £1.06
