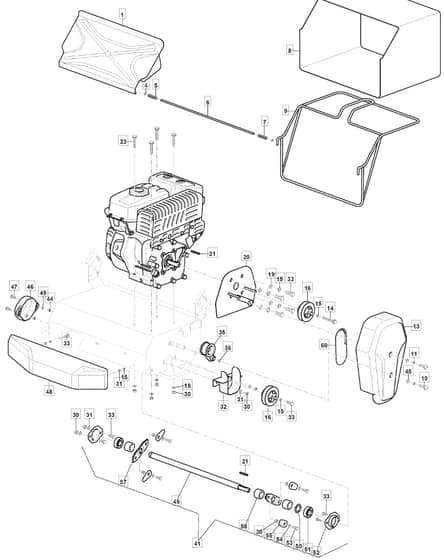

MVP 40 G - 2021 - 211400243/M20 - Mountfield Scarifier Blade Diagram

Name: MVP 40 G - 2021 - 211400243/M20 - Mountfield Scarifier Blade Diagram
SKU: mvp_40_g_211400243_m20_blade-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MVP 40 G - 2021 - 211400243/M20 - Mountfield Scarifier Blade Diagram

Description

Mountfield MVP 40 G Parts Diagram

Model Year - 2021

Model Type - SCV 404

Art.N - 211400243/M20

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118810258/0 Out of stock	Stone Guard. Grey	£73.64 £61.37
4	MO112604898/0 Out of stock	Crown Fastener	£1.48 £1.23
7	MO118810238/0 Out of stock	Spring	£1.87 £1.56
8	MO118810246/0 Out of stock	Grasscatcher	£167.38 £139.48
9	MO118810245/0 Out of stock	Grasscatcher Frame	£37.49 £31.24
10	MO112727801/0 Out of stock	Screw	£1.48 £1.23
11	MO112582100/0 Out of stock	Grower	£1.48 £1.23
13	MO118810227/0 Out of stock	Belt Cover	£40.18 £33.48
14	MO9959-0825-16 Out of stock	Screw	£1.66 £1.38
15	MO112583500/0 Out of stock	Grower	£1.48 £1.23
16	MO118810226/0 Out of stock	Belt Pulley	£38.83 £32.36
21	MO112139440/0 Out of stock	Key	£1.87 £1.56
23	MO112691115/0 Out of stock	Screw	£1.48 £1.23
30	MO112155000/0 In stock	Nut	£1.48 £1.23
31	MO112521350/0 In stock	Washer	£1.48 £1.23
33	MO112793102/0 In stock	Screw	£1.48 £1.23
35	MO118810254/0 Out of stock	Belt Tensioner	£40.18 £33.48
36	MO112608600/0 In stock	Seeger	£1.48 £1.23
41	MO118810243/0 Out of stock	Flail Shaft Assy	£328.07 £273.39
44	MO112154510/0 In stock	Nut	£1.48 £1.23
45	MO112521330/0 Out of stock	Washer	£1.48 £1.23
47	MO9959-0616-16 Out of stock	Screw	£1.66 £1.38
50	MO118810234/0 Out of stock	Washer	£4.69 £3.91
51	MO118800369/0 Out of stock	Bearing	£25.57 £21.31
52	MO118810847/0 Out of stock	Bearing Support	£4.28 £3.57
53	MO112792611/0 Out of stock	Screw	£1.48 £1.23
54	MO118810237/0 Out of stock	Bush	£1.61 £1.34

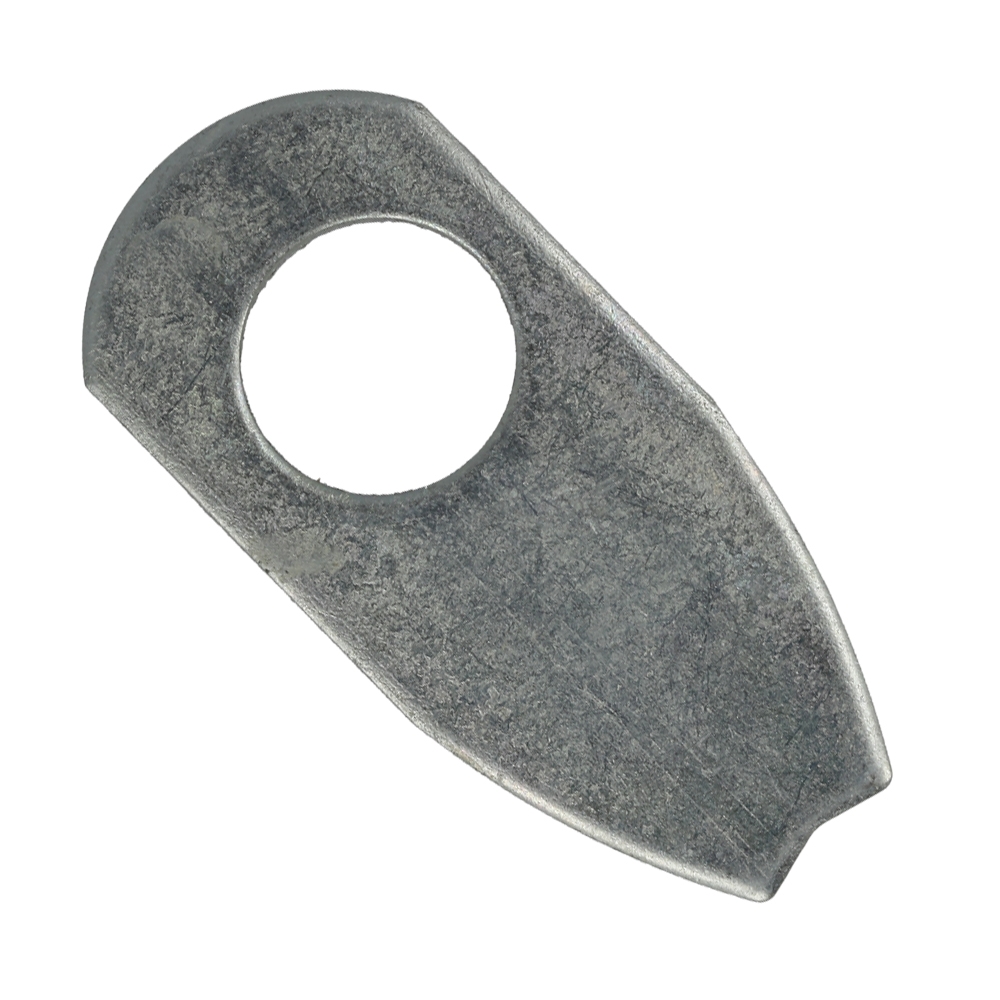

55	MO118810244/0 Out of stock	Blade	£8.51 £7.09
57	MO118810257/0 Out of stock	Blade Support	£17.14 £14.28
58	MO118810236/0 Out of stock	Bush	£1.61 £1.34

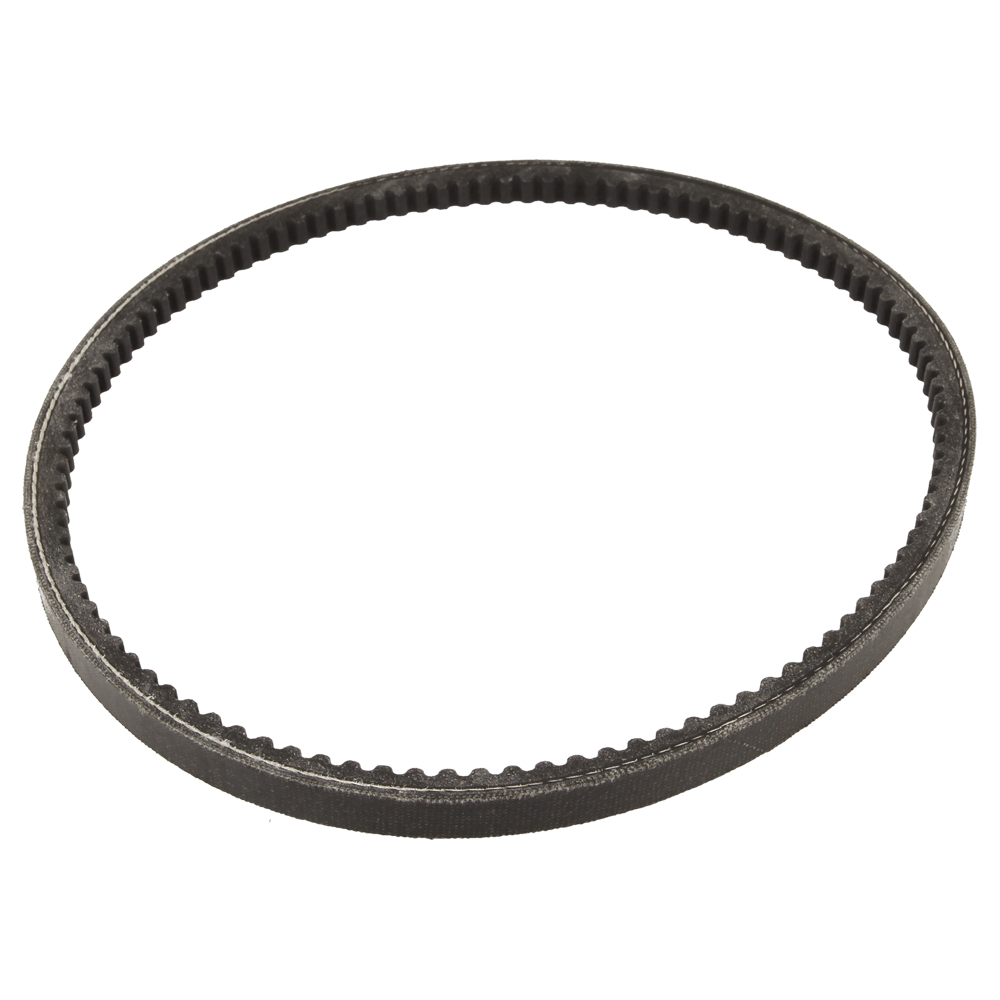

60	MO118810225/1 Out of stock	Belt	£40.18 £33.48
