MULTICLIP 501 SP - 2010-2011 - 291502148/BQ - Mountfield Rotary Mower Deck Diagram

Description

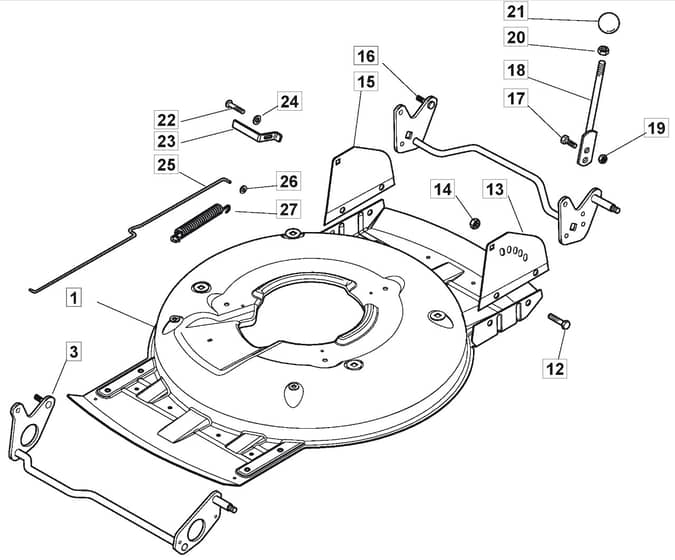

Mountfield MULTICLIP 501 SP Parts Diagram

Product Name - MULTICLIP 501SP

Model Year - 2010-2011

Model Type - MCS 504 TR

Art.N - 291502148/BQ

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004735/1 In stock	Grey Deck	£197.33 £164.44
3	MO381302863/0 Out of stock	Axle. Front Wheels From 01-9-2012	£44.56 £37.13
3	MO381002849/0 Out of stock	Front Wheel Axle To 31-8-2012	£36.92 £30.77
12	MO112791011/0 Out of stock	Screw	£1.34 £1.12
13	MO381545105/0 Out of stock	Left Plate	£9.55 £7.96
14	MO112154510/0 In stock	Nut	£1.48 £1.23
15	MO381545104/0 Out of stock	Right Plate	£9.80 £8.17
16	MO381302861/1 Out of stock	Axle	£42.01 £35.01
17	MO112789000/0 Out of stock	Screw	£1.48 £1.23
18	MO381003323/0 Out of stock	Lever. Height Adjustment	£15.02 £12.52
19	MO112154330/0 Out of stock	Nut	£1.48 £1.23
20	MO112293200/0 In stock	Nut	£1.48 £1.23
21	MO322399812/0 Out of stock	Knob	£2.93 £2.44
22	MO112735661/0 Out of stock	Screw	£1.48 £1.23
23	MO322551529/0 Out of stock	Wheels Cleaning Plate	£3.56 £2.97
24	MO112521330/0 Out of stock	Washer	£1.48 £1.23
25	MO122033329/0 Out of stock	Rod. Height Adjustment	£8.98 £7.48
26	MO112604899/0 In stock	Crown Fastener	£1.48 £1.23
27	MO122446184/0 Out of stock	Spring	£4.96 £4.13
