MULTICLIP 501 HP - 2011 - 291501043/M11 - Mountfield Rotary Mower WBE0701 Engine Diagram

Description

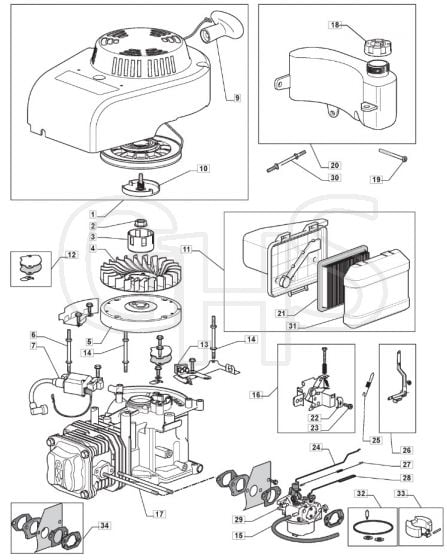

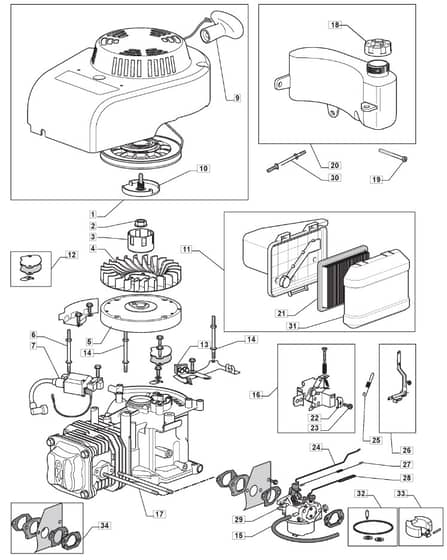

Mountfield MULTICLIP 501 HP Parts Diagram

Product Name - MULTICLIP 501 HP

Model Year - 2011

Model Type - MCS 504

Art.N - 291501043/M11

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550276/1 In stock	Starter Assy	£49.55 £41.29
2	MO118550336/0 Out of stock	Nut	£5.76 £4.80
3	MO118550335/0 Out of stock	Starter Cup	£21.42 £17.85
4	MO118550254/0 Out of stock	Flywheel Fan	£19.88 £16.57
5	MO118550253/0 Out of stock	Flywheel Ass.Y	£91.06 £75.88
6	MO118550301/0 Out of stock	Stud Bolt	£6.29 £5.24
7	MO118550255/1 In stock	Electronic Coil	£50.88 £42.40
9	MO118550274/0 Out of stock	Starter Handle	£14.72 £12.27
10	MO118550275/1 In stock	Starter Pawl Set	£11.65 £9.71
11	MO118550737/0 In stock	Air Cleaner Assy	£22.50 £18.75
12	MO118550378/0 Out of stock	Gasket Assy	£21.96 £18.30
13	MO118550376/0 Out of stock	Flywheel Brake Assy	£37.49 £31.24
14	MO118550302/0 Out of stock	Stud Bolt	£7.51 £6.26
15	MO118550340/0 In stock	Fuel Pipe	£7.50 £6.25
16	MO118550259/0 Out of stock	Remote Control Assy	£28.12 £23.43
17	MO118550298/0 Out of stock	Stud Bolt	£6.43 £5.36
18	MO118550943/1 In stock	Fuel Cap	£14.72 £12.27
19	MO118550314/0 In stock	Fuel Filter	£4.15 £3.46
20	MO118550316/1 Out of stock	Fuel Tank	£40.18 £33.48
21	MO118550257/0 In stock	Air Filter	£11.05 £9.21
23	MO118550338/0 Out of stock	Screw	£6.70 £5.58
24	MO118550397/0 Out of stock	Governor Link	£2.81 £2.34
25	MO118550260/0 In stock	Spring	£3.74 £3.12
26	MO118550266/0 Out of stock	Arm Governor Assy	£14.33 £11.94
27	MO118550263/0 Out of stock	Spring	£2.68 £2.23
28	MO118550264/0 Out of stock	Choke Control Rod	£3.35 £2.79
29	MO118550251/0 Out of stock	Carburetor	£54.90 £45.75
30	MO118550315/0 Out of stock	Stud Bolt	£7.37 £6.14
31	MO118550396/0 Out of stock	Air Cleaner Cover	£23.44 £19.53
32	MO118550389/0 In stock	Kit Repair	£9.17 £7.64
33	MO118550388/0 Out of stock	Kit Repair. Carburettor	£13.93 £11.61
34	MO118550248/0 Out of stock	Carburettor Gasket Set	£18.88 £15.73
