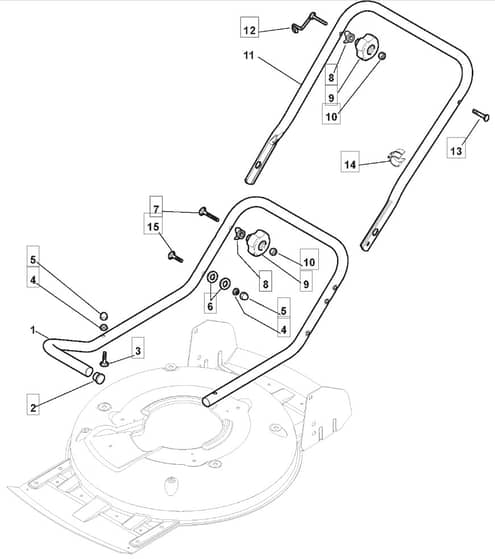

MULTICLIP 501 HP - 2011 - 291501043/M11 - Mountfield Rotary Mower Lower Handle Diagram

Name: MULTICLIP 501 HP - 2011 - 291501043/M11 - Mountfield Rotary Mower Lower Handle Diagram
SKU: multiclip_501_hp_291501043_m11_lower_handle-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP 501 HP - 2011 - 291501043/M11 - Mountfield Rotary Mower Lower Handle Diagram

Description

Mountfield MULTICLIP 501 HP Parts Diagram

Product Name - MULTICLIP 501 HP

Model Year - 2011

Model Type - MCS 504

Art.N - 291501043/M11

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118566110/0 Out of stock	Push Rod	£1.48 £1.23
3	MO112818900/0 In stock	Screw	£1.48 £1.23
4	MO112155000/0 In stock	Nut	£1.48 £1.23
5	MO118203854/0 Out of stock	Cap	£1.48 £1.23
7	MO112819121/0 In stock	Screw From 01-9-2015	£1.87 £1.56
8	MO122680006/1 In stock	Washer To 31-8-2013	£1.74 £1.45
8	MO122671651/0 In stock	Washer From 01-9-2012	£1.87 £1.56
9	MO122399900/0 In stock	Black Knob	£1.48 £1.23
10	MO112293200/0 In stock	Nut	£1.48 £1.23
12	MO181003801/1 In stock	Guide Spring To 31-8-2013	£3.18 £2.65
12	MO122430313/0 In stock	Guide Spring From 01-9-2012	£3.74 £3.12
13	MO112819201/0 Out of stock	Screw	£2.68 £2.23
14	MO118390020/0 In stock	Conduit Clip	£1.74 £1.45
15	MO112819100/0 Out of stock	Carriage Bolt M8 X 40	£1.48 £1.23
