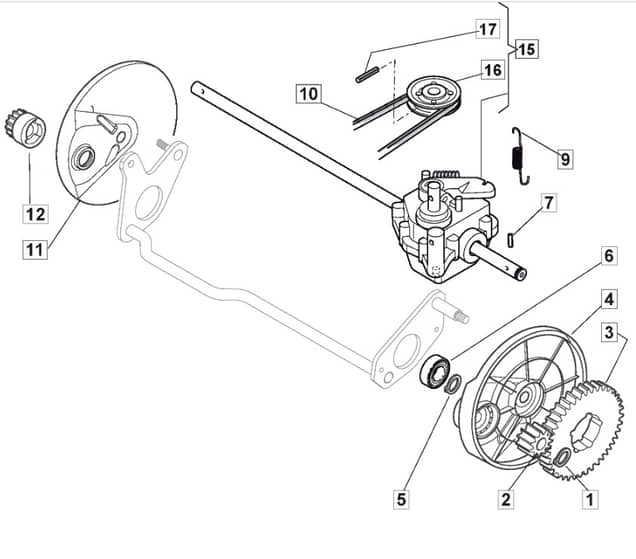

MULTICLIP 500 PD - 2011 - 291502023/M10 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield MULTICLIP 500 PD Parts Diagram

Product Name - MULTICLIP 500 PD

Model Year - 2011

Model Type - MCS 504 TR

Art.N - 291502023/M10

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122570120/1 In stock	Left Pinion	£7.03 £5.86
3	MO122120105/2 Out of stock	Ring Gear	£9.44 £7.87
4	MO122600092/0 Out of stock	Right Wheel Protection To 31-8-2012	£3.22 £2.68
5	MO112608600/0 In stock	Seeger	£1.48 £1.23
6	MO119216035/0 In stock	Bearing	£3.35 £2.79
7	MO122753000/0 In stock	Pin	£1.48 £1.23
9	MO122450439/0 Out of stock	Spring To 30-9-2017	£3.22 £2.68
9	MO122450437/0 Out of stock	Spring From 01-10-2017	£2.94 £2.45
10	MO135064105/0 Out of stock	Trapezoidal Belt From 01-10-2017	£9.91 £8.26
10	MO135063902/1 In stock	Belt	£9.44 £7.87
10	MO135064100/0 In stock	Belt From 01-9-2012 To 31-8-2016	£9.64 £8.03
11	MO122600093/0 Out of stock	Left Wheel Protection To 31-8-2012	£3.22 £2.68
11	MO322600267/0 Out of stock	Protection. Wheel From 01-9-2012	£5.72 £4.77
12	MO322570138/0 In stock	Right Pinion	£7.03 £5.86
15	MO181003095/0 Out of stock	Gear Box To 31-8-2012	£91.06 £75.88
15	MO181003109/1A Out of stock	Gear Box	£155.87 £129.89
15	MO181003127/0 Out of stock	Gear Box Assy From 01-10-2017	£123.19 £102.66
15	MO181003122/0 Out of stock	Gear Box From 01-9-2016 To 30-9-2017	£77.66 £64.72
16	MO122601909/0 Out of stock	Pulley	£5.35 £4.46
17	MO112645705/0 Out of stock	Roll Pin D.5 X 32	£1.48 £1.23
