MULTICLIP 50 - 2008 - 291502048/BQ - Mountfield Rotary Mower Blade Diagram

Name: MULTICLIP 50 - 2008 - 291502048/BQ - Mountfield Rotary Mower Blade Diagram
SKU: multiclip_50_291502048_bq_blade-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULTICLIP 50 - 2008 - 291502048/BQ - Mountfield Rotary Mower Blade Diagram

Description

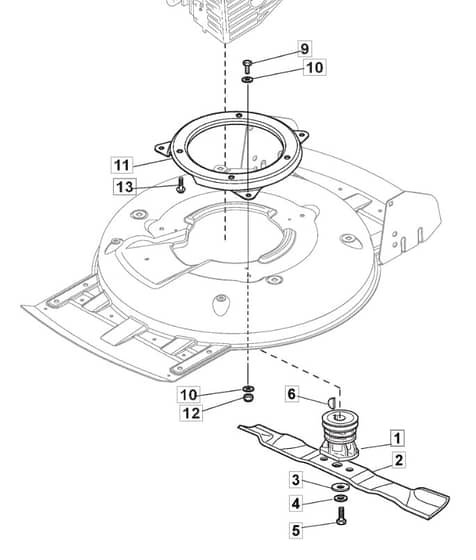

Mountfield MULTICLIP 50 Parts Diagram

Product Name - MULTICLIP 50

Model Year - 2008

Model Type - MCS 504 TR

Art.N - 291502048/BQ

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley	£9.24 £7.70
2	MO181004146/0 In stock	Blade Standard	£14.77 £12.31
3	MO122160400/0 In stock	Elastic Disc	£1.74 £1.45
4	MO112523080/0 In stock	Washer	£1.48 £1.23
5	MO112735698/0 In stock	Screw	£1.74 £1.45
6	MO112139100/0 In stock	Key	£1.48 £1.23
9	MO112793102/0 In stock	Screw	£1.48 £1.23
10	MO112523060/0 In stock	Washer	£1.48 £1.23
11	MO322207219/1 Out of stock	Flange	£24.19 £20.16
12	MO112155000/0 In stock	Nut	£1.48 £1.23
13	MO112735109/2 In stock	Telf-Form Screw Te Fl 3.8" X 1"	£2.28 £1.90
13	MO112735108/1 In stock	Screw From 01-9-2014	£2.00 £1.67
