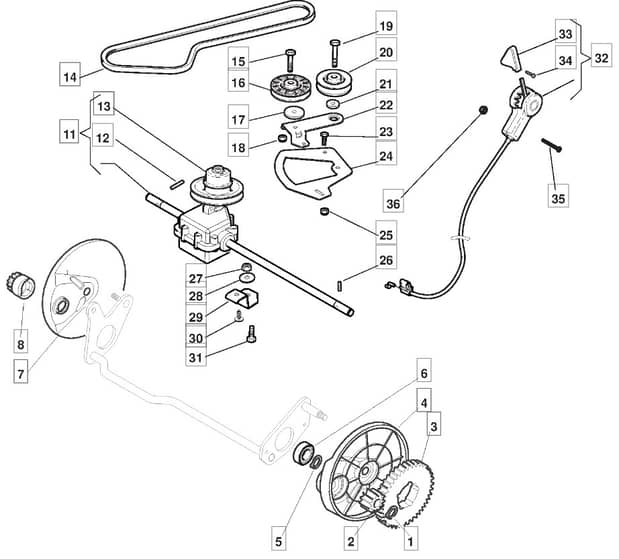

MULCHER INOX 504 PD - 2010 - 291562023/MFR - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield MULCHER INOX 504 PD Parts Diagram

Product Name - MLFI 55 TRBMV

Model Year - 2010

Model Type - MCS 504 TR 4S

Art.N - 291562023/MFR

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122570120/1 In stock	Left Pinion	£6.66 £5.55
3	MO122120105/2 Out of stock	Ring Gear	£8.96 £7.47
4	MO122600092/0 Out of stock	Right Wheel Protection To 31-8-2012	£3.04 £2.53
5	MO112608600/0 In stock	Seeger	£1.39 £1.16
6	MO119216035/0 In stock	Bearing	£3.17 £2.64
7	MO122600093/0 Out of stock	Left Wheel Protection To 31-8-2012	£3.04 £2.53
7	MO322600267/0 Out of stock	Protection. Wheel	£5.44 £4.53
8	MO322570138/0 In stock	Right Pinion	£6.66 £5.55
11	MO181003098/2 Out of stock	Gear Box	£152.38 £126.98
12	MO112645700/0 Out of stock	Elastic Pin	£1.39 £1.16
13	MO122601916/0 Out of stock	Belt Pulley To 31-8-2008	£61.33 £51.11
13	MO122601925/0 Out of stock	Pulley From 01-9-2008 To 31-8-2013	£59.66 £49.72
13	MO122601932/0 Out of stock	Pulley From 01-9-2013	£51.80 £43.17
14	MO135063902/1 In stock	Belt To 31-8-2007	£8.96 £7.47
14	MO135064010/0 In stock	Belt From 01-9-2007	£13.26 £11.05
15	MO112689500/0 Out of stock	Screw	£1.39 £1.16
16	MO122601914/0 In stock	Pulley	£19.43 £16.19
17	MO322680009/0 Out of stock	Washer	£1.66 £1.38
19	MO112674701/0 Out of stock	Screw	£1.39 £1.16
20	MO122601915/0 In stock	Pulley	£19.31 £16.09
21	MO122671656/0 Out of stock	Washer	£6.60 £5.50
22	MO322320007/0 Out of stock	Lever	£17.77 £14.81
23	MO112791011/0 Out of stock	Screw	£1.28 £1.07
26	MO122753000/0 In stock	Pin	£1.39 £1.16
27	MO112155000/0 In stock	Nut	£1.39 £1.16
28	MO112523060/0 In stock	Washer	£1.39 £1.16
29	MO322551655/0 Out of stock	Plate	£16.63 £13.86
30	MO112728704/1 Out of stock	Screw	£1.39 £1.16
31	MO112793102/0 In stock	Screw	£1.39 £1.16
32	MO381007112/0 Out of stock	Speed Control Ass.Y	£40.63 £33.86
33	MO322399820/0 Out of stock	Knob	£3.04 £2.53
34	MO112728300/0 Out of stock	Screw	£1.39 £1.16
35	MO112727787/0 Out of stock	Screw	£1.66 £1.38
36	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.39 £1.16
