MULCHER 501 HP - 2009-2010 - 291501043/UM9 - Mountfield Rotary Mower WBE0702 Cylinder Diagram

Name: MULCHER 501 HP - 2009-2010 - 291501043/UM9 - Mountfield Rotary Mower WBE0702 Cylinder Diagram
SKU: mulcher_501_hp_291501043_um9_wbe0702_cylinder-group
Price: 2.68 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MULCHER 501 HP - 2009-2010 - 291501043/UM9 - Mountfield Rotary Mower WBE0702 Cylinder Diagram

Description

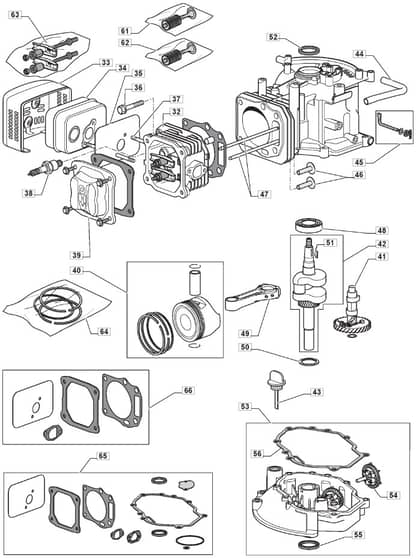

Mountfield MULCHER 501 HP Parts Diagram

Product Name - MULTICLIP 501 HP

Model Year - 2009-2010

Model Type - MCS 504

Art.N - 291501043/UM9

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550244/0 Out of stock	Cylinder Head Assy	£120.52 £100.43
33	MO118550268/1 Out of stock	Muffler Guard	£38.83 £32.36
34	MO118550269/0 Out of stock	Muffler	£33.48 £27.90
35	MO118550270/0 Out of stock	Muffler Gasket	£11.52 £9.60
36	MO118550297/0 In stock	Screw	Was £6.02 £5.02 Special Price £3.73 £3.11
37	MO118550298/0 Out of stock	Stud Bolt	£6.43 £5.36
38	3381 In stock	Spark Plug	£3.84 £3.20
39	MO118550296/1 Out of stock	Cover Comp. Head	£13.93 £11.61
40	MO118550387/0 Out of stock	Piston Assy	£52.22 £43.52
41	MO118550271/0 Out of stock	Camshaft Assy	£34.68 £28.90
42	MO118550385/0 Out of stock	Crankshaft	£91.06 £75.88
43	MO118550381/0 Out of stock	Tank Cap	£18.35 £15.29
44	MO118550377/0 Out of stock	Breather Fuel Pipe	£4.28 £3.57
45	MO118550308/0 Out of stock	Shaft. Governor Arm Assy	£9.84 £8.20
46	MO118550291/0 Out of stock	Valve Lifter Assy	£9.24 £7.70
48	MO118550280/0 Out of stock	Ball Bearing	£22.22 £18.52
49	MO118550284/0 Out of stock	Connecting Rod Assy	£37.49 £31.24
50	MO118550283/0 Out of stock	Washer	£3.22 £2.68
51	MO118550288/0 Out of stock	Woodruff Key	£5.89 £4.91
52	MO118550300/0 Out of stock	Oil Seal	£6.90 £5.75
54	MO118550312/1 Out of stock	Speed Governor Assy	£11.52 £9.60
55	MO118550379/0 Out of stock	Oil Seal	£6.43 £5.36
56	MO118550380/1 Out of stock	Crankcase Gasket	£15.26 £12.72
61	MO118550292/0 Out of stock	Intake Valve Assy	£23.57 £19.64
62	MO118550294/0 Out of stock	Exhaust Valve Assy	£30.80 £25.67
63	MO118550273/0 Out of stock	Valve Arm Set	£13.13 £10.94
64	MO118550384/0 In stock	Piston. Ring Set	£17.94 £14.95
65	MO118550403/0 Out of stock	Engine Gasket Set	£58.92 £49.10
66	MO118550405/0 Out of stock	Cylinder Head Gasket Set	£27.92 £23.27
