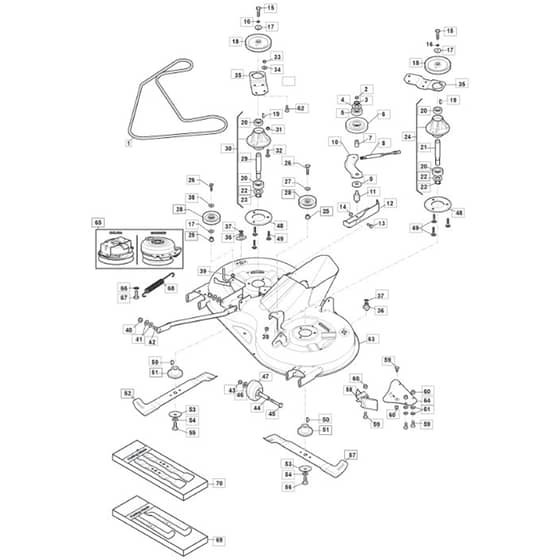

MTF 1638H - 2021 - 2T2620283/MTF - Mountfield Ride On Mower 98cm Deck Diagram

Description

Mountfield MTF 1638H Parts Diagram

Product Name - MTF 1638H

Model Year - 2021

Model Type - MPS 98 Hydro

Art.N - 2T2620283/MTF

Be the first to review this product

0 product questions

	Part No.	Details
1	MO135061509/0LC In stock	Drive Belt	£75.04 £62.53
2	MO112293201/0 In stock	Nut	£1.61 £1.34
4	MO112610800/0 Out of stock	Seeger	£1.61 £1.34
5	MO119216048/0 In stock	Bearing	£17.41 £14.51
6	MO125601595/0 Out of stock	Pulley	£33.48 £27.90
7	MO125160052/0 Out of stock	Spacer	£2.81 £2.34
8	MO382004618/0 In stock	Wire	£21.38 £17.82
9	MO125040635/0 Out of stock	Bushing	£4.15 £3.46
10	MO325318343/0 Out of stock	Lever	£12.73 £10.61
11	MO125160049/0 Out of stock	Spacer	£6.96 £5.80
12	MO325785391/0 Out of stock	Bracket	£20.50 £17.08
13	MO112818690/0 Out of stock	Screw	£1.70 £1.42
14	MO112154210/0 In stock	Nut	£1.61 £1.34
15	MO112793102/0 In stock	Screw	£1.48 £1.23
16	MO112540260/0 Out of stock	Washer	£1.48 £1.23
17	MO125670007/0 Out of stock	Washer	£1.87 £1.56
18	MO125601604/0 Out of stock	Pulley	£49.55 £41.29
19	MO112139480/0 In stock	Feather	£1.61 £1.34
20	MO119216047/0 In stock	Bearing	£15.00 £12.50
21	MO125020804/0 In stock	Blade Shaft	£33.48 £27.90
22	MO325160501/1 Out of stock	Dust Cover Disc	£1.66 £1.38
23	MO112609260/0 Out of stock	Seeger	£1.74 £1.45
24	MO382207204/1 In stock	Flange Assy	£95.48 £79.57
25	MO125160110/0 Out of stock	Spacer	£3.22 £2.68
26	MO112691115/0 Out of stock	Screw	£1.48 £1.23
27	MO112524010/0 Out of stock	Washer	£1.74 £1.45
28	MO325601599/0 In stock	Pulley (Steel) To S.N 21KA3RON000770	£18.07 £15.06
28	MO125601613/0 Out of stock	Pulley (Plastic) From S.N 21KA3RON000771	£12.18 £10.15
29	MO125020805/0 Out of stock	Right Blade Shaft	£33.48 £27.90
30	MO382207205/1 In stock	Flange Assy	£95.48 £79.57
34	MO112523060/0 In stock	Washer	£1.48 £1.23
35	MO325774617/0 Out of stock	Stiffening	£12.86 £10.72
36	MO325033086/0 Out of stock	Water Hose Connection	£1.66 £1.38
37	MO119035000/0 Out of stock	Or Ring	£4.82 £4.02
40	MO112156602/0 In stock	Nut	£1.34 £1.12
41	MO325670008/1 Out of stock	Washer	£1.66 £1.38
42	MO382000565/1 Out of stock	Equalizer Rod	£19.36 £16.13
44	MO125160072/0 Out of stock	Spacer	£3.74 £3.12
45	MO112692100/0 Out of stock	Screw	£2.68 £2.23
46	MO112521350/0 In stock	Washer	£1.48 £1.23
47	MO182700005/0 Out of stock	Anti Scalp Wheel Ø90 ø90	£17.18 £14.32
48	MO325160505/0 Out of stock	Disc	£12.10 £10.08
49	MO112818700/0 In stock	Screw	£1.48 £1.23
50	MO112139100/0 In stock	Key	£1.48 £1.23
51	MO125463200/0 In stock	Blade Holder	£9.04 £7.53
52	MO182004364/0 Out of stock	Right Mulching Blade Mulching	£21.65 £18.04
52	MO182004362/0 In stock	Right Blade. Winged Winged	£26.11 £21.76
53	MO122160400/0 In stock	Elastic Disc	£1.74 £1.45
54	MO112523080/0 In stock	Washer	£1.48 £1.23
55	MO112735695/1 In stock	Screw	£3.61 £3.01
56	MO112735694/0 In stock	Screw	£1.87 £1.56
57	MO182004346/0 Out of stock	Left Blade. Mulching Mulching	£21.96 £18.30
57	MO182004363/0 In stock	Left Blade. Winged Winged	£26.74 £22.28
58	MO325140111/0 Out of stock	Deflector	£6.36 £5.30
59	MO112791213/1 Out of stock	Screw	£1.48 £1.23
60	MO112154510/0 In stock	Nut	£1.48 £1.23
61	MO112523040/0 In stock	Washer	£1.48 £1.23
63	MO382564118/1 Out of stock	Cutting Plate Black	£585.61 £488.01
64	MO325785509/0 Out of stock	Rear Deflector Suppot	£9.80 £8.17
65	MO118399069/1 Out of stock	Electromagnetic Clutch Warner	£381.62 £318.02
65	MO118399075/1 Out of stock	Electromagnetic Clutch Ogura	£281.20 £234.33
66	MO112543000/0 Out of stock	Washer	£1.48 £1.23
67	MO112737320/0 In stock	Screw	£4.15 £3.46
68	MO125430277/1 Out of stock	Spring	£2.00 £1.67
69	MO1134-9226-01 In stock	Winged Blades Stiga packed into 182004362.0 + 182004363.0	£65.62 £54.68
70	MO1134-9234-01 Out of stock	Mulching Blade 98cm [Stiga Pack]	£48.20 £40.17
