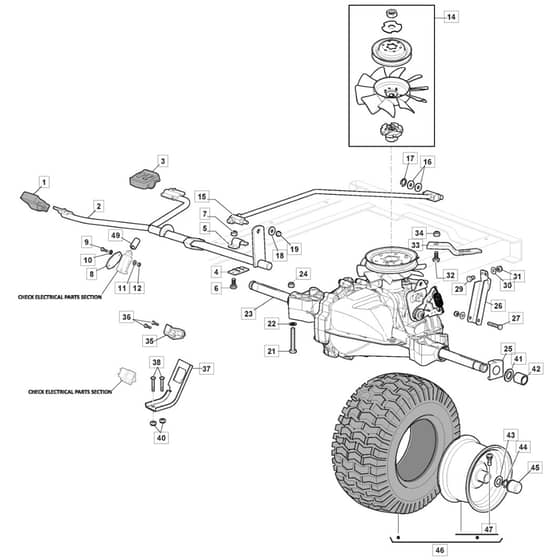

MTF 1430 HD - 2022-2023 - 2T2110483/MTF - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield MTF 1430 HD Parts Diagram

Product Name - MTF 1430HD

Model Year - 2022-2023

Model Type - MPNS 84 Hydro

Art.N - 2T2110483/MTF

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325110274/0 Out of stock	Clamp Cover Front	£5.60 £4.67
2	MO382000574/2 Out of stock	Drive Pedal	£50.93 £42.44
3	MO325110331/0 Out of stock	Clamp Cover Rear	£6.62 £5.52
4	MO325785350/0 Out of stock	Support	£1.66 £1.38
5	MO325547231/1 Out of stock	Plate	£4.20 £3.50
8	MO327546019/0 Out of stock	Neutral Switch Fixing Plate	£1.40 £1.17
9	MO112735602/0 Out of stock	Screw	£1.48 £1.23
10	MO112540020/0 Out of stock	Washer	£1.48 £1.23
11	MO112581100/0 Out of stock	Grower	£1.27 £1.06
12	MO112290791/0 Out of stock	Nut	£1.48 £1.23
14	MO1139-2201-01 Out of stock	Kit. Fan Pulley	£154.00 £128.33
15	MO382000573/1 Out of stock	Rod	£30.55 £25.46
16	MO325670011/0 Out of stock	Antifriction Washer	£1.66 £1.38
17	MO112000940/0 Out of stock	Benzing Ring	£1.48 £1.23
18	MO112523040/0 In stock	Washer	£1.48 £1.23
19	MO112154510/0 In stock	Nut	£1.48 £1.23
21	MO112691600/0 Out of stock	Screw	£1.74 £1.45
22	MO112521350/0 In stock	Washer	£1.48 £1.23
23	MO118400921/0 Out of stock	Transmission (Hydro-Gear T2-Adbf-2X3C-1Rx1)	£890.47 £742.06
24	MO112155000/0 In stock	Nut	£1.48 £1.23
25	MO325670026/0 Out of stock	Washer	£7.13 £5.94
26	MO325785349/1 Out of stock	Support	£11.96 £9.97
27	MO112691700/0 Out of stock	Screw	£1.74 £1.45
29	MO112792611/0 Out of stock	Screw	£1.48 £1.23
30	MO112523060/0 In stock	Washer	£1.48 £1.23
32	MO112791213/1 Out of stock	Screw	£1.48 £1.23
33	MO325318251/0 Out of stock	Lever	£3.18 £2.65
35	MO325060034/1 Out of stock	Cam	£2.04 £1.70
36	MO112735403/0 In stock	Screw	£1.48 £1.23
37	MO325774573/0 Out of stock	Clamp	£4.97 £4.14
38	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
41	MO125670005/2 Out of stock	Washer	£3.89 £3.24
42	MO125160058/1 Out of stock	Spacer	£3.89 £3.24
44	MO112001010/0 Out of stock	Benzing Ring	£1.74 £1.45
45	MO322110233/0 In stock	Hub Cover Standard Black	£1.66 £1.38
46	MO382680104/0 Out of stock	Wheel Assy	£158.46 £132.05
47	MO125950000/0 Out of stock	Valve	£5.09 £4.24
49	MO118203851/0 Out of stock	Cap	£1.20 £1.00
