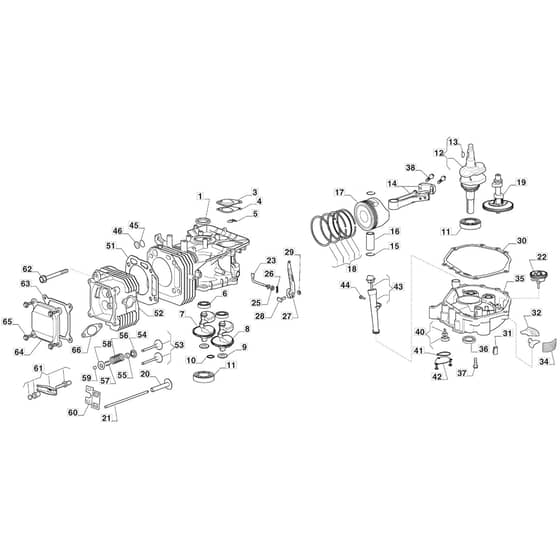

MTF 1430 HD - 2022-2023 - 2T2110483/MTF - Mountfield Ride On Mower Engine Cylinder Diagram

Description

Mountfield MTF 1430 HD Parts Diagram

Product Name - MTF 1430HD

Model Year - 2022-2023

Model Type - MPNS 84 Hydro

Art.N - 2T2110483/MTF

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118551418/0 Out of stock	Oil Seal	£11.38 £9.48
4	MO118551229/0 Out of stock	Gasket	£3.48 £2.90
6	MO118551284/0 Out of stock	Bearing	£12.72 £10.60
7	MO118551242/0 Out of stock	Counterweight	£49.55 £41.29
8	MO118551243/0 Out of stock	Counterweight	£49.55 £41.29
9	MO118551282/0 Out of stock	Washer	£1.87 £1.56
10	MO118551286/0 Out of stock	O Ring	£1.61 £1.34
11	MO118550227/0 Out of stock	Ball Bearing	£20.35 £16.96
12	MO118550232/0 Out of stock	Crankshaft	£187.46 £156.22
13	MO118550288/0 Out of stock	Woodruff Key	£5.89 £4.91
14	MO118552503/0 Out of stock	Connecting Rod Assy	£23.70 £19.75
15	MO118551283/0 Out of stock	Washer. Piston Pin	£1.34 £1.12
16	MO118551241/0 Out of stock	Piston Pin	£6.96 £5.80
17	MO118551519/0 Out of stock	Piston	£36.16 £30.13
18	MO118551518/0 Out of stock	Piston. Ring Set	£32.14 £26.78
19	MO118550243/0 Out of stock	Camshaft Assy	£106.45 £88.71
20	MO118551252/0 Out of stock	Valve Lifter	£5.35 £4.46
21	MO118550242/1 Out of stock	Push Rods Assy	£5.63 £4.69
22	MO118550347/0 Out of stock	Speed Governor Assy	£18.74 £15.62
23	MO118551268/0 Out of stock	Shaft. Governor Arm	£9.50 £7.92
25	MO118551285/0 Out of stock	Oil Seal	£3.31 £2.76
30	MO118550355/1 Out of stock	Crankcase Gasket	£16.07 £13.39
32	MO118551257/1 Out of stock	Cover	£7.64 £6.37
34	MO118551256/1 Out of stock	Oil Strainer	£4.02 £3.35
35	MO118551207/0 Out of stock	Crankcase Cover	£160.69 £133.91
37	MO112691115/0 Out of stock	Screw	£1.48 £1.23
38	MO118552504/0 Out of stock	Bolt	£3.48 £2.90
40	MO118550224/1 Out of stock	Oil Pump	£19.88 £16.57
41	MO118551287/0 Out of stock	Gasket	£1.61 £1.34
42	MO118550223/0 Out of stock	Oli Pump Cover	£5.35 £4.46
44	MO112674701/0 Out of stock	Screw	£1.48 £1.23
45	MO118551230/0 Out of stock	Breather Valve	£2.68 £2.23
46	MO118551228/0 Out of stock	Cover	£4.28 £3.57
52	MO118551503/0 Out of stock	Cylinder Head	£154.00 £128.33
54	MO118551245/0 Out of stock	Plate	£3.06 £2.55
55	MO118551248/0 Out of stock	Gasket	£7.90 £6.58
56	MO118550529/0 Out of stock	Spring Valve	£5.76 £4.80
57	MO118551247/0 Out of stock	Valve Keeper	£1.48 £1.23
58	MO118551246/0 Out of stock	Retainer	£4.42 £3.68
59	MO118551244/0 Out of stock	Valve Cap	£2.81 £2.34
61	MO118551249/0 In stock	Valve Arm Set	£7.76 £6.47
63	MO118551531/0 In stock	Gasket	£15.80 £13.17
64	MO118551534/0 In stock	Cover Comp. Head	£8.04 £6.70
65	MO118552509/0 Out of stock	Bolt	£1.48 £1.23
66	MO118551272/0 Out of stock	Muffler Gasket	£2.41 £2.01
