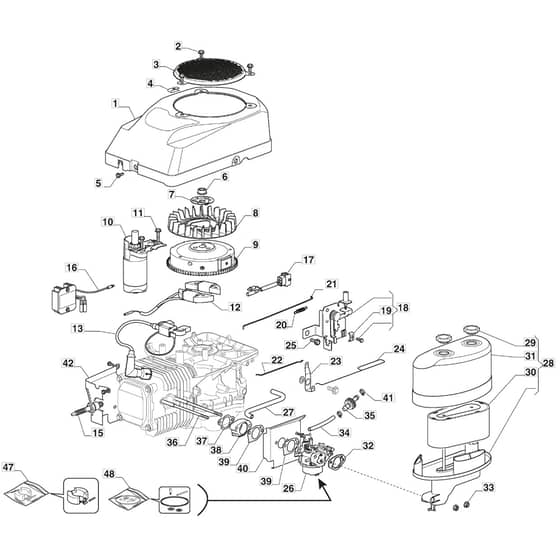

MTF 1430 HD - 2022-2023 - 2T2110483/MTF - Mountfield Ride On Mower Engine Assy Diagram

MTF 1430 HD - 2022-2023 - 2T2110483/MTF - Mountfield Ride On Mower Engine Assy Diagram
MTF 1430 HD - 2022-2023 - 2T2110483/MTF - Mountfield Ride On Mower Engine Assy Diagram

Description

Mountfield MTF 1430 HD Parts Diagram

Product Name - MTF 1430HD

Model Year - 2022-2023

Model Type - MPNS 84 Hydro

Art.N - 2T2110483/MTF

Ref. Img. Part No. Details
  1 Cover Assy
Cover Assy
MO118551261/0 Out of stock
Cover Assy
£74.99 £62.49

  2 Screw
Screw
MO112790500/0 Out of stock
Screw
£1.87 £1.56

  3 Fan Cover
Fan Cover
MO118550203/0 Out of stock
Fan Cover
£41.51 £34.59

  4 Plate
Plate
MO118551280/0 Out of stock
Plate
£1.61 £1.34

  5 Screw
Screw
MO112791213/1 Out of stock
Screw
£1.48 £1.23

  6 Nut
Nut
MO118550237/0 Out of stock
Nut
£3.22 £2.68

  7 Starter Cup
Starter Cup
MO118550236/0 Out of stock
Starter Cup
£6.02 £5.02

  8 Flywheel Fan
Flywheel Fan
MO118550235/1 Out of stock
Flywheel Fan
£23.90 £19.92

  9 Flywheel Ass.Y
Flywheel Ass.Y
MO118550234/2 Out of stock
Flywheel Ass.Y
£214.25 £178.54

  10 Start Motor Assy
Start Motor Assy
MO118551440/0 Out of stock
Start Motor Assy
£154.00 £128.33

  11 Screw
Screw
MO112691100/0 Out of stock
Screw
£1.48 £1.23

  12 Coil Assy. Charge
Coil Assy. Charge
MO118551441/0 Out of stock
Coil Assy. Charge
£54.90 £45.75

  13 Elettronic Coil
Elettronic Coil
MO118551438/0 Out of stock
Elettronic Coil
£41.51 £34.59

  15 Spark Plug
Spark Plug
3381 In stock
Spark Plug
£3.84 £3.20

  16 Rectfier
Rectfier
MO118551428/1 Out of stock
Rectfier
£54.90 £45.75

  17 Output Wire. Rectifier
Output Wire. Rectifier
MO118551439/0 Out of stock
Output Wire. Rectifier
£12.18 £10.15

  18 Remote Control Assy
Remote Control Assy
MO118550331/1 Out of stock
Remote Control Assy
£40.18 £33.48

  20 Spring
Spring
MO118550213/0 Out of stock
Spring
£2.00 £1.67

  21 Governor Link
Governor Link
MO118551219/0 Out of stock
Governor Link
£5.09 £4.24

  22 Rod Choke
Rod Choke
MO118551218/0 Out of stock
Rod Choke
£4.55 £3.79

  24 Throttle Rod
Throttle Rod
MO118551221/0 Out of stock
Throttle Rod
£2.81 £2.34

  26 Carburettor
Carburettor
MO118551520/0 Out of stock
Carburettor
£81.68 £68.07

  27 Breather Fuel Pipe
Breather Fuel Pipe
MO118550225/1 Out of stock
Breather Fuel Pipe
£8.44 £7.03

  28 Air Cleaner Assy
Air Cleaner Assy
MO118550202/2 Out of stock
Air Cleaner Assy
£44.18 £36.82

  29 Knob
Knob
MO118550201/0 Out of stock
Knob
£8.30 £6.92

  30 Air Filter
Air Filter
MO118550199/0 In stock
Air Filter
£23.03 £19.19

  31 Air Cleaner Cover
Air Cleaner Cover
MO118550200/0 Out of stock
Air Cleaner Cover
£15.94 £13.28

  32 Air Filter Gasket
Air Filter Gasket
MO118550762/0 Out of stock
Air Filter Gasket
£5.35 £4.46

  33 Nut
Nut
MO112292102/0 In stock
Nut
£1.61 £1.34

  34 Fuel Pipe
Fuel Pipe
MO118550432/0 Out of stock
Fuel Pipe
£2.68 £2.23

  35 Fuel Filter
Fuel Filter
MO118550427/0 In stock
Fuel Filter
£5.22 £4.35

  36 Double-Screw Bolt
Double-Screw Bolt
MO118551279/0 Out of stock
Double-Screw Bolt
£3.61 £3.01

  37 Intake Manifold Gasket
Intake Manifold Gasket
MO118551263/0 Out of stock
Intake Manifold Gasket
£1.74 £1.45

  38 Intake Manifold
Intake Manifold
MO118551265/0 Out of stock
Intake Manifold
£6.96 £5.80

  39 Carburetor Gasket
Carburetor Gasket
MO118551262/0 Out of stock
Carburetor Gasket
£1.74 £1.45

  40 Guard
Guard
MO118551259/0 Out of stock
Guard
£19.81 £16.51

  41 Clamp. Fuel Line
Clamp. Fuel Line
MO118552508/0 Out of stock
Clamp. Fuel Line
£2.15 £1.79

  47 Kit Repair. Carburettor
Kit Repair. Carburettor
MO118550440/0 Out of stock
Kit Repair. Carburettor
£9.91 £8.26

  48 Carburettor Gasket Set
Carburettor Gasket Set
MO118550442/0 Out of stock
Carburettor Gasket Set
£15.00 £12.50


Description

Mountfield MTF 1430 HD Parts Diagram

Product Name - MTF 1430HD

Model Year - 2022-2023

Model Type - MPNS 84 Hydro

Art.N - 2T2110483/MTF
