Description

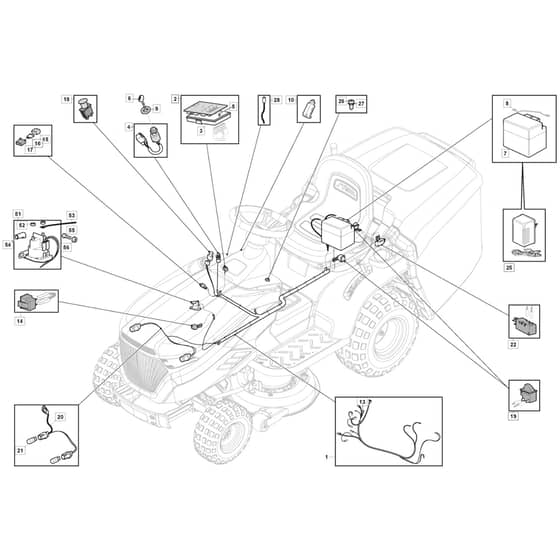

Mountfield MTF 1430 HD Parts Diagram

Product Name - MTF 1430HD

Model Year - 2022-2023

Model Type - MPNS 84 Hydro

Art.N - 2T2110483/MTF

Ref. Img. Part No. Details
  1 Electronic Card
Electronic Card
MO382722472/1 In stock
Electronic Card
£60.83 £50.69

  2 Electronic Card
Electronic Card
MO382722476/1 Out of stock
Electronic Card
£59.04 £49.20

  3 Card Protection
Card Protection
MO325600090/1 Out of stock
Card Protection
£4.45 £3.71

  4 Starting Switch
Starting Switch
MO118450075/1 In stock
Starting Switch
£23.03 £19.19

  5 Screw
Screw
MO112735105/0 Out of stock
Screw
£1.48 £1.23

  6 Starting Key
Starting Key
MO118210023/0 In stock
Starting Key
£6.70 £5.58

  7 Battery 12V 18Ah
Battery 12V 18Ah
MO118120068/0 In stock
Battery 12V 18Ah
£107.95 £89.96

  8 Spring
Spring
MO125430265/1 Out of stock
Spring
£1.74 £1.45

  9 Screwed Ring
Screwed Ring
MO118400863/0 Out of stock
Screwed Ring
£1.61 £1.34

  10 Microswitch
Microswitch
MO119410609/1LC In stock
Microswitch
£25.85 £21.54

  13 Relay Only For Honda Engines
Relay Only For Honda Engines
MO133567000/0 Out of stock
Relay Only For Honda Engines
£12.92 £10.77

  14 Microswitch
Microswitch
MO119410623/0 Out of stock
Microswitch
£7.24 £6.03

  15 Cover
Cover
MO133215000/0 Out of stock
Cover
£3.35 £2.79

  16 Fuse 10 A 10A
Fuse 10 A 10A
MO133340040/0 Out of stock
Fuse 10 A 10A
£2.15 £1.79

  16 Fuse 25 A 25A
Fuse 25 A 25A
MO133340036/0 Out of stock
Fuse 25 A 25A
£1.61 £1.34

  17 Fuse Carrier
Fuse Carrier
MO133500007/0 Out of stock
Fuse Carrier
£6.96 £5.80

  18 Clutch Switch Yellow
Clutch Switch Yellow
MO118450073/0 In stock
Clutch Switch Yellow
£14.20 £11.83

  19 Microswitch From S.N 23BA3RON011715
Microswitch From S.N 23BA3RON011715
MO119410633/0 Out of stock
Microswitch From S.N 23BA3RON011715
£5.94 £4.95

  19 Microswitch To S.N 23BA3RON011714
Microswitch To S.N 23BA3RON011714
MO119410622/1 In stock
Microswitch To S.N 23BA3RON011714
£6.29 £5.24

  20 Headlights Cable [Led]
Headlights Cable [Led]
MO182040186/0 Out of stock
Headlights Cable [Led]
£10.19 £8.49

  21 Lamp For Lights Headlight Bulb
Lamp For Lights Headlight Bulb
MO118459100/0 Out of stock
Lamp For Lights Headlight Bulb
£2.00 £1.67

  22 Microswitch
Microswitch
MO119410605/1 In stock
Microswitch
£37.49 £31.24

  25 Battery Charger Kit Uk-Ce Plug CE + BS Plug To S.N 22LA3RON011276
Battery Charger Kit Uk-Ce Plug CE + BS Plug To S.N 22LA3RON011276
MO1134-9250-01 In stock
Battery Charger Kit Uk-Ce Plug CE + BS Plug To S.N 22LA3RON011276
£66.20 £55.17

  25 Battery Charger Kit Uk-Ce Plug CE + BS Plug From S.N 22LA3RON011277
Battery Charger Kit Uk-Ce Plug CE + BS Plug From S.N 22LA3RON011277
MO182180190/1 Out of stock
Battery Charger Kit Uk-Ce Plug CE + BS Plug From S.N 22LA3RON011277
£48.30 £40.25

  26 Push Button Reverse Gear
Push Button Reverse Gear
MO325605003/0 Out of stock
Push Button Reverse Gear
£42.01 £35.01

  27 Screwed Ring
Screwed Ring
MO325256250/0 Out of stock
Screwed Ring
£2.42 £2.02

  28 Lamp Holder Cable Assy LED cable for alarm on dashboard
Lamp Holder Cable Assy LED cable for alarm on dashboard
MO182040174/0 Out of stock
Lamp Holder Cable Assy LED cable for alarm on dashboard
£5.22 £4.35

  51 Solenoid
Solenoid
MO118736112/0 In stock
Solenoid
£36.16 £30.13

  52 Nut
Nut
MO112361005/0 Out of stock
Nut
£4.02 £3.35

  53 Cable
Cable
MO125065002/0 Out of stock
Cable
£9.97 £8.31

  54 Protection
Protection
MO118564864/1 Out of stock
Protection
£5.63 £4.69

  55 Screw
Screw
MO112790781/0 Out of stock
Screw
£1.48 £1.23

  56 Nut
Nut
MO112154510/0 In stock
Nut
£1.48 £1.23


Description

Mountfield MTF 1430 HD Parts Diagram

Product Name - MTF 1430HD

Model Year - 2022-2023

Model Type - MPNS 84 Hydro

Art.N - 2T2110483/MTF
