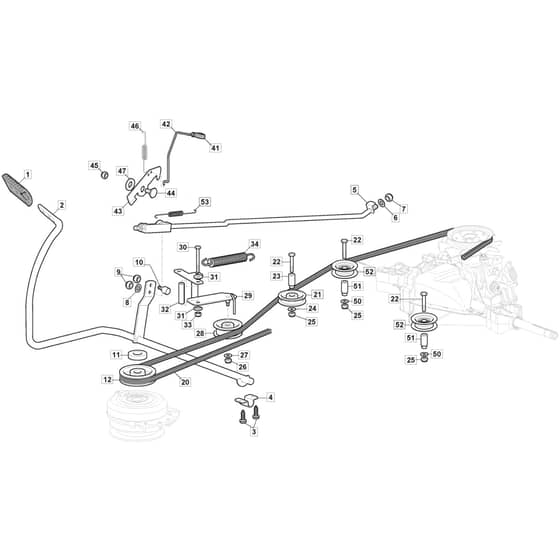

MTF 1430 HD - 2019-2022 - 2T2110283/MTF - Mountfield Ride On Mower Controls Diagram

Description

Mountfield MTF 1430 HD Parts Diagram

Product Name - MTF 1430HD

Model Year - 2019-2022

Model Type - MPNS 84 Hydro

Art.N - 2T2110283/MTF

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325110409/0 Out of stock	Clamp Cover	£6.88 £5.73
2	MO382000641/1 Out of stock	Pedal	£49.66 £41.38
3	MO112735599/0 Out of stock	Screw	£1.48 £1.23
4	MO325547231/1 Out of stock	Plate	£4.20 £3.50
5	MO382000636/0 Out of stock	Rod To 07-11-2021	£29.28 £24.40
5	MO382000636/1 Out of stock	Brake Rod Assy From 08-11-2021	£27.28 £22.73
6	MO112521360/0 In stock	Washer	£1.48 £1.23
7	MO112156602/0 In stock	Nut	£1.34 £1.12
8	MO325670011/0 Out of stock	Antifriction Washer	£1.66 £1.38
10	MO125510166/0 Out of stock	Pin	£3.35 £2.79
11	MO125160021/0 Out of stock	Spacer	£5.63 £4.69
12	MO125601577/0 Out of stock	Pulley	£42.85 £35.71
20	MO135062020/1 In stock	Trapezoidal Belt	£42.85 £35.71
21	MO125601613/0 Out of stock	Pulley (Plastic)	£12.18 £10.15
21	MO325601599/0 In stock	Pulley (Steel)	£18.07 £15.06
22	MO112691400/0 Out of stock	Screw	£1.48 £1.23
23	MO125160107/0 Out of stock	Spacer	£2.68 £2.23
24	MO112523060/0 In stock	Washer	£1.48 £1.23
25	MO112155000/0 In stock	Nut	£1.48 £1.23
28	MO125601554/0 In stock	Pulley	£24.43 £20.36
29	MO382318245/1 Out of stock	Tightener Lever	£18.46 £15.38
30	MO112691600/0 Out of stock	Screw	£1.74 £1.45
31	MO125038021/0 Out of stock	Bushing	£1.20 £1.00
32	MO125160027/0 Out of stock	Spacer	£2.41 £2.01
34	MO125430262/0 Out of stock	Spring	£5.50 £4.58
41	MO125394509/1 In stock	Knob	£2.41 £2.01
42	MO125033113/0 Out of stock	Rod	£3.35 £2.79
43	MO325253011/1 Out of stock	Hook	£3.56 £2.97
44	MO122524970/3 Out of stock	Pin	£1.61 £1.34
46	MO125430213/0 Out of stock	Spring	£1.61 £1.34
50	MO112521350/0 Out of stock	Washer	£1.48 £1.23
51	MO125160111/0 Out of stock	Spacer	£4.02 £3.35
52	MO125601612/0 In stock	Pulley (Steel)	£33.48 £27.90
53	MO125430269/2 Out of stock	Spring	£2.42 £2.02
