Description

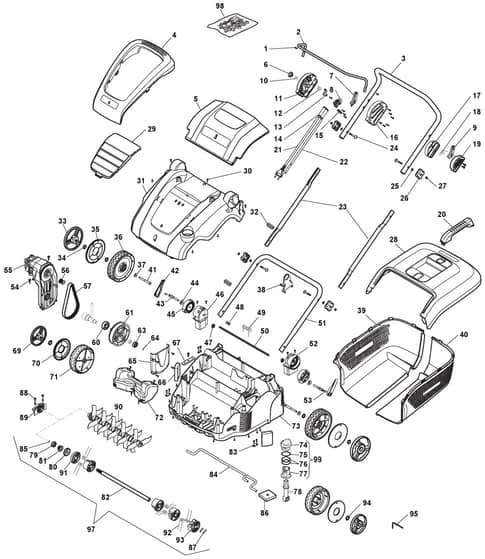

Mountfield MSR 38 Parts Diagram

Model Year - 2014-2016

Model Type - SC 1.5 E

Art.N - 290002153/M14

Ref. Img. Part No. Details
  1 Screw
Screw
MO112726388/0 Out of stock
Screw
£1.39 £1.16

  3 Handle. Upper Part
Handle. Upper Part
MO118802912/0 Out of stock
Handle. Upper Part
£58.40 £48.67

  5 Stone Guard
Stone Guard
MO118802946/0 Out of stock
Stone Guard
£19.24 £16.03

  7 Right Bracket
Right Bracket
MO118802660/0 Out of stock
Right Bracket
£1.78 £1.48

  9 Left Bracket
Left Bracket
MO118802659/0 Out of stock
Left Bracket
£1.78 £1.48

  10 Spring
Spring
MO118802716/0 Out of stock
Spring
£1.39 £1.16

  11 Micro Switch. Right
Micro Switch. Right
MO118802658/0 Out of stock
Micro Switch. Right
£5.34 £4.45

  12 Spring
Spring
MO118802714/0 Out of stock
Spring
£1.39 £1.16

  13 Throttle Lever
Throttle Lever
MO118802655/0 Out of stock
Throttle Lever
£1.74 £1.45

  14 Wire Sheath
Wire Sheath
MO118802663/0 Out of stock
Wire Sheath
£1.91 £1.59

  15 Double Line Block
Double Line Block
MO118802656/0 Out of stock
Double Line Block
£1.20 £1.00

  16 Micro Switch. Left
Micro Switch. Left
MO118802657/0 Out of stock
Micro Switch. Left
£5.34 £4.45

  17 Right Fulcrum
Right Fulcrum
MO118802662/0 Out of stock
Right Fulcrum
£3.68 £3.07

  18 Spring
Spring
MO118802715/0 Out of stock
Spring
£1.39 £1.16

  19 Left Fulcrum
Left Fulcrum
MO118802661/0 Out of stock
Left Fulcrum
£3.68 £3.07

  20 Handle
Handle
MO118802919/0 Out of stock
Handle
£4.31 £3.59

  21 Cable
Cable
MO118802688/0 Out of stock
Cable
£8.51 £7.09

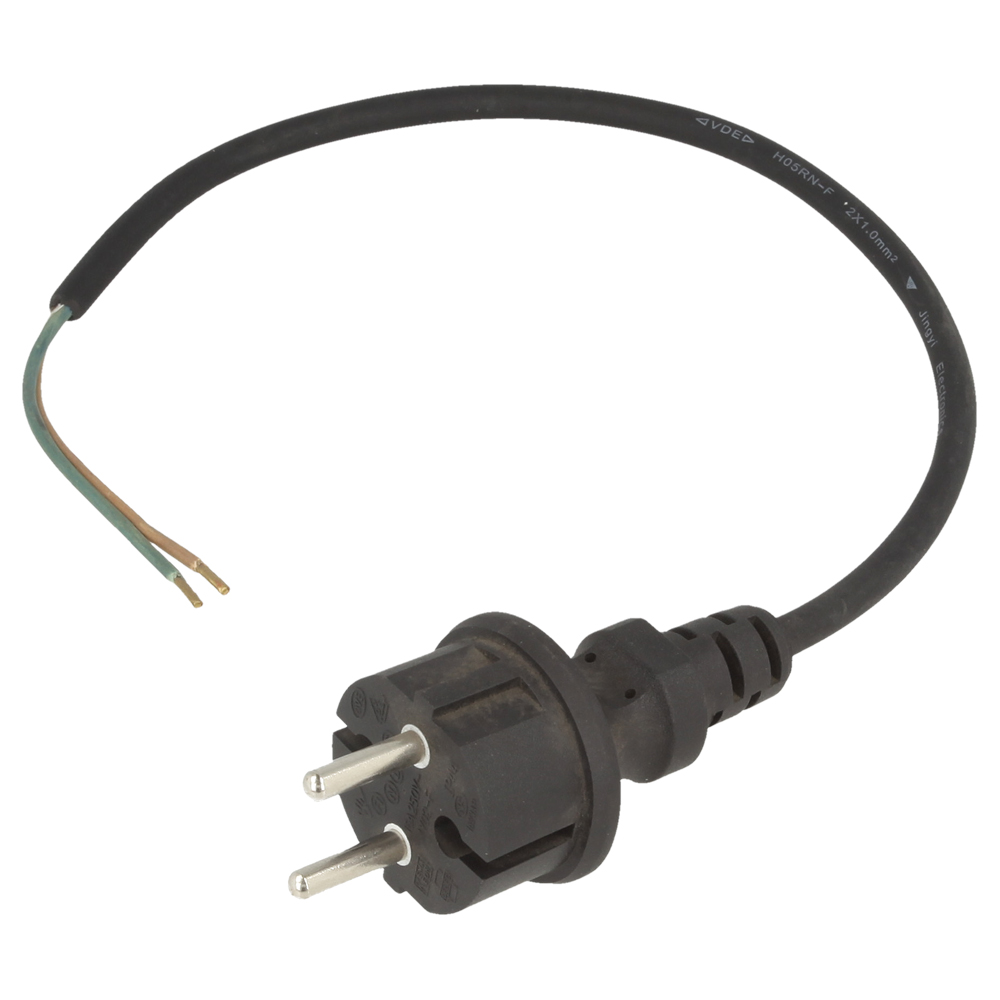

  22 Electric Cable
Electric Cable
MO118802687/0 Out of stock
Electric Cable
£11.17 £9.31

  23 Handle. Middle Part
Handle. Middle Part
MO118802913/0 Out of stock
Handle. Middle Part
£33.97 £28.31

  24 Screw
Screw
MO112689500/0 Out of stock
Screw
£1.39 £1.16

  25 Washer
Washer
MO2312150 Out of stock
Washer
£1.20 £1.00

  26 Knob
Knob
MO118802898/0 Out of stock
Knob
£4.45 £3.71

  27 Nut
Nut
MO112292100/0 Out of stock
Nut
£1.28 £1.07

  28 Grass-Box. Upper
Grass-Box. Upper
MO118802949/0 Out of stock
Grass-Box. Upper
£36.83 £30.69

  30 Screw
Screw
MO6981116 Out of stock
Screw
£1.26 £1.05

  31 Cover. White
Cover. White
MO118803052/0 Out of stock
Cover. White
£45.34 £37.78

  32 Hook
Hook
MO118802664/0 Out of stock
Hook
£1.20 £1.00

  35 Internal Wheel Protectection
Internal Wheel Protectection
MO118802649/0 Out of stock
Internal Wheel Protectection
£3.95 £3.29

  36 Rear Wheel
Rear Wheel
MO118802650/0 Out of stock
Rear Wheel
£10.40 £8.67

  37 Washer
Washer
MO122671651/0 In stock
Washer
£1.78 £1.48

  38 Cable Holder
Cable Holder
MO118802652/0 Out of stock
Cable Holder
£3.56 £2.97

  39 Grass-Box. R Lower
Grass-Box. R Lower
MO118802947/0 Out of stock
Grass-Box. R Lower
£21.34 £17.78

  40 Grass-Box. L Lower
Grass-Box. L Lower
MO118802948/0 Out of stock
Grass-Box. L Lower
£21.91 £18.26

  41 Rear Axle
Rear Axle
MO118802697/0 Out of stock
Rear Axle
£4.31 £3.59

  42 Knob
Knob
MO118802921/0 Out of stock
Knob
£4.45 £3.71

  43 Screw
Screw
MO118802693/0 Out of stock
Screw
£4.20 £3.50

  44 Washer
Washer
MO118802700/0 Out of stock
Washer
£1.66 £1.38

  45 Handle Joint
Handle Joint
MO118802920/0 Out of stock
Handle Joint
£9.14 £7.62

  47 Nut
Nut
MO112155000/0 In stock
Nut
£1.39 £1.16

  48 Wire Connector
Wire Connector
MO118801615/0 Out of stock
Wire Connector
£1.20 £1.00

  49 Spring
Spring
MO118802645/0 Out of stock
Spring
£2.03 £1.69

  50 Axle
Axle
MO118802643/0 Out of stock
Axle
£4.06 £3.38

  51 Black Lower Handle
Black Lower Handle
MO118803054/0 Out of stock
Black Lower Handle
£34.28 £28.57

  52 Joint Left
Joint Left
MO118802679/0 Out of stock
Joint Left
£11.23 £9.36

  53 Pin
Pin
MO118802916/0 Out of stock
Pin
£2.54 £2.12

  54 Screw
Screw
MO118810099/0 Out of stock
Screw
£2.29 £1.91

  55 Electric Motor 1500W
Electric Motor 1500W
MO118802683/0 Out of stock
Electric Motor 1500W
£123.17 £102.64

  56 Motor Pulley
Motor Pulley
MO118802712/0 Out of stock
Motor Pulley
£10.92 £9.10

  57 Belt
Belt
MO118802681/0 Out of stock
Belt
£15.29 £12.74

  60 Bearing
Bearing
MO118802907/0 Out of stock
Bearing
£11.81 £9.84

  63 Ball Bearing
Ball Bearing
MO3112230 Out of stock
Ball Bearing
£4.45 £3.71

  64 Seeger Ring
Seeger Ring
MO3353020 Out of stock
Seeger Ring
£1.28 £1.07

  65 Engine Cover
Engine Cover
MO118802671/0 Out of stock
Engine Cover
£9.52 £7.93

  66 Filter
Filter
MO118802691/0 Out of stock
Filter
£5.34 £4.45

  67 Fixing Plate
Fixing Plate
MO118802718/0 Out of stock
Fixing Plate
£3.80 £3.17

  70 Internal Wheel Protectection
Internal Wheel Protectection
MO118802648/0 Out of stock
Internal Wheel Protectection
£2.92 £2.43

  71 Front Wheel
Front Wheel
MO118802674/0 Out of stock
Front Wheel
£9.85 £8.21

  74 Knob
Knob
MO118802943/0 Out of stock
Knob
£5.98 £4.98

  76 Washer
Washer
MO118802699/0 Out of stock
Washer
£1.54 £1.28

  77 Nut
Nut
MO118802673/0 Out of stock
Nut
£3.56 £2.97

  78 Screw
Screw
MO118802672/0 Out of stock
Screw
£3.17 £2.64

  79 Bearing
Bearing
MO118802906/0 Out of stock
Bearing
£11.29 £9.41

  80 Washer
Washer
MO118802694/0 Out of stock
Washer
£2.03 £1.69

  81 Nut
Nut
MO118802904/0 Out of stock
Nut
£2.66 £2.22

  82 Axle
Axle
MO118802707/0 Out of stock
Axle
£20.36 £16.97

  83 Washer
Washer
MO118802708/0 Out of stock
Washer
£1.39 £1.16

  84 Front Wheel Axle
Front Wheel Axle
MO118802698/0 Out of stock
Front Wheel Axle
£15.11 £12.59

  85 Benzing Ring
Benzing Ring
MO112000957/0 Out of stock
Benzing Ring
£1.39 £1.16

  88 Screw
Screw
MO112689515/0 Out of stock
Screw
£1.39 £1.16

  89 Bearing
Bearing
MO118802665/0 Out of stock
Bearing
£5.83 £4.86

  90 Blade
Blade
MO118802686/0 Out of stock
Blade
£69.83 £58.19

  91 Cover
Cover
MO118802675/0 Out of stock
Cover
£1.54 £1.28

  92 Spring
Spring
MO118802646/0 Out of stock
Spring
£1.66 £1.38

  93 Fixation Block
Fixation Block
MO118802680/0 Out of stock
Fixation Block
£15.49 £12.91

  94 Crown Fastener
Crown Fastener
MO112604899/0 In stock
Crown Fastener
£1.39 £1.16

  95 Hex Wrench
Hex Wrench
MO118802709/0 Out of stock
Hex Wrench
£4.45 £3.71

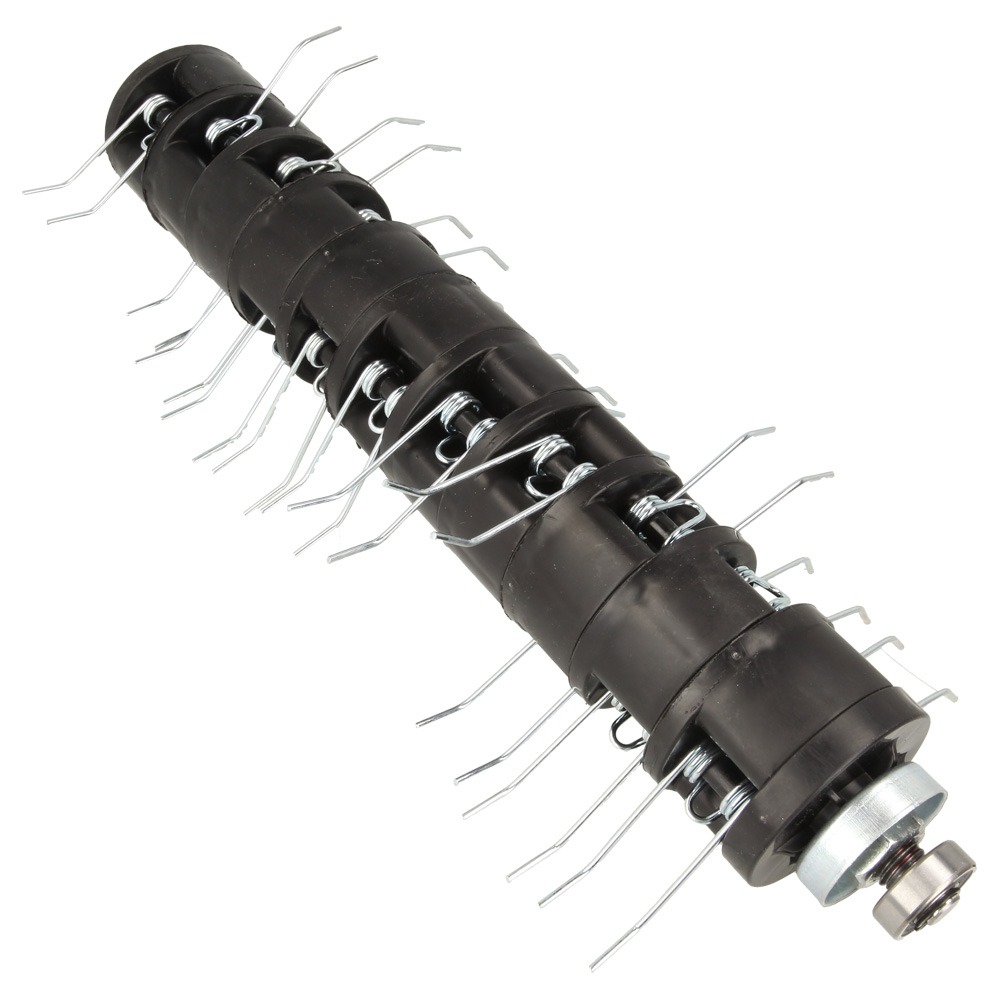

  97 Rotor Scarifier Assy
Rotor Scarifier Assy
MO118810267/0 Out of stock
Rotor Scarifier Assy
£68.57 £57.14

  99 Height Adjust Kit
Height Adjust Kit
MO118804952/0 Out of stock
Height Adjust Kit
£12.95 £10.79
