Description

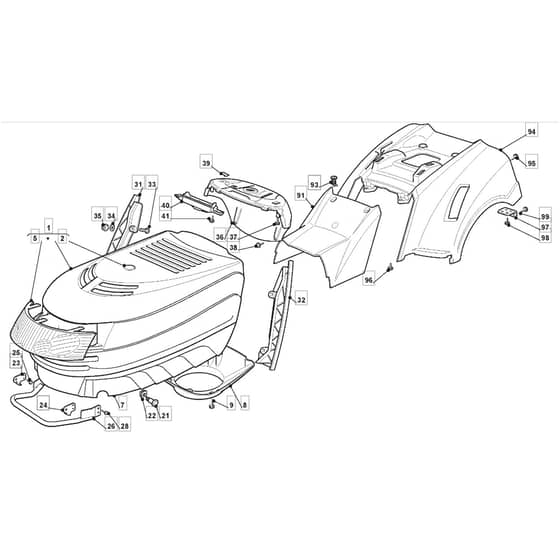

Mountfield MRL 9214 H Parts Diagram

Product Name - MRL 9214 H

Model Year - 2009

Model Type - NJTP 92 Hydro

Art.N - 2T2642436/IM9

Ref. Img. Part No. Details
  1 Engine Hood. Grey
Engine Hood. Grey
MO382076943/0 Out of stock
Engine Hood. Grey
£216.42 £180.35

  5 Headlights Grill For Single-Light
Headlights Grill For Single-Light
MO125410859/0 Out of stock
Headlights Grill For Single-Light
£16.74 £13.95

  7 Lower Engine Hood
Lower Engine Hood
MO125076808/0 Out of stock
Lower Engine Hood
£74.99 £62.49

  8 Conveyor
Conveyor
MO325108028/0 Out of stock
Conveyor
£7.90 £6.58

  9 Screw
Screw
MO112728686/0 In stock
Screw
£1.48 £1.23

  21 Pin
Pin
MO125510023/1 Out of stock
Pin
£3.89 £3.24

  22 Plate
Plate
MO112436050/0 In stock
Plate
£1.74 £1.45

  23 Right Plate
Right Plate
MO325547089/1 Out of stock
Right Plate
£3.95 £3.29

  24 Left Plate From 01-9-2010
Left Plate From 01-9-2010
MO325547091/1 Out of stock
Left Plate From 01-9-2010
£3.95 £3.29

  25 Screw
Screw
MO112731580/0 Out of stock
Screw
£1.48 £1.23

  26 Muffler Protection
Muffler Protection
MO382869033/0 Out of stock
Muffler Protection
£35.65 £29.71

  28 Screw
Screw
MO112735120/0 Out of stock
Screw
£1.48 £1.23

  31 Dashboard. Right Profile
Dashboard. Right Profile
MO325599012/0 Out of stock
Dashboard. Right Profile
£6.62 £5.52

  32 Dashboard. Left Profile
Dashboard. Left Profile
MO325599013/0 Out of stock
Dashboard. Left Profile
£6.49 £5.41

  33 Screw
Screw
MO112815221/0 Out of stock
Screw
£1.34 £1.12

  34 Washer
Washer
MO112521330/0 Out of stock
Washer
£1.48 £1.23

  35 Nut
Nut
MO112154510/0 In stock
Nut
£1.48 £1.23

  36 Dashboard
Dashboard
MO325120191/2 Out of stock
Dashboard
£33.10 £27.58

  37 Screw
Screw
MO112728440/0 Out of stock
Screw
£1.34 £1.12

  38 Screw
Screw
MO112735402/0 In stock
Screw
£1.48 £1.23

  39 Grommet
Grommet
MO125260000/0 Out of stock
Grommet
£2.81 £2.34

  40 Card Protection
Card Protection
MO325600074/0 Out of stock
Card Protection
£8.65 £7.21

  93 Stake
Stake
MO125580020/2 In stock
Stake
£7.90 £6.58

  97 Bracket
Bracket
MO325755041/0 Out of stock
Bracket
£1.66 £1.38

  99 Flanged Self-Tap Screw 4.8 X 13
Flanged Self-Tap Screw 4.8 X 13
MO112735110/0 Out of stock
Flanged Self-Tap Screw 4.8 X 13
£1.48 £1.23
