MPC 2710 - 2017-2018 - 240271003/M17 - Mountfield Chainsaw Housing Diagram

Name: MPC 2710 - 2017-2018 - 240271003/M17 - Mountfield Chainsaw Housing Diagram
SKU: mpc_2710_240271003_m17_housing-group
Price: 1.06 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

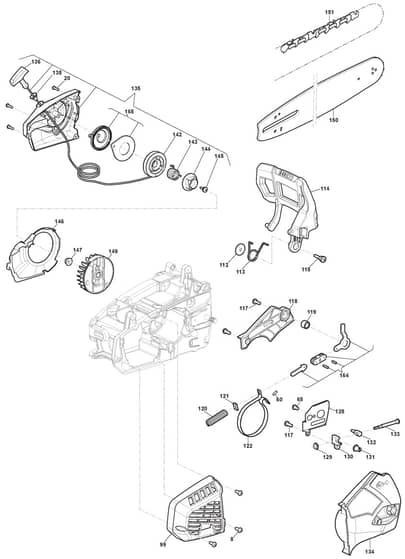

MPC 2710 - 2017-2018 - 240271003/M17 - Mountfield Chainsaw Housing Diagram

Description

Mountfield MPC 2710 Parts Diagram

Model Year - 2017-2018

Model Type - SPR 276

Art.N - 240271003/M17

Be the first to review this product

0 product questions

	Part No.	Details
20	MO112728124/0 Out of stock	Screw	£1.48 £1.23
60	MO123753000/0 Out of stock	Needle	£1.48 £1.23
65	MO112727815/0 Out of stock	Screw	£1.34 £1.12
99	MO118804876/0 Out of stock	Muffler Cover. Red	£3.48 £2.90
112	MO118804806/0 Out of stock	Washer	£1.48 £1.23
113	MO118804755/0 Out of stock	Spring For Hand Guard	£1.61 £1.34
114	MO118804798/0 Out of stock	Hand Guard	£12.85 £10.71
115	MO118804757/0 Out of stock	Hand Guard Screw	£1.34 £1.12
117	MO123878121/0 Out of stock	Screw	£1.61 £1.34
118	MO118804877/0 Out of stock	Break Spring Cover	£3.08 £2.57
119	MO118804760/0 Out of stock	Bushing	£1.27 £1.06
120	MO118804761/0 Out of stock	Chain Brake Spring	£1.34 £1.12
121	MO118804762/0 Out of stock	Spring Base	£1.27 £1.06
122	MO118804763/0 Out of stock	Break Strap	£3.74 £3.12
128	MO118804764/0 Out of stock	Tensioner Cover Plate	£2.81 £2.34
129	MO118804765/0 Out of stock	Passive Tensioner Gear	£2.81 £2.34
130	MO118804766/0 Out of stock	Gear Base	£1.27 £1.06
131	MO118804767/0 Out of stock	Tensioner Gear	£2.94 £2.45
132	MO118804768/0 Out of stock	Chain Tensioner Block	£2.68 £2.23
133	MO118804769/0 Out of stock	Tensioner Screw	£1.74 £1.45
134	MO118804878/0 Out of stock	Clutch Cover Assy. Red	£19.02 £15.85
135	MO118804884/0 Out of stock	Starter Assy. Red Rope 2.6x840mm	£30.80 £25.67
136	MO118804772/0 Out of stock	Starter Handle	£3.08 £2.57
138	MO118804773/0 Out of stock	Grommet	£2.15 £1.79
142	MO118804775/0 Out of stock	Starter Pulley	£3.08 £2.57
143	MO118804776/0 Out of stock	Spring	£2.81 £2.34

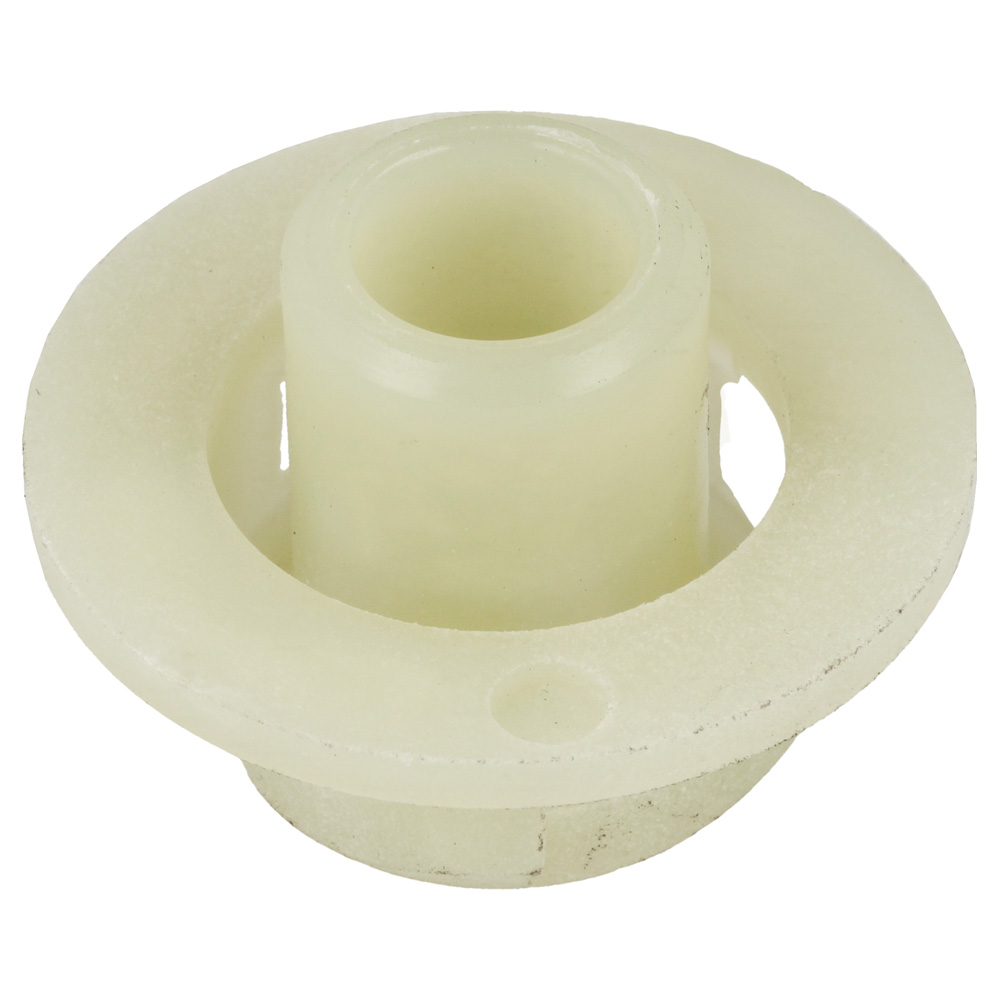

144	MO118804777/0 Out of stock	Starter Ratchet	£2.81 £2.34
145	MO118804807/0 Out of stock	Screw	£2.81 £2.34
146	MO118804778/0 Out of stock	Air Conveyor	£2.28 £1.90
147	MO112154220/0 Out of stock	Nut	£1.48 £1.23

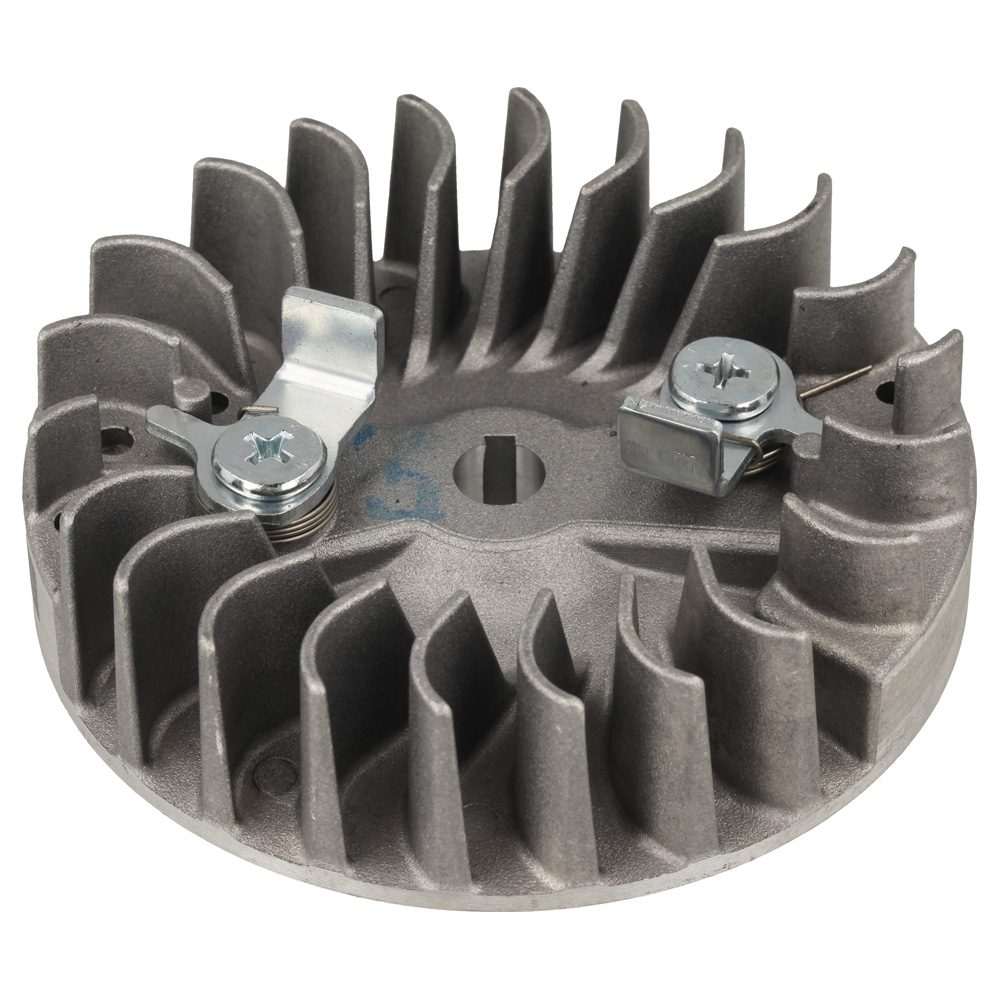

149	MO118804779/0 Out of stock	Flywheel Assy	£29.46 £24.55
150	MO123900360/0 Out of stock	Guide Bar 10"-3.8"-0.050"	£32.14 £26.78
151	6056 In stock	Chain 10"-3.8"-0.050"-40E	£8.17 £6.81
164	MO118804810/0 Out of stock	Break Control Assy	£4.02 £3.35
165	MO118804811/0 Out of stock	Starter Spring Assy	£4.02 £3.35
