MOLEMASTER 46PD - 2016-2018 - 299274648/M16 - Mountfield Rotary Mower WB45 Cylinder Diagram

Description

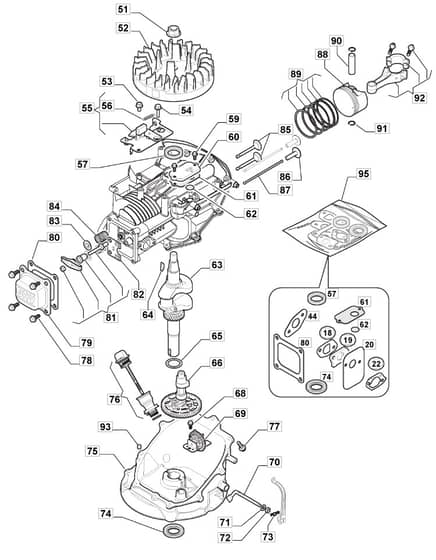

Mountfield MOLEMASTER 46PD Parts Diagram

Product Name - MOLEMASTER 46PD

Model Year - 2016-2018

Model Type - ESL 464 TR

Art.N - 299274648/M16

Engine Model - WB45

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550929/0 In stock	Gasket	£1.49 £1.24
19	MO118550928/0 In stock	Insulator. Carburettor	£2.84 £2.37
20	MO118550927/0 In stock	Gasket	£4.60 £3.83
22	MO118550924/0 In stock	Gasket	£1.63 £1.36
44	MO118550898/0 Out of stock	Gasket. Muffler	£2.30 £1.92
51	MO118550336/0 Out of stock	Nut	£5.82 £4.85
52	MO118550905/0 Out of stock	Flywheel Ass.Y	£77.86 £64.88
55	MO118551483/0 Out of stock	Flywheel Brake.Stop Switch Assy	£37.93 £31.61
57	MO118550300/0 Out of stock	Oil Seal	£6.97 £5.81
62	MO118550902/0 Out of stock	Valve	£1.90 £1.58
63	MO118550889/0 Out of stock	Crankshaft	£94.81 £79.01
64	MO118550288/0 Out of stock	Woodruff Key	£5.96 £4.97
65	MO118550283/0 Out of stock	Washer	£3.25 £2.71
66	MO118550890/0 Out of stock	Camshaft Assy	£29.80 £24.83
68	MO112789000/0 Out of stock	Screw	£1.49 £1.24
69	MO118550888/0 Out of stock	Speed Governor Assy	£15.98 £13.32
70	MO118550936/0 Out of stock	Shaft. Governor Arm	£6.23 £5.19
74	MO118550379/0 Out of stock	Oil Seal	£6.50 £5.42
76	MO118550887/0 Out of stock	Tank Cap	£10.56 £8.80
77	MO112791500/0 Out of stock	Screw	£1.49 £1.24
78	MO118551276/0 Out of stock	Bolt	£3.25 £2.71
79	MO118550891/0 Out of stock	Cover Comp. Head	£12.94 £10.78
80	MO118550892/0 Out of stock	Packing Head Cover	£3.12 £2.60
81	MO118550893/0 Out of stock	Valve Arm Set	£12.66 £10.55
85	MO118550910/0 Out of stock	Valve Assy. Intake + Exhaust	£20.72 £17.27
86	MO118550291/0 Out of stock	Valve Lifter Assy	£9.35 £7.79
87	MO118550912/0 Out of stock	Push Rod	£6.91 £5.76
88	MO118551216/0 Out of stock	Piston	£31.82 £26.52
89	MO118550913/0 Out of stock	Piston. Ring Set	£21.00 £17.50
90	MO118550915/0 Out of stock	Piston Pin	£5.15 £4.29
91	MO118550914/0 Out of stock	Washer. Piston Pin	£1.49 £1.24
92	MO118550916/0 Out of stock	Connecting Rod Assy	£24.24 £20.20
95	MO118550940/0 Out of stock	Engine Gasket Set	£24.38 £20.32
