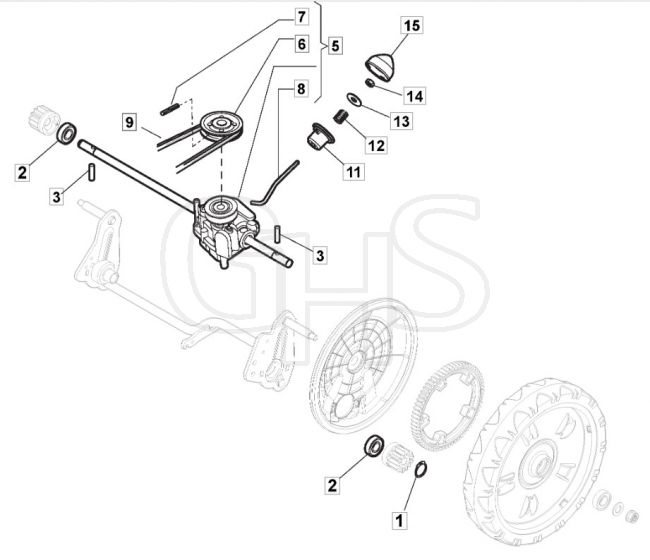

MLFW 5360 TRBQ - 2011 - 299536823/MFR - Mountfield Rotary Mower Transmission Diagram

Name: MLFW 5360 TRBQ - 2011 - 299536823/MFR - Mountfield Rotary Mower Transmission Diagram
SKU: mlfw_5360_trbq_299536823_mfr_transmission-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MLFW 5360 TRBQ - 2011 - 299536823/MFR - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield MLFW 5360 TRBQ Parts Diagram

Product Name - MLFW 5360 TRBQ

Model Year - 2011

Model Type - NTL 534 W TRQ

Art.N - 299536823/MFR

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112608600/0 In stock	Seeger	£1.48 £1.23
2	MO119216035/0 In stock	Bearing	£3.35 £2.79
3	MO122753000/0 In stock	Pin	£1.48 £1.23
5	MO181003092/0 In stock	Gear Box To 31-8-2012	£107.80 £89.83
5	MO181003076/1 Out of stock	Gear Box From 01-9-2012	£115.16 £95.97
6	MO122601909/0 In stock	Pulley	£5.35 £4.46
7	MO112645700/0 Out of stock	Elastic Pin	£1.48 £1.23
8	MO122033283/0 In stock	Adjustment Rod	£4.43 £3.69
9	MO135063902/1 In stock	Belt	£9.44 £7.87
9	MO1111-9124-01 Out of stock	Drive Belt Stiga Packed into 135063902.1	£12.59 £10.49
11	MO122041957/1 Out of stock	Bushing	£1.48 £1.23
12	MO122450063/0 Out of stock	Spring	£1.48 £1.23
13	MO322680009/0 Out of stock	Washer	£1.52 £1.27
14	MO112154510/0 In stock	Nut	£1.48 £1.23
15	MO122110230/0 In stock	Hub Cover	£1.48 £1.23
