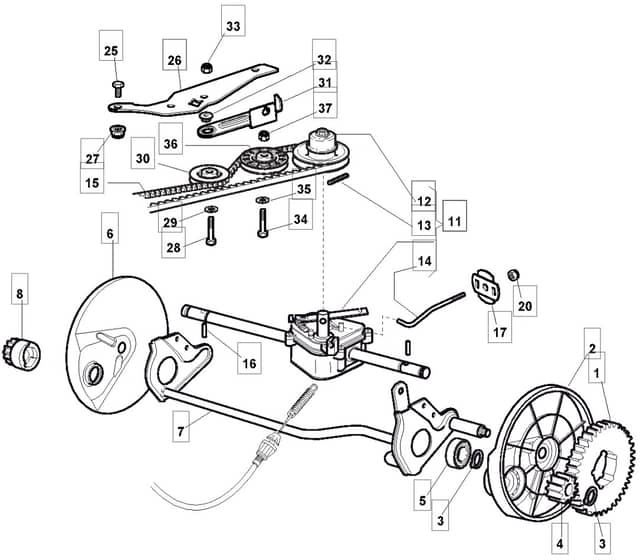

MLFI 53 TRHV - 2009 - 291593038/MFR - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield MLFI 53 TRHV Parts Diagram

Product Name - MLFI 53 TRHV

Model Year - 2009

Model Type - CAL 534 TR 4S

Art.N - 291593038/MFR

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122120105/2 Out of stock	Ring Gear	£9.44 £7.87
2	MO122600093/0 Out of stock	Left Wheel Protection	£3.22 £2.68
3	MO112608600/0 In stock	Seeger	£1.48 £1.23
4	MO122570120/1 In stock	Left Pinion	£7.03 £5.86
5	MO119216035/0 In stock	Bearing	£3.35 £2.79
6	MO122600092/0 Out of stock	Right Wheel Protection	£3.22 £2.68
7	MO381000147/0 In stock	Rear Wheel Axle	Was £26.74 £22.28 Special Price £17.23 £14.36
8	MO322570138/0 In stock	Right Pinion	£7.03 £5.86
11	MO181003096/3 Out of stock	Gear Box	£140.60 £117.17
12	MO122601925/0 Out of stock	Pulley To 31-8-2013	£62.94 £52.45
12	MO122601932/0 Out of stock	Pulley From 01-9-2013	£54.64 £45.53
13	MO112645700/0 Out of stock	Elastic Pin	£1.48 £1.23
14	MO122033285/0 Out of stock	Adjustment Rod	£6.56 £5.47
15	MO135064010/0 In stock	Belt	£13.99 £11.66
16	MO122753000/0 In stock	Pin	£1.48 £1.23
17	MO322675113/0 Out of stock	Washer	£1.66 £1.38
25	MO112791011/0 Out of stock	Screw	£1.34 £1.12
26	MO322806625/2 Out of stock	Support From 01-9-2009	£5.22 £4.35
27	MO112292102/0 In stock	Nut	£1.61 £1.34
28	MO112689500/0 Out of stock	Screw	£1.48 £1.23
30	MO122601915/0 In stock	Pulley	£20.35 £16.96
31	MO322806623/0 Out of stock	Pulley Support	£3.95 £3.29
32	MO122671656/0 Out of stock	Washer	£6.96 £5.80
34	MO112674700/0 Out of stock	Screw	£1.48 £1.23
35	MO112523050/0 In stock	Washer	£1.48 £1.23
36	MO122601914/0 In stock	Pulley	£20.48 £17.07
37	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.48 £1.23
