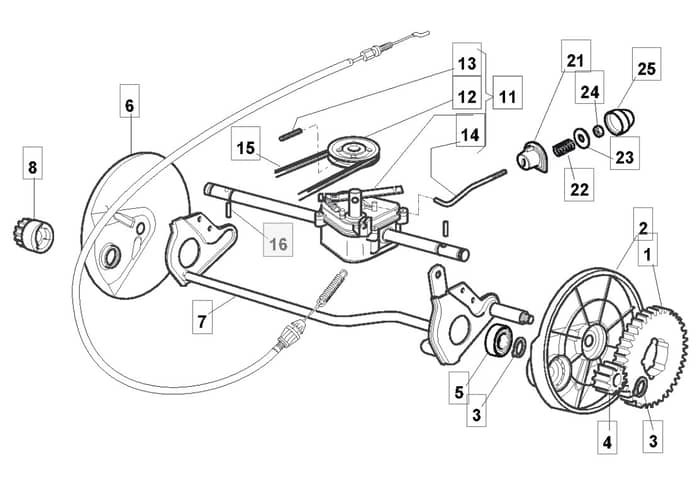

MLF 5310 PD SILENT - 2009 - 291572043/MFR - Mountfield Rotary Mower Transmission Diagram

Name: MLF 5310 PD SILENT - 2009 - 291572043/MFR - Mountfield Rotary Mower Transmission Diagram
SKU: mlf_5310_pd_silent_291572043_mfr_transmission-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MLF 5310 PD SILENT - 2009 - 291572043/MFR - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield MLF 5310 PD SILENT Parts Diagram

Product Name - MLF 5310 PD SILENT

Model Year - 2009

Model Type - CAL 534 TR SIL

Art.N - 291572043/MFR

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122120105/2 Out of stock	Ring Gear	£9.55 £7.96
2	MO122600093/0 Out of stock	Left Wheel Protection	£3.25 £2.71
3	MO112608600/0 In stock	Seeger	£1.49 £1.24
4	MO122570120/1 In stock	Left Pinion	£7.12 £5.93
5	MO119216035/0 In stock	Bearing	£3.38 £2.82
6	MO122600092/0 Out of stock	Right Wheel Protection	£3.25 £2.71
7	MO381000147/0 In stock	Rear Wheel Axle	Was £26.74 £22.28 Special Price £17.23 £14.36
8	MO322570138/0 In stock	Right Pinion	£7.12 £5.93
11	MO181003092/0 Out of stock	Gear Box From 01-9-2008	£63.96 £53.30
11	MO181003076/1 Out of stock	G.T. Gear Box To 31-8-2008	£116.48 £97.07
12	MO122601909/0 In stock	Pulley	£5.42 £4.52
13	MO112645705/0 Out of stock	Elastic Pin ø5X32	£1.49 £1.24
14	MO122033283/0 In stock	Adjustment Rod (General Transmission) From 01-9-2003	£4.48 £3.73
15	MO135063902/1 In stock	Belt	£9.23 £7.69
16	MO122753000/0 In stock	Pin	£1.49 £1.24
21	MO122041957/1 Out of stock	Bushing	£1.49 £1.24
22	MO122450063/0 Out of stock	Spring	£1.49 £1.24
23	MO322680009/0 Out of stock	Washer	£1.75 £1.46
24	MO112154510/0 In stock	Nut	£1.49 £1.24
25	MO122110230/0 In stock	Hub Cover	£1.49 £1.24
