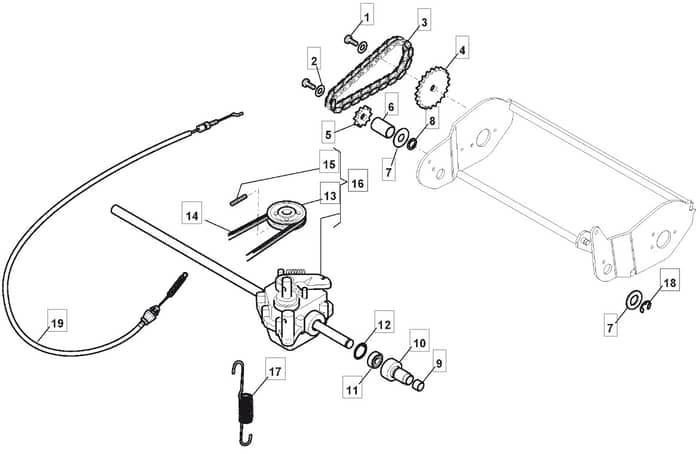

MLF 4810 RPD - 2009 - 294489033/MFR - Mountfield Rotary Mower Transmission Diagram

MLF 4810 RPD - 2009 - 294489033/MFR - Mountfield Rotary Mower Transmission Diagram
MLF 4810 RPD - 2009 - 294489033/MFR - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield MLF 4810 RPD Parts Diagram

Product Name - MLF 4810RPD

Model Year - 2009

Model Type - TD 484 TR

Art.N - 294489033/MFR

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  2 Washer MO112523040/0
Washer
 In stock
£1.39 £1.16

  3 Chain MO1111-3562-01
Chain
 In stock
£18.11 £15.09

  4 Ring Gear MO1111-3424-01
Ring Gear
 In stock
£16.51 £13.76

  5 Ring Gear MO1111-3423-01
Ring Gear
 Out of stock
£13.34 £11.12

  6 Spacer MO122170970/0
Spacer
 Out of stock
£2.29 £1.91

  7 Antifriction Washer MO322672151/0
Antifriction Washer
 Out of stock
£1.66 £1.38

  8 Washer MO321660100/0
Washer
 Out of stock
£1.78 £1.48

  9 Brass MO322038404/0
Brass
 Out of stock
£1.39 £1.16

  10 Gear Box Support MO322785126/0
Gear Box Support
 In stock
£10.40 £8.67

  11 Bearing MO119216035/0
Bearing
 In stock
£3.17 £2.64

  12 Snap Ring MO112610095/0
Snap Ring
 Out of stock
£1.54 £1.28

  13 Pulley MO122601909/0
Pulley
 In stock
£5.09 £4.24

  14 Trapezoidal Belt MO135063800/0
Trapezoidal Belt
 In stock
£8.63 £7.19

  15 Elastic Pin MO112645705/0
Elastic Pin
 Out of stock
£1.39 £1.16

  16 Gear Box MO181003077/1
Gear Box
 In stock
£93.97 £78.31

  17 Brake Spring MO125430220/0
Brake Spring
 Out of stock
£3.68 £3.07

  18 Spring To 31-8-2006 MO122450063/0
Spring To 31-8-2006
 Out of stock
£1.39 £1.16

  18 Benzing Ring From 01-9-2006 MO112000957/0
Benzing Ring From 01-9-2006
 Out of stock
£1.39 £1.16

  19 MO381000668/1
In stock
£18.91 £15.76


Description

Mountfield MLF 4810 RPD Parts Diagram

Product Name - MLF 4810RPD

Model Year - 2009

Model Type - TD 484 TR

Art.N - 294489033/MFR
