MLF 4800 R HP - 2009 - 294480673/MFR - Mountfield Rotary Mower Blade Diagram

Description

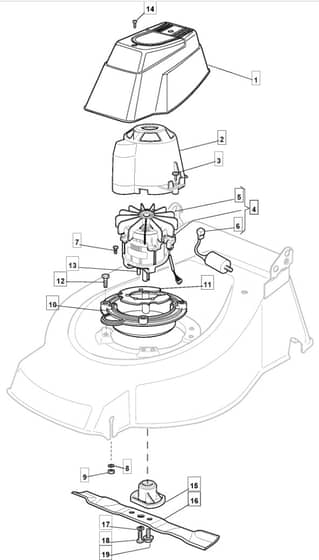

Mountfield MLF 4800 R HP Parts Diagram

Model Year - 2009

Model Type - TD 480

Art.N - 294480673/MFR

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122055045/1 Out of stock	Cover. Black	£9.71 £8.09
2	MO322785061/1 Out of stock	Support	£5.60 £4.67
3	MO112728710/0 Out of stock	Screw	£1.27 £1.06
5	MO118740051/0 Out of stock	Fan RST To 31-8-2007	£4.97 £4.14
5	MO118740054/0 Out of stock	Fan Motor Atb ATB	£9.64 £8.03
6	MO118222038/0 Out of stock	Condenser (RST - HLT 1600W) To 31-8-2007	£29.46 £24.55
6	MO118222045/0 Out of stock	Condenser 16 Μf (Atb - 1600W) From 01-9-2001	£18.35 £15.29
7	MO112735410/0 Out of stock	Screw	£1.48 £1.23
9	MO112293200/0 In stock	Nut	£1.48 £1.23
10	MO322207211/4 Out of stock	Electrical Motor Flange From 01-9-2007	£5.35 £4.46
11	MO322720360/2 Out of stock	Ventilation Screen From 01-9-2007	£3.18 £2.65
12	MO112793701/0 Out of stock	Screw From 01-9-2013	£1.48 £1.23
13	MO112139440/0 Out of stock	Key	£1.87 £1.56
14	MO112728680/0 Out of stock	Screw	£1.48 £1.23
15	MO322463186/3 Out of stock	Blade Hub From 01-9-2007	£7.90 £6.58
16	MO181004460/0 In stock	Mulching Blade From 01-9-2015	£14.06 £11.72
16	MO181004346/3 In stock	Left Mulching. Blade From 01-9-2001 To 31-8-2015	£14.06 £11.72
16	MO181004397/0 Out of stock	Blade Winged	£23.04 £19.20
17	MO112583500/0 Out of stock	Grower	£1.48 £1.23
18	MO112793101/0 Out of stock	Screw	£1.48 £1.23
19	MO381004352/1 Out of stock	Blade Bolt M9	£3.95 £3.29
