MLF 1500 - 2010 - 297591663/MFR - Mountfield Rotary Mower Main Assembly Diagram

Name: MLF 1500 - 2010 - 297591663/MFR - Mountfield Rotary Mower Main Assembly Diagram
SKU: mlf_1500_297591663_mfr_main_assembly-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MLF 1500 - 2010 - 297591663/MFR - Mountfield Rotary Mower Main Assembly Diagram

Description

Mountfield MLF 1500 Parts Diagram

Model Year - 2010

Model Type - NCL 390

Art.N - 297591663/MFR

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112728124/0 Out of stock	Screw	£1.48 £1.23
6	MO112735410/0 Out of stock	Screw	£1.48 £1.23
7	MO118563680/0 Out of stock	Electric Motor 1500W	£104.45 £87.04
8	MO122167700/0 Out of stock	Spacer	£1.48 £1.23
10	MO181004142/0 Out of stock	Blade Standard	£15.41 £12.84
11	MO381004352/1 Out of stock	Screw	£3.95 £3.29
12	MO381002855/0 Out of stock	Front Wheel Axle	£30.55 £25.46
13	MO112523050/0 In stock	Washer	£1.48 £1.23
14	MO112728705/0 Out of stock	Screw	£2.54 £2.12
16	MO325547049/0 Out of stock	Plate	£3.06 £2.55
17	MO322869669/0 Out of stock	Rod. Height Adjustment	£3.31 £2.76
18	MO322686094/0 Out of stock	Wheel	£4.84 £4.03
21	MO122450250/0 Out of stock	Spring	£1.48 £1.23
22	MO122512601/0 Out of stock	Pin	£1.87 £1.56
24	MO112728701/0 Out of stock	Screw	£1.34 £1.12

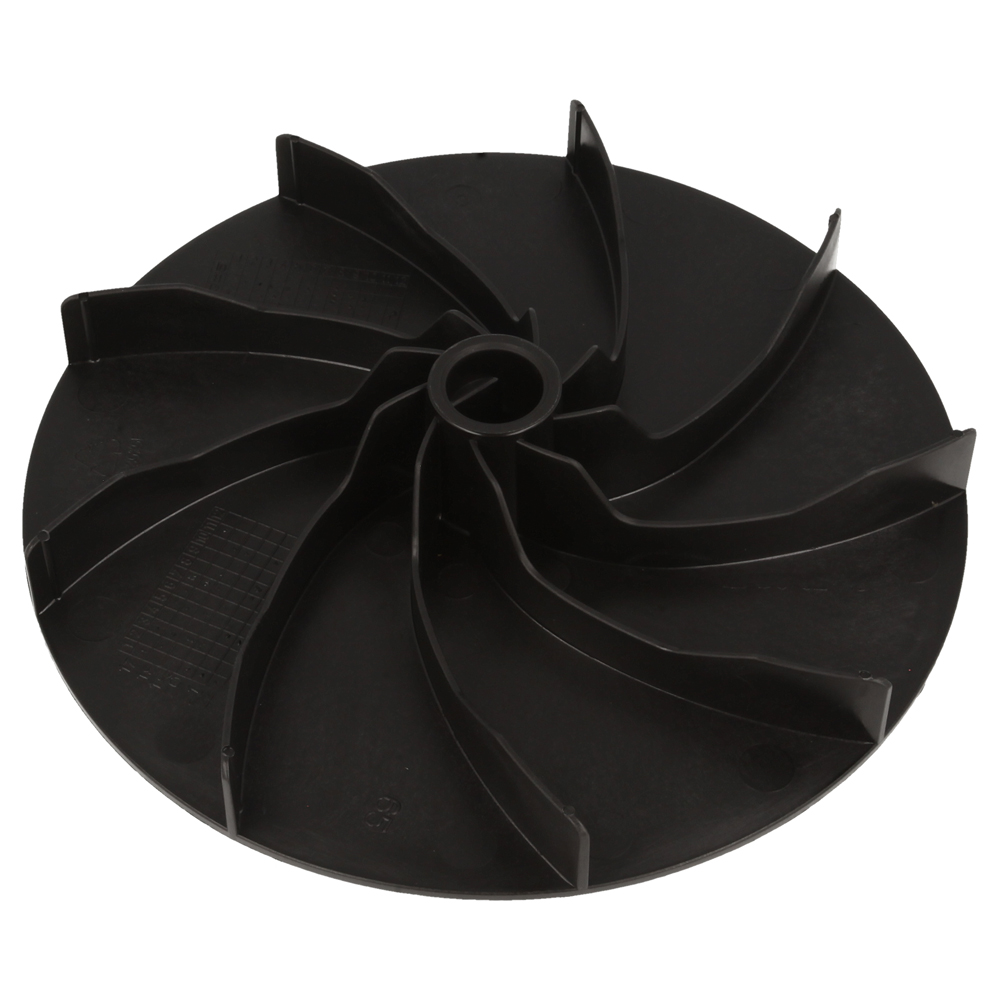

25	MO322465602/1 Out of stock	Hub Fan From 01-9-2010	£5.72 £4.77
26	MO322686095/0 Out of stock	Wheel	£5.86 £4.88

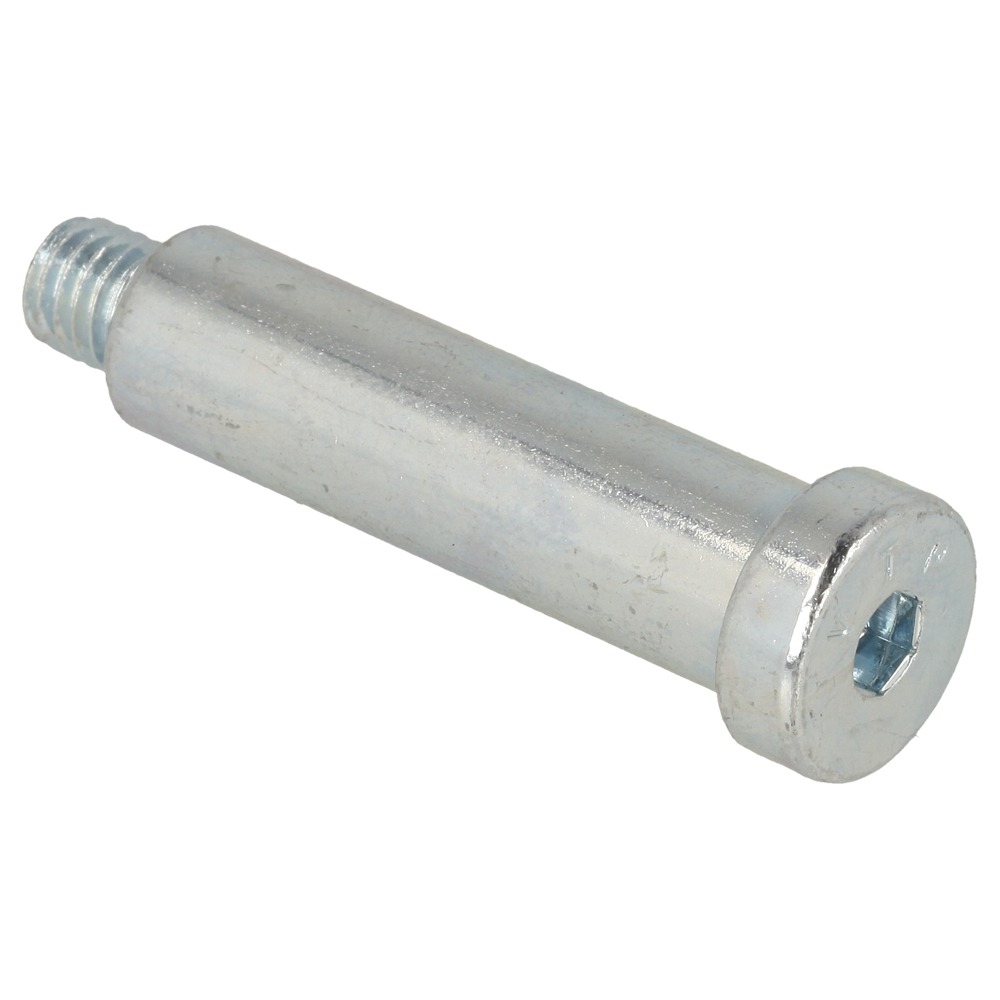

28	MO122524337/0 Out of stock	Pin	£3.35 £2.79
30	MO381002857/0 Out of stock	Rear Wheel Axle	£14.89 £12.41

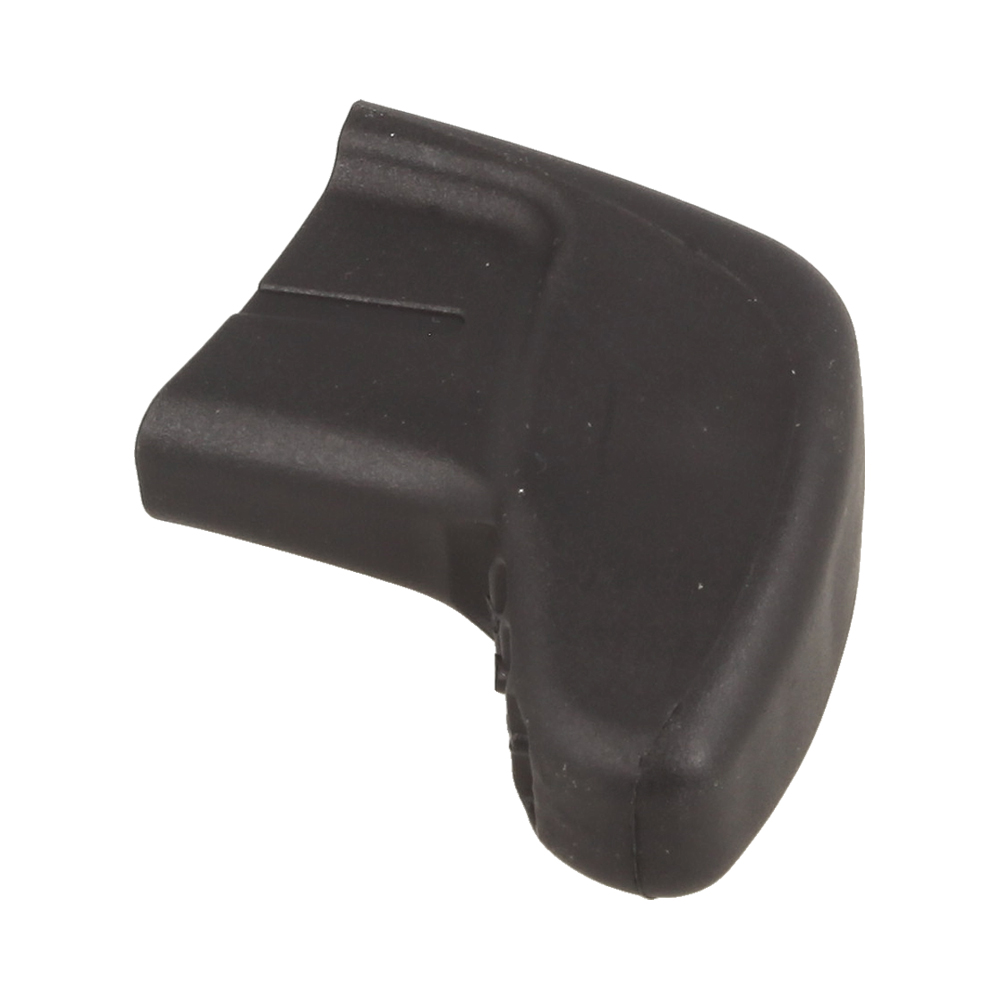

31	MO322399827/0 Out of stock	Knob	£1.66 £1.38

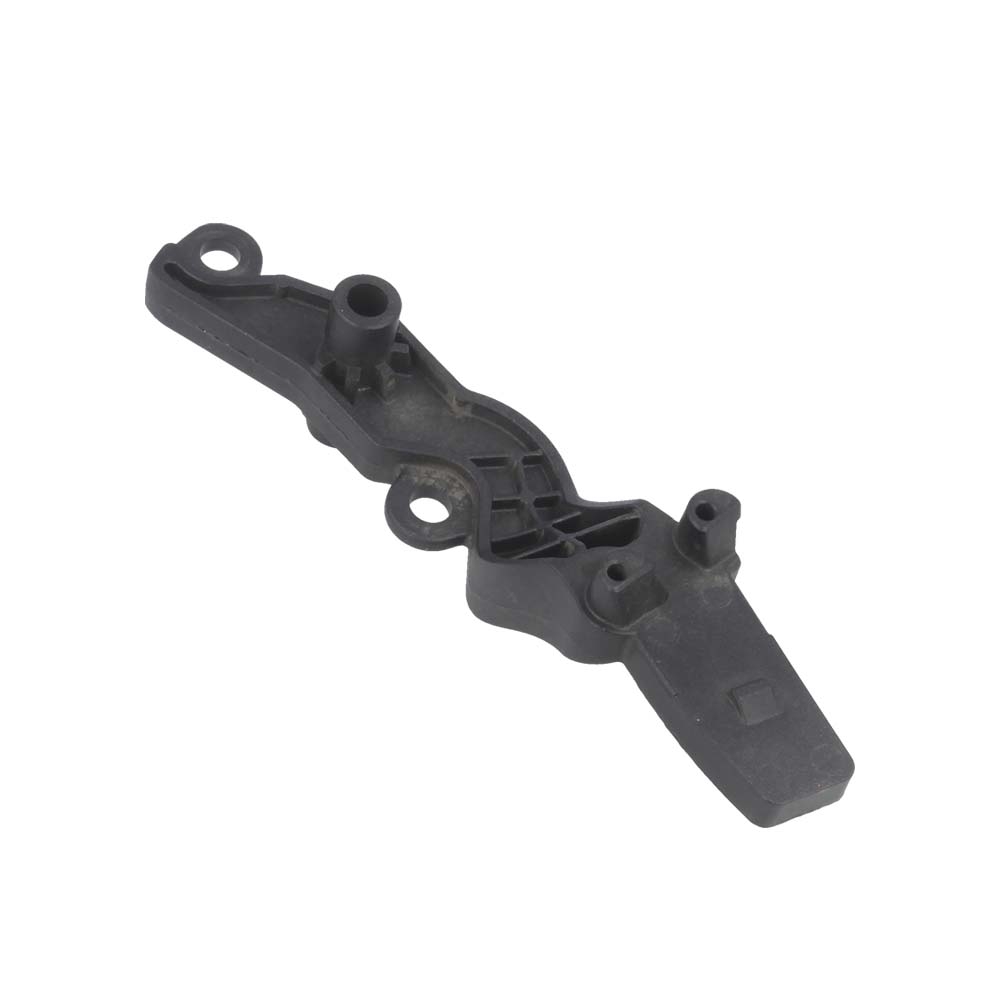

32	MO322321528/0 Out of stock	Height Adjustment Lever	£4.20 £3.50
33	MO112520033/0 Out of stock	Washer	£1.48 £1.23
34	MO122524338/0 Out of stock	Pin	£1.48 £1.23
35	MO122450425/0 Out of stock	Spring	£2.81 £2.34
