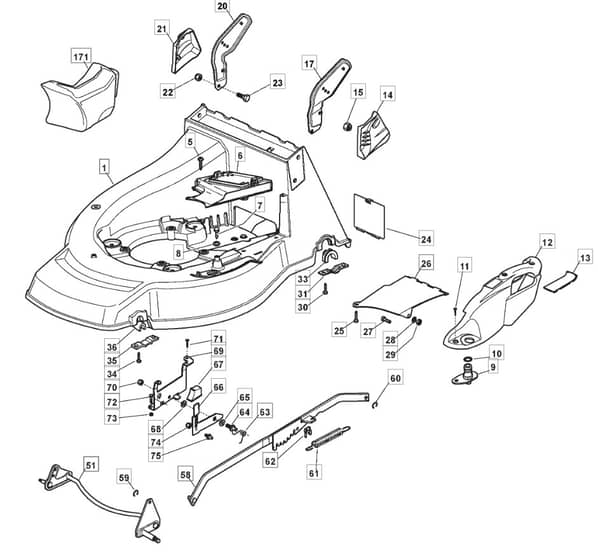

ML5060 PD - 2009 - 295505138/IM9 - Mountfield Rotary Mower Deck Diagram

Description

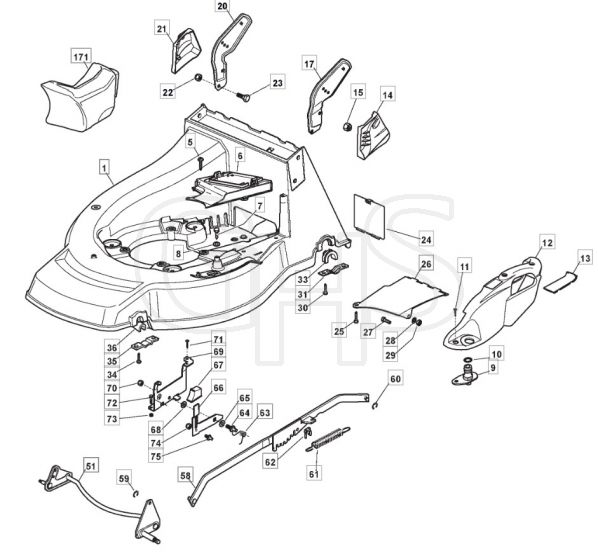

Mountfield ML5060 PD Parts Diagram

Product Name - ML 5060 PD

Model Year - 2009

Model Type - PAN 504 TR

Art.N - 295505138/IM9

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004743/1 Out of stock	Grey Deck	£477.41 £397.84
5	MO112728522/0 Out of stock	Screw	£1.48 £1.23
6	MO322060221/0 Out of stock	Belt Protection	£5.09 £4.24
8	MO112523040/0 In stock	Washer	£1.48 £1.23
9	MO122034000/0 Out of stock	Washing Connection	£1.61 £1.34
10	MO119035000/0 Out of stock	Or Ring	£4.82 £4.02
11	MO112728520/0 Out of stock	Screw	£1.34 £1.12
12	MO122060146/0 Out of stock	Deck. Adjustment	£4.96 £4.13
13	MO122546070/0 Out of stock	Plate	£1.48 £1.23
14	MO322601003/0 Out of stock	Protection	£3.06 £2.55
17	MO322778397/1 Out of stock	Left Bracket	£12.60 £10.50
20	MO322778396/1 Out of stock	Right Bracket	£12.60 £10.50
21	MO322601002/1 Out of stock	Protection. Right	£1.66 £1.38
23	MO112793301/0 Out of stock	Screw	£1.48 £1.23
24	MO122595352/0 Out of stock	Inspection Door	£2.15 £1.79
26	MO322108205/0 Out of stock	Conveyor To 31-8-2014	£9.55 £7.96
26	MO322108205/1 Out of stock	Conveyor From 01-9-2014	£9.55 £7.96
27	MO112789000/0 Out of stock	Screw	£1.48 £1.23
28	MO112523020/0 Out of stock	Washer	£1.48 £1.23
29	MO112154330/0 Out of stock	Nut	£1.48 £1.23
31	MO322545147/0 Out of stock	Plate	£1.91 £1.59
33	MO322038407/0 Out of stock	Brass	£1.66 £1.38
34	MO112731350/0 Out of stock	Screw	£1.48 £1.23
35	MO322545156/0 Out of stock	Plate	£1.40 £1.17
36	MO122038400/1 Out of stock	Brass	£1.74 £1.45
51	MO381302865/0 Out of stock	Axle. Front Wheels From 01-9-2013	£39.47 £32.89
51	MO381002801/1 Out of stock	Front Wheel Axle To 31-8-2011	£38.20 £31.83
51	MO381002865/1 Out of stock	Front Wheel Axle From 01-9-2011 To 31-8-2012	£47.10 £39.25
58	MO381002039/1 Out of stock	Rod. Height Adjustment From 01-9-2011	£47.10 £39.25
58	MO381001137/0 Out of stock	Rod. Height Adjustment To 31-8-2011	£29.28 £24.40
60	MO112000930/0 In stock	Benzing Ring	£1.48 £1.23
61	MO122446187/0 Out of stock	Spring	£6.96 £5.80
62	MO112436050/0 In stock	Plate	£1.74 £1.45
63	MO122446176/1 Out of stock	Spring	£2.81 £2.34
64	MO122517880/1 Out of stock	Pin	£4.15 £3.46
65	MO322672152/0 Out of stock	Antifriction Washer	£1.52 £1.27
66	MO322322829/1 Out of stock	Lever. Height Adjustment	£2.68 £2.23
67	MO122602000/0 Out of stock	Lever Control Button	£1.48 £1.23
68	MO322672151/0 Out of stock	Antifriction Washer	£1.52 £1.27
69	MO322785115/0 Out of stock	Support. Height Adjustment	£6.36 £5.30
70	MO112155000/0 In stock	Nut	£1.48 £1.23
71	MO112729600/0 Out of stock	Screw	£1.48 £1.23
72	MO112793101/0 Out of stock	Screw To 31-8-2013	£1.48 £1.23
72	MO112793102/0 In stock	Screw From 01-9-2013	£1.48 £1.23
73	MO112293201/0 In stock	Nut	£1.61 £1.34
74	MO112154510/0 In stock	Nut	£1.48 £1.23
75	MO122519746/0 Out of stock	Pin	£2.15 £1.79
171	MO322140224/1 Out of stock	Mulching Deflector	£38.20 £31.83
