ML5060 PD - 2009 - 295505138/GI - Mountfield Rotary Mower Handle Diagram

Name: ML5060 PD - 2009 - 295505138/GI - Mountfield Rotary Mower Handle Diagram
SKU: ml5060_pd_295505138_gi_handle-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ML5060 PD - 2009 - 295505138/GI - Mountfield Rotary Mower Handle Diagram

Description

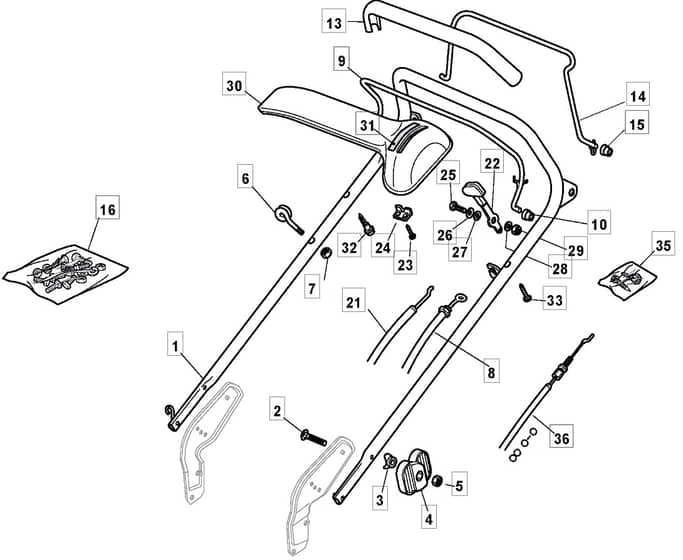

Mountfield ML5060 PD Parts Diagram

Product Name - ML 5060 PD

Model Year - 2009

Model Type - PAN 504 TR

Art.N - 295505138/GI

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006861/0 Out of stock	Handle. Upper Part Black	£50.80 £42.33
2	MO112819121/0 In stock	Screw	£1.78 £1.48
3	MO122680006/1 In stock	Washer	£1.66 £1.38
4	MO122399803/0 Out of stock	Knob	£1.54 £1.28
5	MO112293200/0 In stock	Nut	£1.39 £1.16
6	MO122430309/0 Out of stock	Spring	£2.80 £2.33
7	MO112154330/0 Out of stock	Nut	£1.39 £1.16
8	MO181000616/1 Out of stock	Cable. Thread Engine Brake - Honda Engine	£12.31 £10.26
9	MO181003291/3 Out of stock	Lever. Engine Brake From 01-9-2006	£13.46 £11.22
10	MO122041966/0 In stock	Bushing	£1.39 £1.16
13	MO122291050/0 Out of stock	Handgrip Black	£12.83 £10.69
14	MO181003288/1 Out of stock	Driving Lever	£10.49 £8.74
15	MO322041965/1 Out of stock	Bushing From 01-9-2004	£1.39 £1.16
16	MO381008610/1 Out of stock	Outfit	£10.49 £8.74
21	MO481007160/0 In stock	Throttle Cable With Sheath. Universal	£13.08 £10.90
22	MO381007280/2 Out of stock	Dashboard Throttle Lever - Honda Engine . B&S 625-675-700 Series . Ggp 140-160-196Cc	£2.92 £2.43
23	MO112735105/0 Out of stock	Screw	£1.39 £1.16
24	MO322981467/0 Out of stock	Plate	£1.39 £1.16
25	MO112791500/0 Out of stock	Screw	£1.39 £1.16
26	MO112530060/0 Out of stock	Spring Washer	£1.28 £1.07
28	MO112523040/0 In stock	Washer	£1.39 £1.16
29	MO112154510/0 In stock	Nut	£1.39 £1.16
30	MO422120158/0 Out of stock	Black Dashboard	£8.53 £7.11
31	MO114356743/1 Out of stock	Label - Honda /Ggp Engine	£3.04 £2.53
32	MO122943006/0 Out of stock	Screw	£1.66 £1.38
33	MO112728460/0 Out of stock	Screw	£1.39 £1.16
35	MO381008609/0 Out of stock	Outfit. Screws	£1.39 £1.16

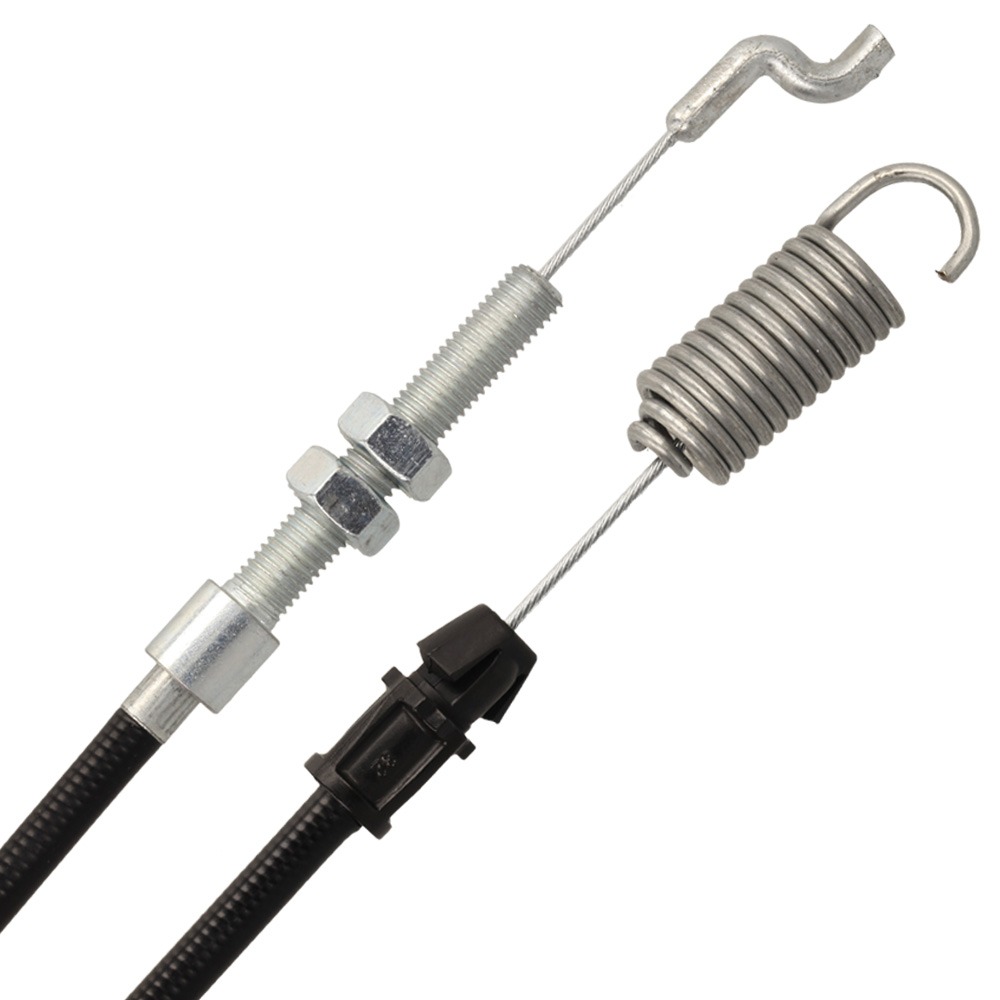

36	MO381000669/0 Out of stock	Cable Rear Drive (General Transmission)	£17.21 £14.34
36	MO381000673/0 Out of stock	Cable Rear Drive (Bi. Ci. Di.)	£17.71 £14.76
