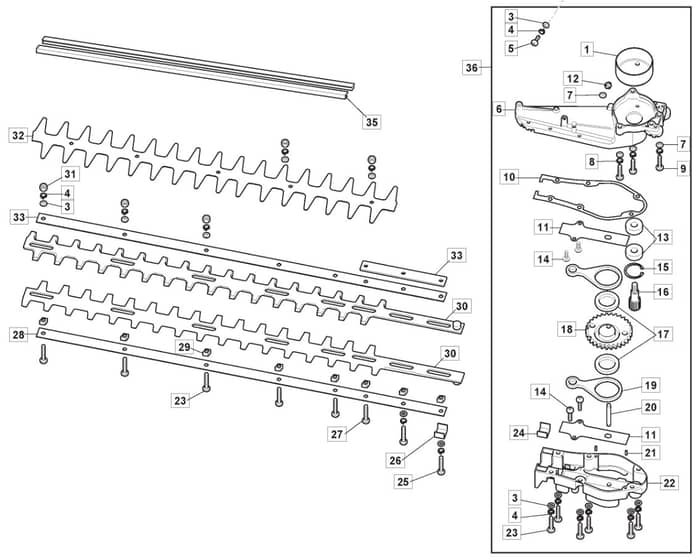

MHJ 2424 - 2010-2012 - 252900003/M10 - Mountfield Hedge Trimmer Blade Diagram

MHJ 2424 - 2010-2012 - 252900003/M10 - Mountfield Hedge Trimmer Blade Diagram
MHJ 2424 - 2010-2012 - 252900003/M10 - Mountfield Hedge Trimmer Blade Diagram

Description

Mountfield MHJ 2424 Parts Diagram

Model Year - 2010-2012

Model Type - HTJ 550

Art.N - 252900003/M10

Ref. Img. Part No. Details
  1 Clutch Drum Assy MO123050010/0
Clutch Drum Assy
Out of stock
£12.18 £10.15

  3 Washer MO123657013/0
Washer
Out of stock
£1.27 £1.06

  4 Washer MO123657017/0
Washer
Out of stock
£2.15 £1.79

  5 Screw MO123878115/0
Screw
Out of stock
£1.48 £1.23

  7 Washer MO123657020/0
Washer
Out of stock
£1.27 £1.06

  9 Screw MO123878116/0
Screw
Out of stock
£1.27 £1.06

  10 Crankcase Gasket MO123280082/0
Crankcase Gasket
Out of stock
£1.87 £1.56

  11 Flange MO123208418/0
Flange
Out of stock
£1.74 £1.45

  12 Grease Dispenser MO112379520/0
Grease Dispenser
Out of stock
£1.61 £1.34

  13 Ball Bearing MO114215222/0
Ball Bearing
Out of stock
£8.57 £7.14

  14 Screw MO123878020/0
Screw
Out of stock
£1.27 £1.06

  16 Pinion MO123570052/0
Pinion
Out of stock
£8.57 £7.14

  17 Bearing MO114215223/0
Bearing
Out of stock
£10.58 £8.82

  18 Gear Assy MO123664000/0
Gear Assy
Out of stock
£17.94 £14.95

  19 Connecting Rod MO123041502/0
Connecting Rod
Out of stock
£18.35 £15.29

  21 Needle MO123665004/0
Needle
Out of stock
£1.27 £1.06

  23 Screw MO123878081/0
Screw
Out of stock
£1.66 £1.38

  25 Screw MO123878118/0
Screw
Out of stock
£1.48 £1.23

  26 Plate MO123208419/0
Plate
Out of stock
£1.27 £1.06

  27 Screw MO123878113/0
Screw
Out of stock
£1.27 £1.06

  28 Blade Holder MO123294006/0
Blade Holder
Out of stock
£5.76 £4.80

  29 Bushing MO123044222/0
Bushing
Out of stock
£1.27 £1.06

  30 Blade MO123305004/0
Blade
Out of stock
£50.88 £42.40

  31 Nut MO123120014/0
Nut
Out of stock
£1.27 £1.06

  32 Blade Guard MO123600081/0
Blade Guard
Out of stock
£6.96 £5.80

  33 Blade Holder MO123294007/0
Blade Holder
Out of stock
£4.96 £4.13

  35 Blade Cover MO123085002/0
Blade Cover
Out of stock
£5.35 £4.46

  36 Engine Support Ass.Y MO118804982/0
Engine Support Ass.Y
Out of stock
£180.77 £150.64


Description

Mountfield MHJ 2424 Parts Diagram

Model Year - 2010-2012

Model Type - HTJ 550

Art.N - 252900003/M10
