ME 1814 - 2010 - 293014003/MO8 - Mountfield Main Assembly Diagram

Name: ME 1814 - 2010 - 293014003/MO8 - Mountfield Main Assembly Diagram
SKU: me_1814_293014003_mo8_main_assembly-group
Price: 1.00 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

ME 1814 - 2010 - 293014003/MO8 - Mountfield Main Assembly Diagram

Description

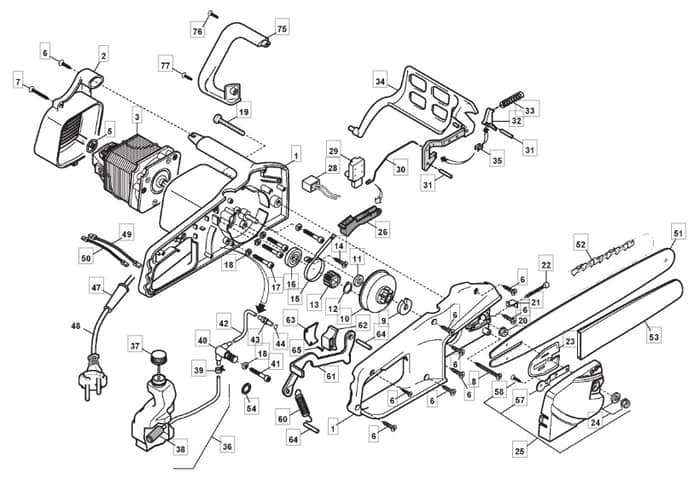

Mountfield ME 1814 Parts Diagram

Model Year - 2010

Model Type - Energy E 1.8

Art.N - 293014003/MO8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO383300012/0	Handle Assy. Red	Out of stock	£50.93 £42.44
3	MO8251900	Electric Motor	Out of stock	£109.20 £91.00
9	MO3614300	Side Plate	Out of stock	£5.26 £4.38
10	MO8562940	Gear Assy	Out of stock	£22.92 £19.10
12	MO3353020	Seeger Ring	Out of stock	£1.28 £1.07
13	MO3660580	Pinion	Out of stock	£4.57 £3.81
15	MO3614690	Brake Band	Out of stock	£9.91 £8.26
17	MO2135040	Screw	Out of stock	£1.26 £1.05
18	MO2312090	Flat Washer	Out of stock	£1.20 £1.00
20	MO2670120	Nut	Out of stock	£1.28 £1.07
22	MO2122270	Screw	Out of stock	£1.20 £1.00
24	MO8642820	Nut	Out of stock	£7.18 £5.98
26	MO3L3743497/1	Switch Lever	Out of stock	£3.43 £2.86
29	MO3211200	Switch	Out of stock	£8.02 £6.68
30	MO123835000/0	Switch Rod	Out of stock	£4.57 £3.81
33	MO3653720	Brake Spring	Out of stock	£3.04 £2.53
34	MO8563510	Handguard Assy With Lever	Out of stock	£20.69 £17.24
35	MO4252020	Chain Brake Link Assy	Out of stock	£4.69 £3.91
37	MO4252010	Tank Cap	Out of stock	£3.17 £2.64
38	MO8642570	Filter Intank Assy With Pipe	Out of stock	£89.52 £74.60
39	MO3320170	Hose Clamp	Out of stock	£1.20 £1.00
40	MO8750100	Oil Pump Assy	Out of stock	£26.74 £22.28
41	MO2123030	Screw	Out of stock	£1.20 £1.00
42	MO3786010	Oil Tube	Out of stock	£3.31 £2.76
51	MO123900205/0	Bar 14Inch	Out of stock	£22.60 £18.83
52	5043	Chain 14Inch	In stock	£9.54 £7.95
53	MO4181297	Chain Cover 14Inch	Out of stock	£1.97 £1.64
54	MO112604897/0	Elastic Washer	Out of stock	£1.39 £1.16
58	MO2123060	Screw	Out of stock	£1.20 £1.00
65	MO2123090	Screw	Out of stock	£1.54 £1.28
