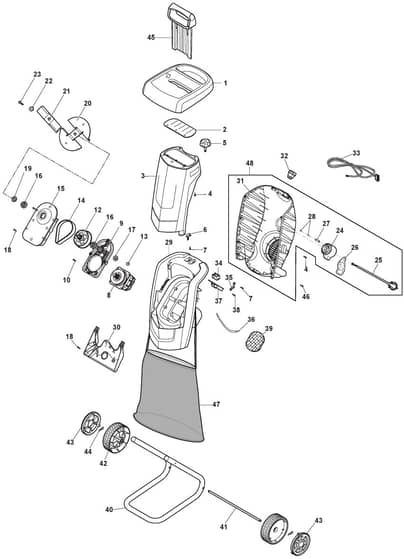

MCS 2200 - 2018-2019 - 290000223/M18 - Mountfield Shredder Main Assembly Diagram

MCS 2200 - 2018-2019 - 290000223/M18 - Mountfield Shredder Main Assembly Diagram
MCS 2200 - 2018-2019 - 290000223/M18 - Mountfield Shredder Main Assembly Diagram

Description

Mountfield MCS 2200 Parts Diagram

Model Year - 2018-2019

Model Type - BIO MASTER 2200

Art.N - 290000223/M18

Ref. Img. Part No. Details
  1 Handle. Black
Handle. Black
MO118802925/0 Out of stock
Handle. Black
£26.65 £22.21

  2 Guard
Guard
MO118802775/0 Out of stock
Guard
£5.89 £4.91

  5 Knob
Knob
MO118802747/0 Out of stock
Knob
£5.50 £4.58

  6 Key
Key
MO118802757/0 Out of stock
Key
£2.68 £2.23

  7 Screw
Screw
MO112728523/0 Out of stock
Screw
£1.48 £1.23

  10 Screw
Screw
MO118810099/0 Out of stock
Screw
£2.41 £2.01

  12 Pulley
Pulley
MO118802746/0 Out of stock
Pulley
£30.80 £25.67

  13 Seeger Ring
Seeger Ring
MO3353020 Out of stock
Seeger Ring
£1.40 £1.17

  14 Belt Pulley
Belt Pulley
MO118802774/0 Out of stock
Belt Pulley
£17.68 £14.73

  15 Engine Cover
Engine Cover
MO118802769/0 Out of stock
Engine Cover
£28.12 £23.43

  16 Bearing
Bearing
MO118802759/0 Out of stock
Bearing
£15.00 £12.50

  18 Screw
Screw
MO112728450/0 In stock
Screw
£1.48 £1.23

  19 Gasket
Gasket
MO118802760/0 Out of stock
Gasket
£1.48 £1.23

  20 Bottom Blade
Bottom Blade
MO118802764/0 Out of stock
Bottom Blade
£26.51 £22.09

  21 Blade
Blade
MO118802762/1 Out of stock
Blade
£23.30 £19.42

  22 Screw Gasket
Screw Gasket
MO118802755/0 Out of stock
Screw Gasket
£1.87 £1.56

  23 Screw
Screw
MO112793301/0 Out of stock
Screw
£1.48 £1.23

  24 Power Outlet
Power Outlet
MO118804844/0 Out of stock
Power Outlet
£6.16 £5.13

  25 Power Cord Assy
Power Cord Assy
MO118804845/0 Out of stock
Power Cord Assy
£9.91 £8.26

  25 Uk Adapter Not illustrated
Uk Adapter Not illustrated
MO118804849/0 Out of stock
Uk Adapter Not illustrated
£36.16 £30.13

  26 Power Hook
Power Hook
MO118804847/0 Out of stock
Power Hook
£1.48 £1.23

  27 Cable Holder
Cable Holder
MO118804846/0 Out of stock
Cable Holder
£1.48 £1.23

  28 Screw
Screw
MO112728099/1 Out of stock
Screw
£1.48 £1.23

  29 Housing. Black
Housing. Black
MO118802899/0 Out of stock
Housing. Black
£81.70 £68.08

  30 Pressure Plate
Pressure Plate
MO118802766/0 Out of stock
Pressure Plate
£50.62 £42.18

  32 Switch
Switch
MO118802750/0 Out of stock
Switch
£12.46 £10.38

  33 Switch Wires
Switch Wires
MO118802752/0 Out of stock
Switch Wires
£5.63 £4.69

  34 Safety Switch
Safety Switch
MO118802751/0 Out of stock
Safety Switch
£22.09 £18.41

  37 Electronic Card
Electronic Card
MO118802749/0 Out of stock
Electronic Card
£62.94 £52.45

  38 Screw
Screw
MO6981116 Out of stock
Screw
£1.40 £1.17

  39 Filter
Filter
MO118802754/0 Out of stock
Filter
£1.61 £1.34

  40 Support. Wheel
Support. Wheel
MO118802909/0 Out of stock
Support. Wheel
£65.62 £54.68

  41 Wheel Axle
Wheel Axle
MO118802756/0 Out of stock
Wheel Axle
£11.24 £9.37

  42 Wheel
Wheel
MO118802767/0 Out of stock
Wheel
£25.34 £21.12

  44 Cotter Pin
Cotter Pin
MO118802217/0 Out of stock
Cotter Pin
£1.74 £1.45

  45 Prodder
Prodder
MO118802773/0 Out of stock
Prodder
£13.66 £11.38

  46 Screw
Screw
MO112728519/0 Out of stock
Screw
£1.34 £1.12

  47 Collecting Bag
Collecting Bag
MO118805063/0 Out of stock
Collecting Bag
£52.22 £43.52

  48 Cover And Power Cord Assembly [Grey]
Cover And Power Cord Assembly [Grey]
MO118805158/0 Out of stock
Cover And Power Cord Assembly [Grey]
£67.62 £56.35


Description

Mountfield MCS 2200 Parts Diagram

Model Year - 2018-2019

Model Type - BIO MASTER 2200

Art.N - 290000223/M18
