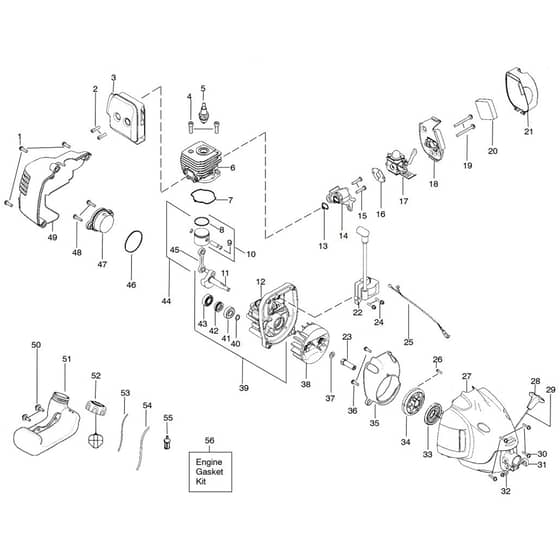

McCulloch TRIM MAC ST - 2010-03 - Engine (3) Parts Diagram

Name: McCulloch TRIM MAC ST - 2010-03 - Engine (3) Parts Diagram
SKU: trim_mac_st_2010_03_engine_3_-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch TRIM MAC ST - 2010-03 - Engine (3) Parts Diagram

Description

McCulloch TRIM MAC ST - 2010-03 - Engine (3) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV530 01 58-80 Out of stock	Screw	£1.63 £1.36
2	HV530 05 89-82 Out of stock	Bolt	£2.08 £1.73
3	HV530 05 98-25 Out of stock	Assembly	£64.39 £53.66
4	HV530 01 59-53 Out of stock	Screw	£2.08 £1.73
5	9411 In stock	Spark Plug	£2.52 £2.10
6	HV530 01 25-41 Out of stock	Cylinder	£50.14 £41.78
8	HV545 15 40-01 Out of stock	Piston Ring	£5.86 £4.88
9	HV530 01 51-62 Out of stock	Circlip	£1.93 £1.61
10	HV530 07 18-33 Out of stock	Kit	£24.73 £20.61
12	HV530 01 25-82 Out of stock	Crankcase	£62.76 £52.30
13	HV530 07 17-50 Out of stock	Gasket Kit	£20.59 £17.16
14	HV530 05 75-47 Out of stock	Adapter	£14.26 £11.88
17	HV530 07 18-11 Out of stock	Carburettor	£58.31 £48.59
19	HV530 01 64-29 Out of stock	Screw	£2.52 £2.10
20	HV530 03 65-75 Out of stock	Air Filter	£7.04 £5.87
22	HV501 09 28-01 Out of stock	Ignition Coil	£48.56 £40.47
23	HV530 02 79-53 Out of stock	Coupling	£13.74 £11.45
30	HV530 01 63-86 Out of stock	Screw	£1.39 £1.16
33	HV545 00 80-11 Out of stock	Return Spring	£15.53 £12.94
34	HV545 08 18-52 Out of stock	Kit	£18.67 £15.56
35	HV530 05 75-48 Out of stock	Baffle	£7.06 £5.88
38	HV545 22 17-01 Out of stock	Flywheel	£60.50 £50.42
42	HV530 01 92-64 Out of stock	Seal	£5.06 £4.22
43	HV530 03 21-25 Out of stock	Bearing	£9.24 £7.70
45	HV530 04 98-17 Out of stock	Connecting Rod	£18.60 £15.50
47	HV530 05 79-54 Out of stock	Plug	£6.01 £5.01
50	HV530 01 64-45 Out of stock	Screw Fuel Tank Retainer	£2.08 £1.73
51	HV545 10 37-02 Out of stock	Fuel Tank Assy	£48.83 £40.69
52	HV578 93 16-05 Out of stock	Assy Fuel Cap W/Retainer	£8.50 £7.08
53	HV530 06 92-47 In stock	Hose	£6.84 £5.70
54	HV530 06 92-16 Out of stock	Fuel Hose	£10.25 £8.54
55	HV530 09 56-46 Out of stock	Filter	£6.85 £5.71
