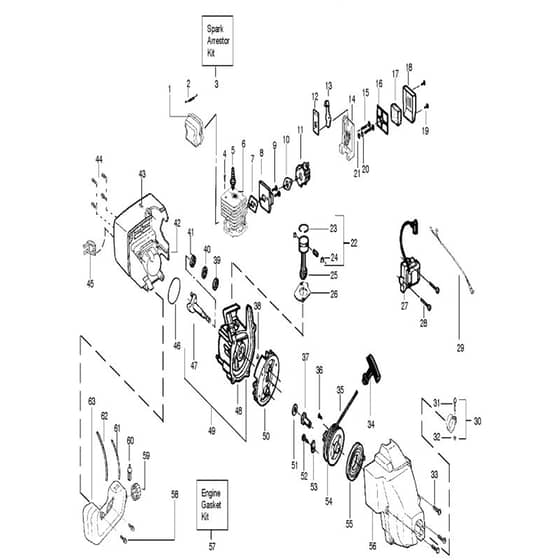

McCulloch TM251 - 952715438 - 2009-04 - Engine (1) Parts Diagram

Name: McCulloch TM251 - 952715438 - 2009-04 - Engine (1) Parts Diagram
SKU: tm251_952715438_2009_04_engine_1_-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

McCulloch TM251 - 952715438 - 2009-04 - Engine (1) Parts Diagram

Description

McCulloch TM251 - 952715438 - 952715448 - 2009-04 - Engine (1) Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV530 07 13-96 Out of stock	Muffler	£42.91 £35.76
4	HV530 01 59-53 Out of stock	Screw	£2.08 £1.73
8	HV530 05 76-34 Out of stock	Adapter	£7.68 £6.40
9	HV530 01 60-14 Out of stock	Screw	£1.84 £1.53
10	HV530 07 13-63 Out of stock	Gasket Kit	£16.20 £13.50
12	HV530 03 87-47 Out of stock	Plate	£3.47 £2.89
13	HV530 03 86-86 Out of stock	Choke Shutter	£3.13 £2.61
15	HV530 01 64-28 Out of stock	Screw	£2.93 £2.44
17	HV530 03 65-75 Out of stock	Air Filter	£7.04 £5.87
19	HV530 01 63-49 Out of stock	Screw	£1.39 £1.16
20	HV530 01 58-52 Out of stock	Spacer	£2.18 £1.82
21	HV530 01 52-54 Out of stock	Spring	£2.78 £2.32
22	HV530 07 18-33 Out of stock	Kit Piston	£24.73 £20.61
23	HV545 15 40-01 Out of stock	Piston Ring	£5.86 £4.88
24	HV530 01 51-62 Out of stock	Circlip	£1.93 £1.61
25	HV530 04 98-17 Out of stock	Connecting Rod	£18.60 £15.50
27	HV530 03 91-63 Out of stock	Ignition Module	£52.58 £43.82
30	HV530 05 63-65 Out of stock	Kit	£4.94 £4.12
33	HV530 01 63-86 Out of stock	Screw	£1.39 £1.16
34	HV530 02 75-69 Out of stock	Starter Handle	£4.76 £3.97
35	HV530 06 92-32 Out of stock	Starter Rope	£4.20 £3.50
37	HV530 03 86-04 Out of stock	Drive Coupling	£11.70 £9.75
40	HV530 01 92-64 Out of stock	Seal	£5.06 £4.22
41	HV530 03 21-25 Out of stock	Bearing	£9.24 £7.70
43	HV530 01 59-34 Out of stock	Screw	£1.63 £1.36
50	HV530 05 41-14 Out of stock	Starter Device	£30.40 £25.33
52	HV530 01 57-75 Out of stock	Screw	£1.84 £1.53
53	HV530 02 75-23 Out of stock	Retainer	£3.91 £3.26
54	HV530 07 17-86 Out of stock	Starter Pulley	£20.69 £17.24
55	HV545 00 80-10 Out of stock	Return Spring	£14.05 £11.71
59	HV530 01 43-47 In stock	Tank	£8.78 £7.32
60	HV530 09 56-46 In stock	Filter	£6.85 £5.71
61	HV530 06 92-47 In stock	Hose	£6.84 £5.70
62	HV530 06 92-16 Out of stock	Fuel Hose	£10.25 £8.54
